NGP 5VDKB 48" DKB-finish Aluminum Vinyl Door Shoe provides an economical and efficient solution for enhancing restroom partitions. Crafted from durable aluminum alloy 6063 in T5 temper, this door shoe features a thermoplastic polymer made from polyvinyl chloride (PVC) that incorporates an environmentally friendly bio-based plasticizer, offering both resilience and sustainability. Designed for a temperature range of 0°F to 140°F, the NGP 5VDKB is flame resistant and moisture resistant, making it ideal for high-traffic commercial environments. The vinyl is elegantly finished in black, complemented by a sophisticated dark bronze exterior, ensuring it blends seamlessly with various decor styles. Installation is straightforward, thanks to the included #6 x 3/4" stainless steel sheet metal screws and slotted screw holes that allow for easy adjustments. This door shoe is certified by UL for multiple fire safety standards, ensuring compliance with both NFPA 80 and NFPA 252 regulations. Its robust construction helps prevent oxidative degradation, maintaining its aesthetic and functional integrity over time. With its combination of durability, safety features, and stylish design, the NGP 5VDKB 48" door shoe is an excellent choice for those seeking reliable restroom partition hardware.

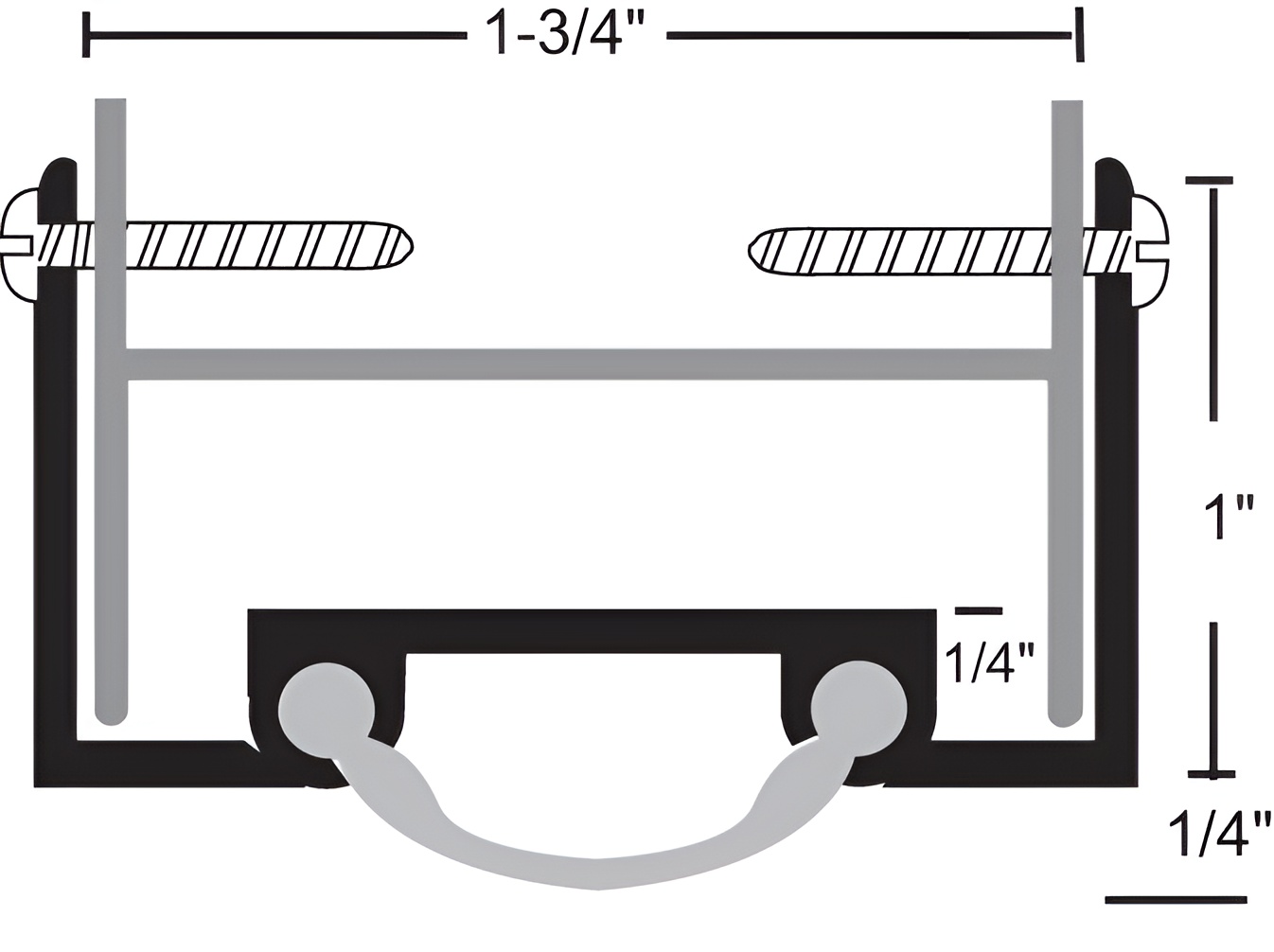

48" DKB-finish Aluminum Vinyl Door Shoe
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Color: Vinyl is black
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Dark bronze finish
Finish Description: Dark Bronze
Fire Rated: Flame resistant
Length: 48.0"
Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Moisture Resistant: YES
Restrictions: Fragile
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Subtype: Weatherstrip
Temperature Range: Temperature range 0°F to 140°F
Type: Hinges and Pivots
