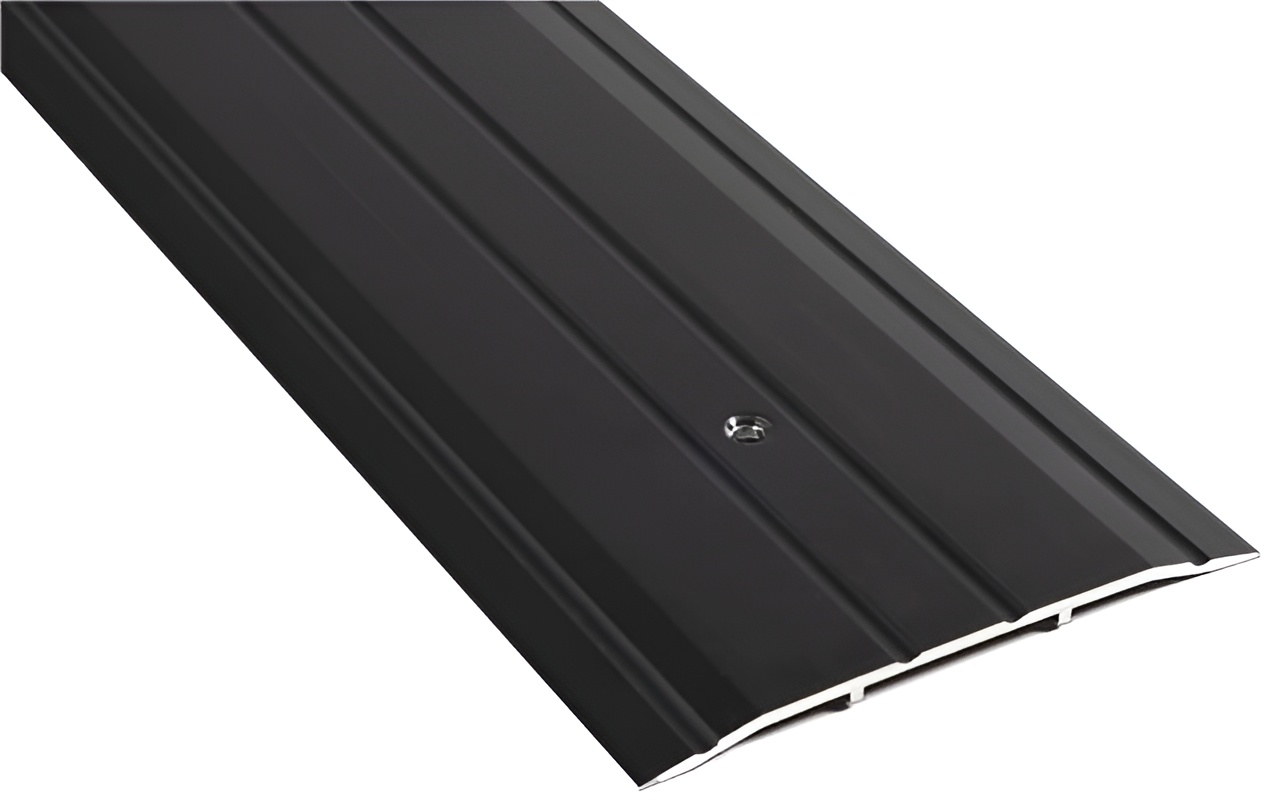

NGP 613DKB 72" DKB-finish Aluminum Saddle Threshold combines functionality with durability, making it an essential addition to any commercial restroom setting. Constructed from high-quality aluminum alloy 6063 in T5 temper, this threshold is designed to withstand the rigors of daily use, featuring a robust 1,000 lb. load capacity certified by BHMA to ANSI/BHMA A156.21 standards. With dimensions of 72" in length, 6" in width, and a height of just 1/4", this threshold offers a sleek and fluted top that not only enhances aesthetics but also ensures smooth transitions between spaces. The dark bronze finish adds a touch of elegance, making it suitable for various design schemes. Designed for accessibility, the NGP 613DKB meets ADA compliance standards, ensuring barrier-free access. Each unit comes with #10 x 1-1/2" FH zinc-plated wood screws for easy installation. Weighing only .88 lbs./ft., this threshold is both lightweight and sturdy, making it an ideal choice for high-traffic environments. For those prioritizing quality and performance, the NGP 613DKB is an excellent investment that meets rigorous safety and building codes, ensuring lasting reliability and usability in any professional setting.
Attributes
Alternate Codes: 613DKB 72IN, 613DKB72IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 6" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 72.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 613
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .88 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 6"
