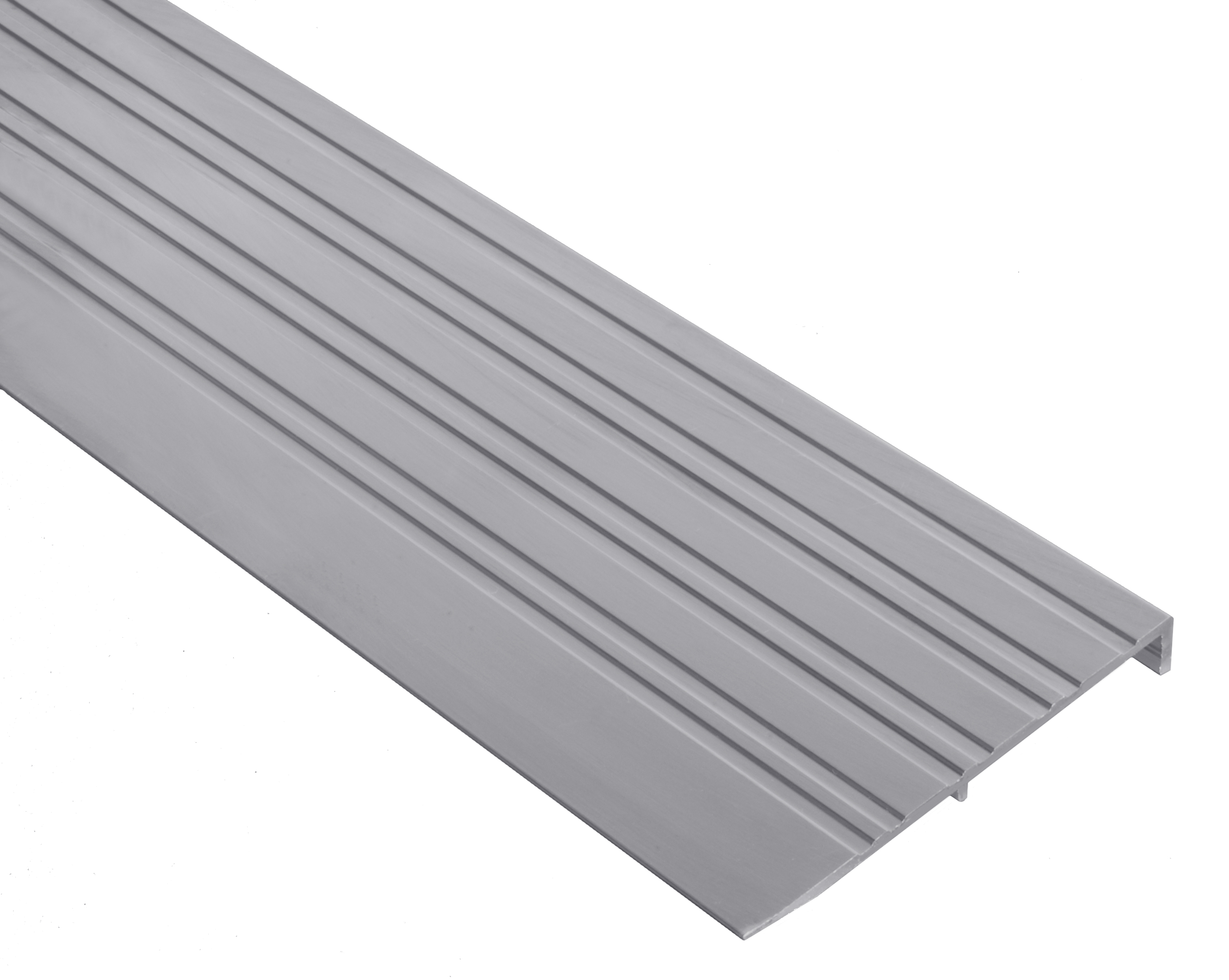

NGP 654 36" 1/2" x 4" Aluminum Ramp offers a durable and compliant solution for enhancing accessibility in commercial restroom environments. Made from high-quality aluminum alloy 6063 with a T5 temper, this ramp features a fluted top for improved traction, ensuring safety in high-traffic areas. Measuring 4" wide and 1/2" tall, it is designed to create a smooth transition for wheelchair users and others requiring assistance, meeting ADA Standards for Accessible Design. With a typical wall thickness of .125 inches and a lightweight design at just .53 lbs./ft., the NGP 654 is easy to handle and install. The ramp comes with #10 FH zinc plated wood screws included, simplifying the installation process. Its mill finish provides a sleek, professional appearance that complements various restroom designs. Certified by UL to meet stringent fire safety standards, this ramp is suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. Moreover, it complies with ANSI/BHMA standards, ensuring it can withstand up to 1,000 lbs. of load. Choose NGP 654 for a reliable, code-compliant solution that enhances accessibility and safety in your facilities.
36" 1/2" x 4" Aluminum Ramp
Dimensions: 4" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Mill finish
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Wall Thickness: Typical wall thickness .125
Weight: Weight: .53 lbs./ft.
