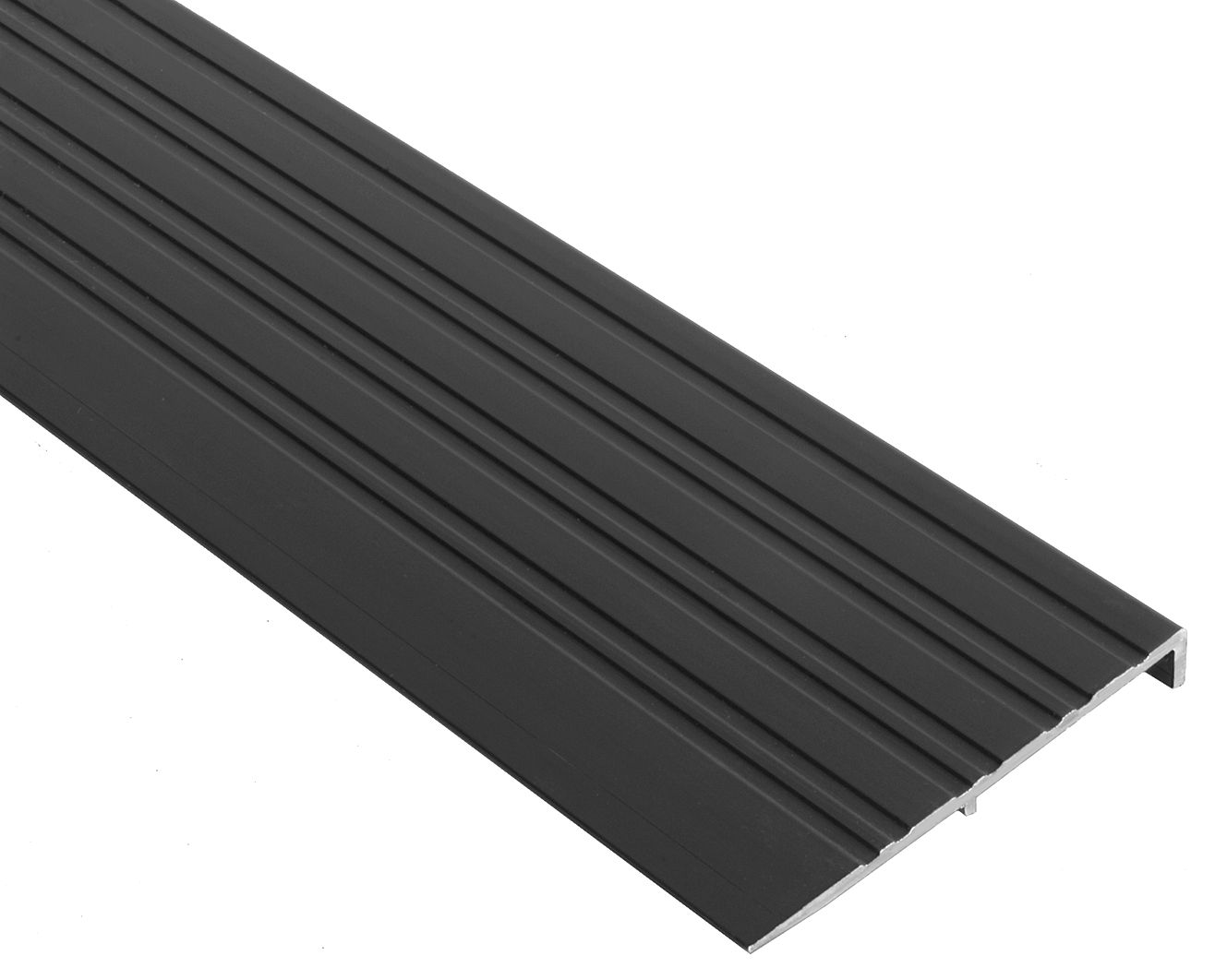

NGP 654DKB 48" 1/2" x 4" DKB-finish Aluminum Ramp is an essential addition to any commercial restroom, designed to ensure accessibility and safety. Constructed from durable aluminum alloy 6063 with a T5 temper, this ramp measures 4 inches wide and 1/2 inch tall, making it an ideal solution for smooth transitions between surfaces. The ramp features a fluted top that enhances traction, ensuring stability for users. Its typical wall thickness of .125 inches contributes to its robust design while maintaining a lightweight profile at just .53 lbs. per foot. This product is not only functional but also aesthetically pleasing, available in a sophisticated dark bronze finish that complements various interior designs. Included with the ramp are #10 FH zinc plated wood screws for easy installation. Importantly, the NGP 654DKB meets ADA compliance standards, providing barrier-free access and enhancing the usability of your space. It is certified by UL to ensure safety, complying with NFPA 80 and NFPA 252 standards for fire doors rated up to 3 hours. Choose the NGP 654DKB for a reliable, stylish, and compliant solution to your restroom accessibility needs.
48" 1/2" x 4" DKB-finish Aluminum Ramp
Dimensions: 4" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Dark bronze finish
Flange Material: Dark Bronze Aluminum
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws, DKB Finish
Length: 48.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Wall Thickness: Typical wall thickness .125
Weight: Weight: .53 lbs./ft.
