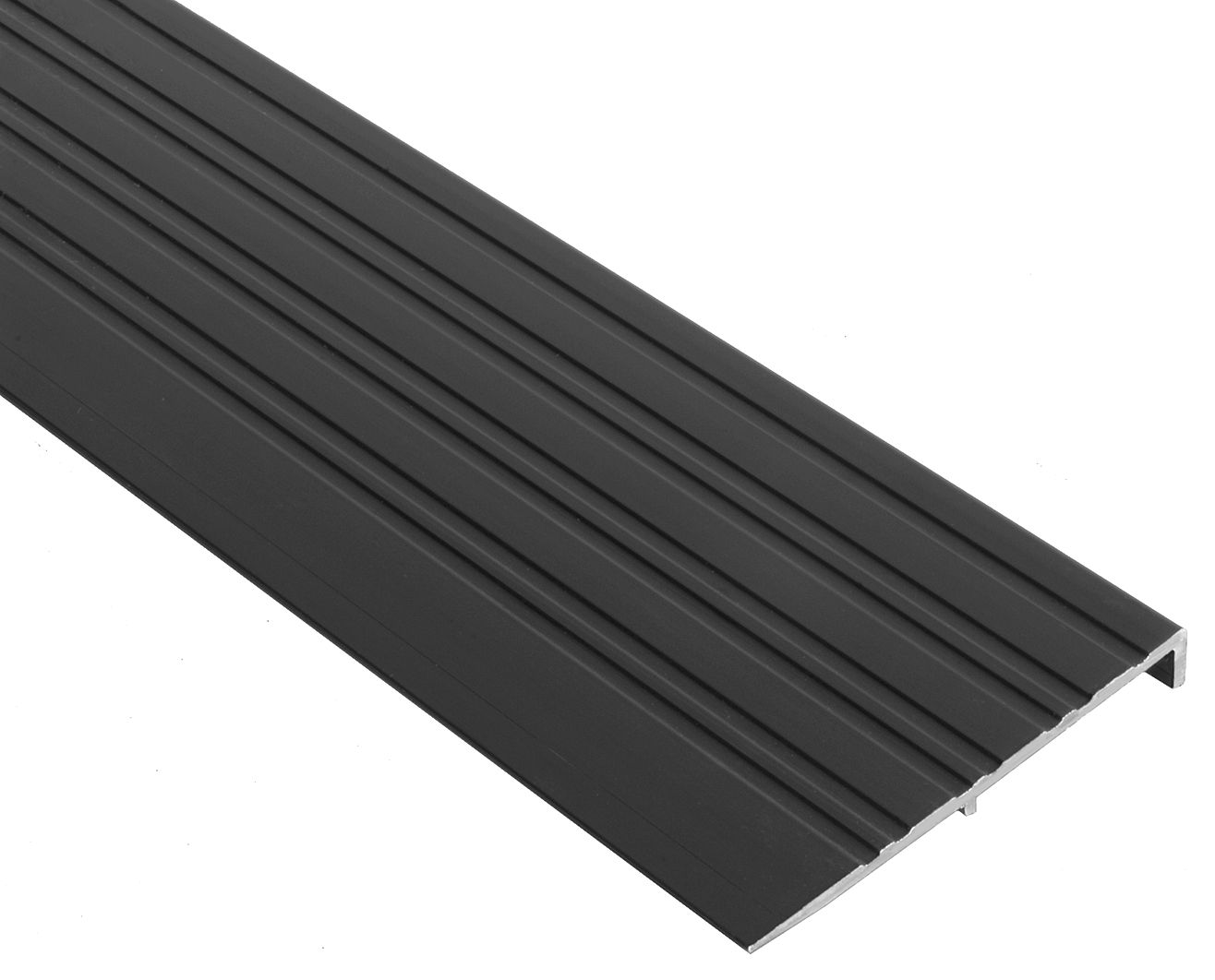

NGP 654DKB 72" 1/2" x 4" DKB-finish Aluminum Ramp is expertly designed to enhance accessibility in commercial restroom settings. Crafted from durable aluminum alloy 6063 with a T5 temper, this ramp combines strength and lightweight properties, weighing just 0.53 lbs./ft. Its dimensions of 4 inches wide and 1/2 inch tall make it an ideal solution for creating a barrier-free environment. Featuring a fluted top surface for enhanced traction, the NGP 654DKB is ADA compliant, meeting the rigorous requirements outlined by the ADA Standard for Accessible Design. This ramp is not only functional but also aesthetically pleasing, with a dark bronze finish that complements various restroom decors. Included with the ramp are #10 FH zinc plated wood screws for straightforward installation. The typical wall thickness of 0.125 inches adds to its robust design, ensuring longevity and reliability in high-traffic areas. Certified by UL for fire safety standards, the NGP 654DKB is suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. This makes it a versatile choice for both safety and accessibility in any commercial restroom project.
Attributes
Dimensions: 4" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Dark bronze finish
Flange Material: Dark Bronze Aluminum
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws, DKB Finish
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Wall Thickness: Typical wall thickness .125
Weight: Weight: .53 lbs./ft.
