NGP 655 36" Mill Aluminum Offset Threshold combines durability and functionality for commercial restroom applications. Constructed from robust aluminum alloy 6063 with a T5 temper, this threshold measures 5-1/2" wide and stands 3/4" tall, making it an ideal choice for various installations. The fluted top design not only enhances aesthetics but also provides extra traction, ensuring safety in high-traffic areas. Weighing just 0.84 lbs. per foot, the NGP 655 is lightweight yet sturdy enough to handle extensive use. The typical wall thickness of 0.125" adds to its strength, while the mill finish gives it a sleek, modern look that complements any restroom decor. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws, facilitating easy installation. For those opting for dark bronze aesthetics, this threshold is also available in a DKB finish. Furthermore, the NGP 655 is UL certified for fire door applications, complying with NFPA 80 and NFPA 252, ensuring safety and reliability in emergency situations. ANSI/BHMA certified, it meets rigorous standards, making it a trustworthy option for building professionals and discerning homeowners alike. This threshold is designed to provide lasting performance and peace of mind in commercial environments.
36" Mill Aluminum Offset Threshold, 3/4" x 5-1/2"

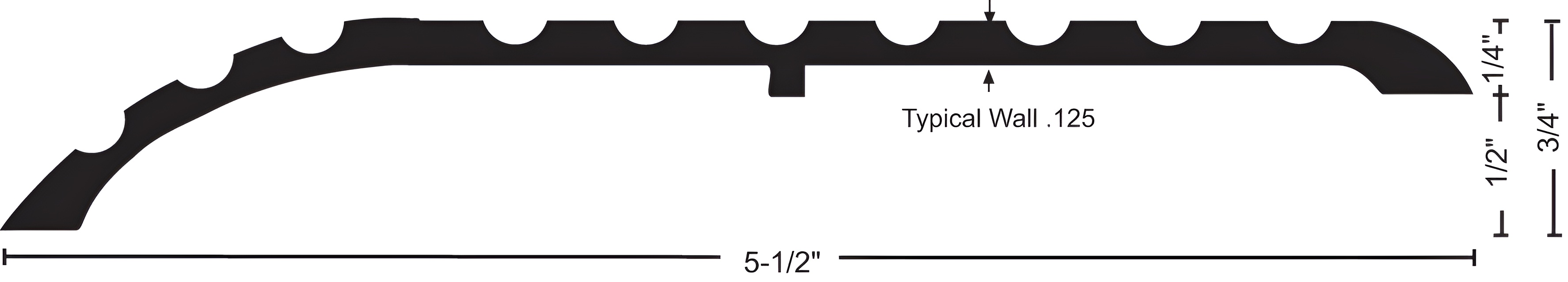

Dimensions: 5-1/2" wide x 3/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .84 lbs./ft.
