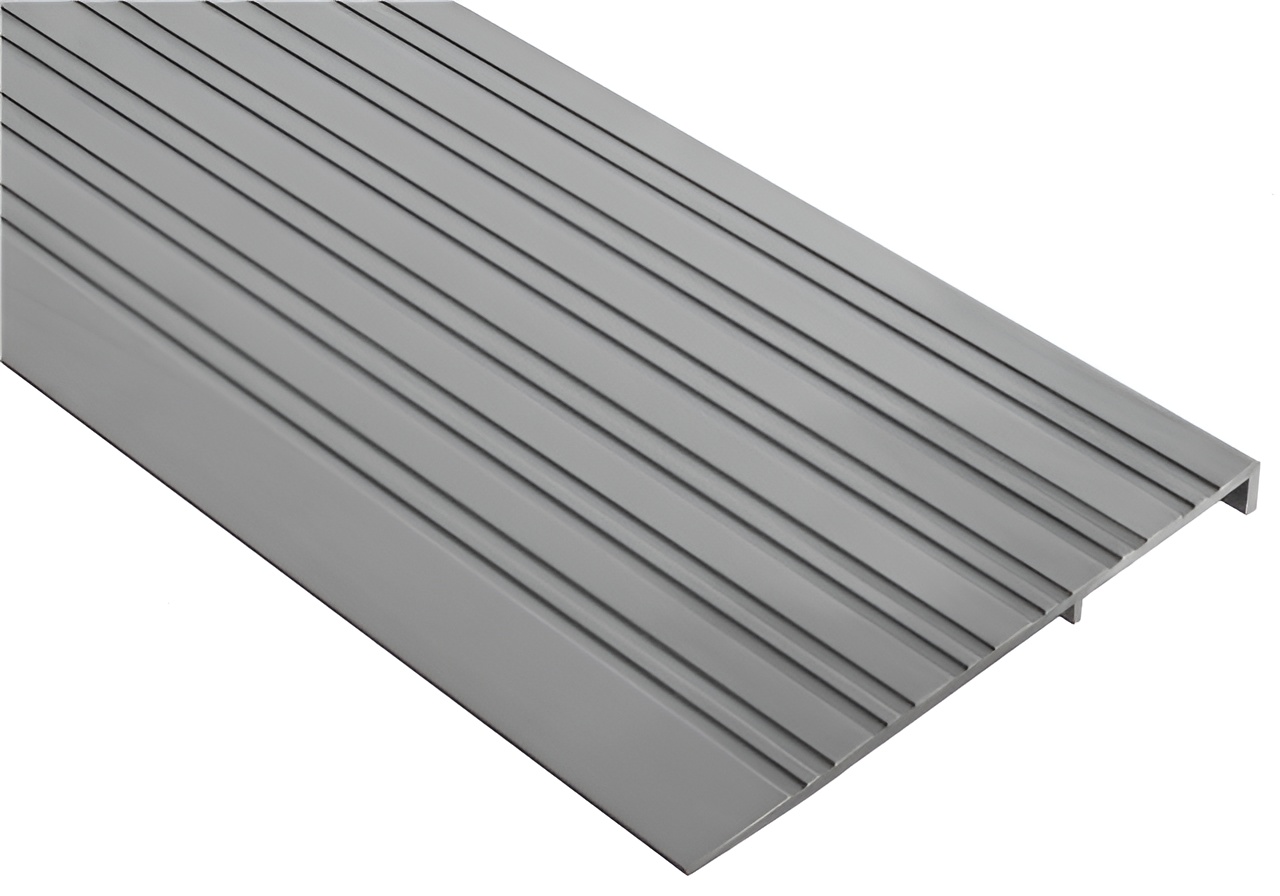

NGP 657 36" 1/2" x 6" Aluminum Ramp offers a robust solution for creating accessible pathways in commercial restroom environments. Made from durable aluminum alloy 6063 with a T5 temper, this ramp measures 6 inches wide and stands at a height of 1/2 inch, ensuring a smooth transition for all users. The fluted top design not only enhances grip but also adds a touch of sophistication to your installations. Weighing just 0.86 lbs. per foot, this ramp is lightweight yet sturdy, making it an ideal choice for both new constructions and renovations. It features a typical wall thickness of .125 inches, providing reliable strength while remaining easy to handle. Each ramp comes with #10 FH zinc-plated wood screws for straightforward installation, ensuring you have everything needed to secure it properly. Certified to meet multiple safety standards, including ADA compliance and UL certifications for fire door applications, the NGP 657 ramp ensures peace of mind in both functionality and safety. Its mill finish adds a clean, professional look that fits seamlessly into any restroom environment. Perfect for building professionals, this ramp not only meets accessibility needs but also adheres to stringent building codes.
36" 1/2" x 6" Aluminum Ramp
Dimensions: 6" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Mill finish
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Wall Thickness: Typical wall thickness .125
Weight: Weight: .86 lbs./ft.
