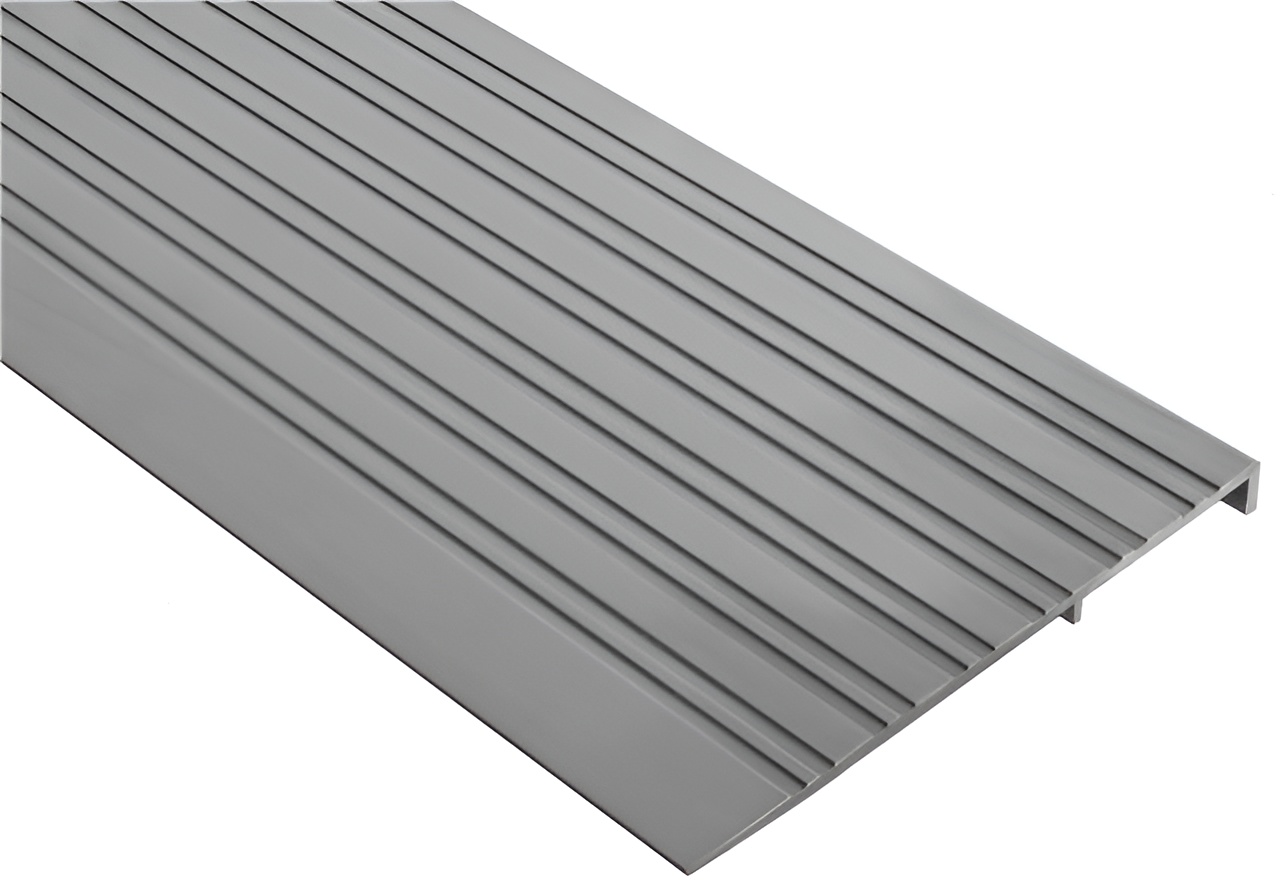

NGP 657 48" 1/2" x 6" Aluminum Ramp is designed to enhance accessibility while ensuring durability and compliance with industry standards. Crafted from high-quality aluminum alloy 6063 with T5 temper, this ramp features a fluted top for added traction, making it an ideal solution for barrier-free thresholds. Measuring 6 inches wide and 1/2 inch tall, it accommodates various applications while maintaining a typical wall thickness of .125 inches. Weighing just .86 lbs. per foot, the NGP 657 is lightweight yet robust, making installation straightforward. Each ramp comes with #10 FH zinc-plated wood screws for easy fastening. The mill finish not only offers a sleek appearance but also ensures long-lasting performance. This product is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1. Additionally, it has been certified by UL for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, ensuring safety and reliability. The NGP 657 is also ANSI/BHMA certified, having passed rigorous load tests, further proving its strength and capability in commercial restroom settings.
48" 1/2" x 6" Aluminum Ramp
Commercial Residential: Commercial
Dimensions: 6" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Mill finish
Finish Family: Matte Silver
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Installation: Commercial
Length: 48.0"
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Product Height: 0.5"
Product Length: 48"
Product Width: 6"
Restrictions: master-note
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Unit of Measure: Each
Wall Thickness: Typical wall thickness .125
Weight: Weight: .86 lbs./ft.
