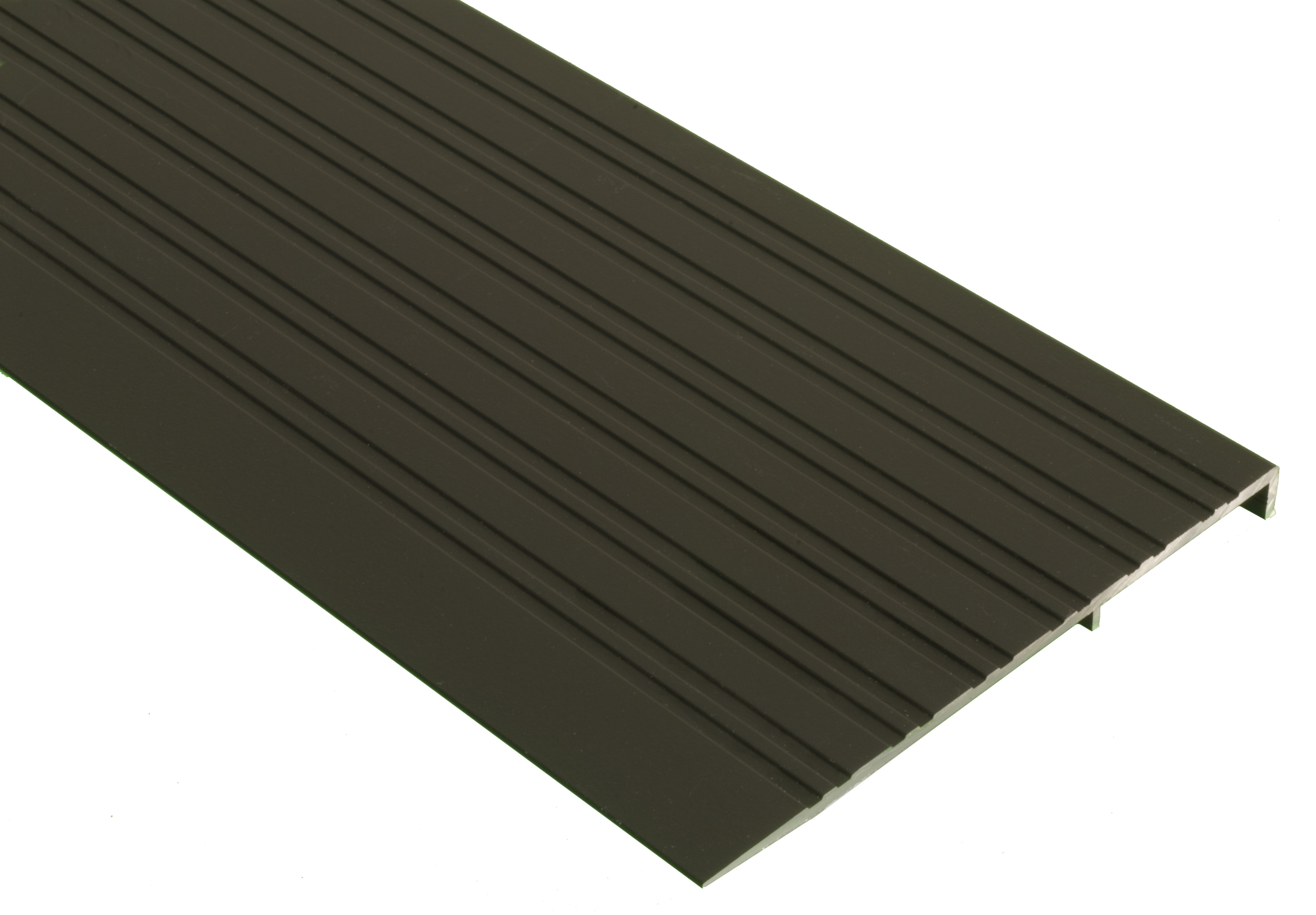

NGP 657DKB 36" 1/2" x 6" DKB-finish Aluminum Ramp offers a reliable and stylish solution for barrier-free access. Crafted from aluminum alloy 6063 with a T5 temper, this ramp features a sturdy construction with a typical wall thickness of .125 inches. Measuring 6 inches wide and 1/2 inch tall, its fluted top ensures slip resistance while enhancing aesthetic appeal. This ramp is designed to meet ADA compliance standards, making it an excellent choice for accessible design in commercial and residential settings. Its dark bronze finish not only complements various decors but also provides durability against wear and tear. Weighing just .86 lbs. per foot, the ramp is lightweight yet robust, allowing for easy installation and handling. Included with the ramp are #10 FH zinc plated wood screws, simplifying the installation process. Certified by UL to ANSI/UL10B and other fire safety standards, it is suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. The NGP 657DKB ramp combines functionality with safety, making it an indispensable addition to any restroom partition hardware setup.
Attributes
Category: Weatherization
Commercial Residential: Commercial
Dimensions: 6" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Dark bronze finish
Finish Code: DKB
Finish Description: Dark Bronze
Finish Family: Dark Bronze
Flange Length: 36"
Flange Material: Dark Bronze Aluminum
Flange Thickness: 1/2"
Flange Width: 6"
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws, DKB Finish
Hazardous Material: NO
Installation: Commercial
Length: 36.0"
Manufacturer Warranty: Limited 5 Year Warranty
Material: Aluminum alloy 6063, T5 temper
No Of Inners: 1
Order_ Qty: 1
Pack Qty: 1
Projection: 1/2"
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subcategory: Thresholds
Subtype: Thresholds
Type: Interlocking Ramps
Unit of Measure: Each
Wall Thickness: Typical wall thickness .125
Weight: Weight: .86 lbs./ft.
