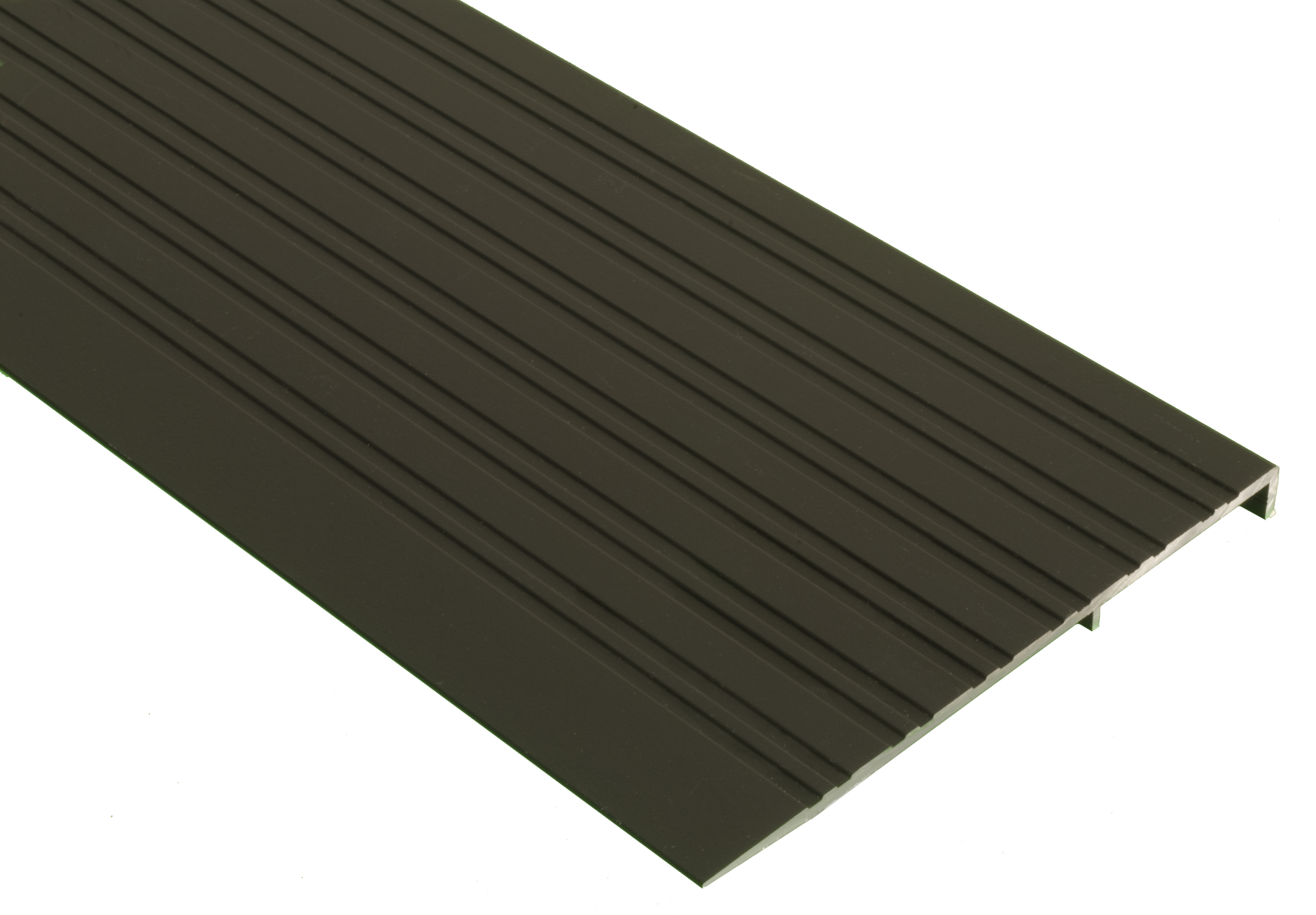

NGP 657DKB 48" 1/2" x 6" DKB-finish Aluminum Ramp offers a robust and functional solution for accessible restroom environments. Crafted from durable aluminum alloy 6063 with a T5 temper, this ramp is designed to meet the demands of high-traffic areas while ensuring compliance with ADA standards for accessible design. Measuring 6 inches wide and 1/2 inch tall, the ramp features a fluted top, providing both safety and aesthetic appeal. Its typical wall thickness of .125 inches contributes to its strength, while the dark bronze finish adds an elegant touch to any restroom decor. Weighing just .86 lbs. per foot, it is lightweight yet sturdy. Included with the ramp are #10 FH zinc-plated wood screws for easy installation, making it a convenient choice for building professionals and knowledgeable homeowners alike. This product is certified by UL and complies with NFPA standards for fire door applications, ensuring maximum safety in critical areas. The NGP 657DKB ramp is a practical investment for enhancing accessibility and overall functionality in commercial restroom settings.
48" 1/2" x 6" DKB-finish Aluminum Ramp
Dimensions: 6" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Dark bronze finish
Flange Material: Dark Bronze Aluminum
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws, DKB Finish
Length: 48.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Wall Thickness: Typical wall thickness .125
Weight: Weight: .86 lbs./ft.
