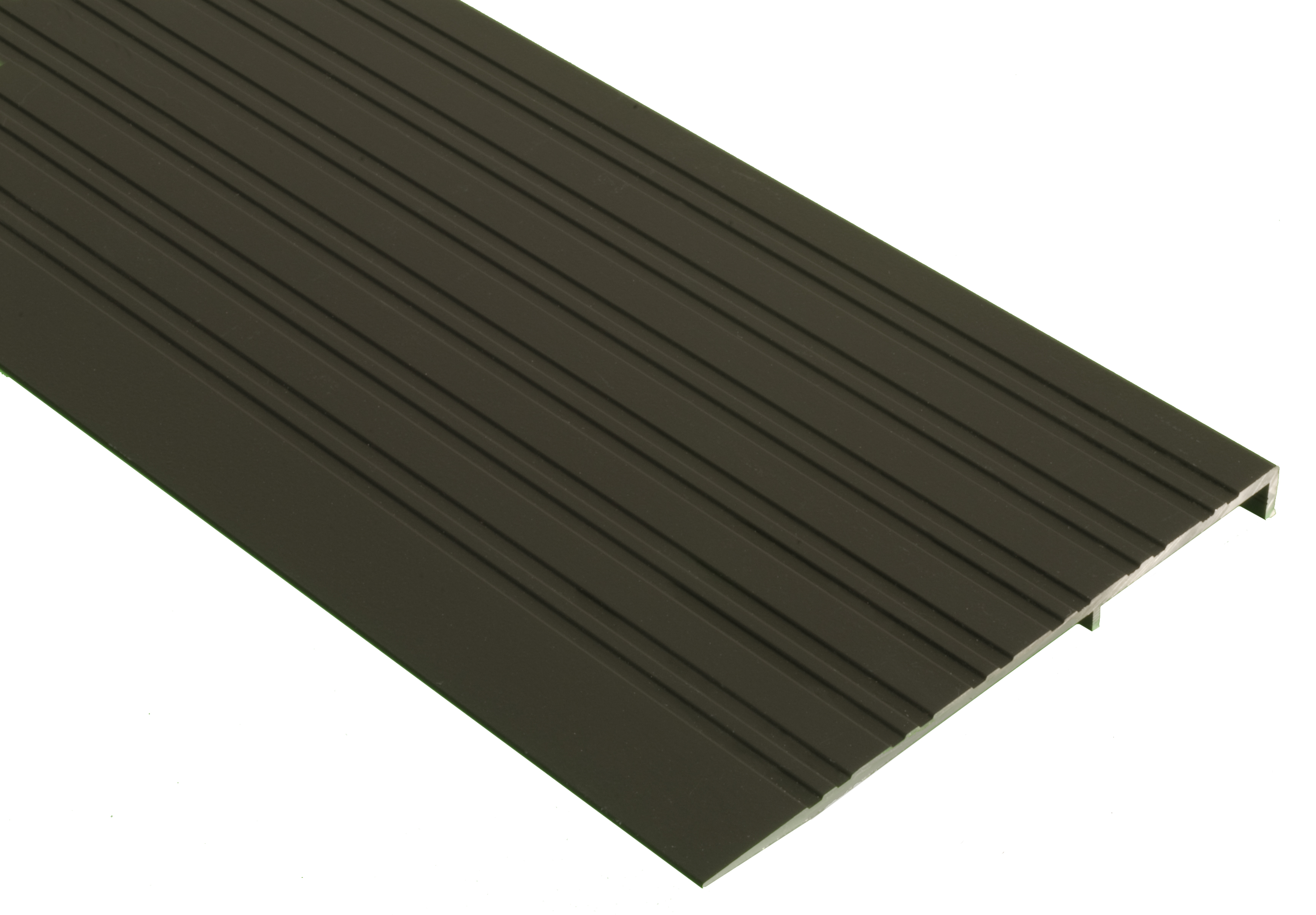

NGP 657DKB 72" 1/2" x 6" DKB-finish Aluminum Ramp is the ideal solution for ensuring accessibility in commercial spaces. Crafted from durable aluminum alloy 6063 with T5 temper, this ramp measures 6 inches wide and stands 1/2 inch tall, making it compliant with ADA standards for barrier-free thresholds. The fluted top provides not only aesthetic appeal but also enhanced traction, ensuring safety for all users. Weighing just 0.86 lbs./ft., the ramp is lightweight yet sturdy, featuring a typical wall thickness of .125 inches. The dark bronze finish adds a sleek touch that seamlessly fits into various environments. Included with the ramp are #10 FH zinc plated wood screws for easy installation, allowing for a quick setup without the need for additional fasteners. This product is UL certified for fire door applications, complying with NFPA 80 and ANSI/UL standards, providing peace of mind when it comes to safety. Whether you are outfitting a restroom, office, or public building, the NGP 657DKB ramp delivers both functionality and style, making it a must-have for any commercial restroom partition project.
Attributes
Dimensions: 6" wide x 1/2" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Dark bronze finish
Flange Material: Dark Bronze Aluminum
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws, DKB Finish
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ADA, UL Classified UL10C, ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Interlocking Ramps
Wall Thickness: Typical wall thickness .125
Weight: Weight: .86 lbs./ft.
