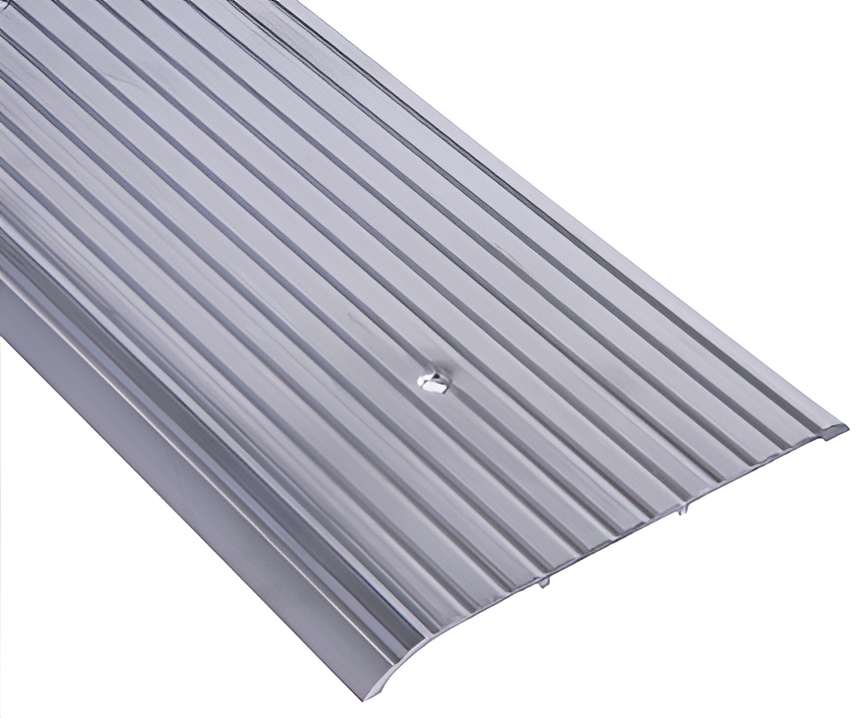

NGP 659 36" Mill Aluminum Offset Threshold is designed for durability and compliance in commercial settings. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 7" wide and stands 1/2" tall, ensuring robust support for a variety of applications. The fluted top provides added traction, enhancing safety in busy restrooms. Weighing just 0.89 lbs. per foot, the NGP 659 is lightweight yet sturdy, making installation straightforward. It comes with #10 x 1-1/2" FH zinc-plated wood screws, simplifying the setup process. Available in a mill finish, it blends seamlessly with diverse architectural styles while ensuring a polished appearance. This threshold is ADA compliant, meeting the requirements for accessible design under the ADA Standard and ICC/ANSI A117.1. Moreover, it is certified by UL for fire door applications, capable of withstanding up to 3 hours for hollow metal fire doors and 90 minutes for wood fire doors, adhering to NFPA 80 and NFPA 252 standards. With its functional design and rigorous certification, the NGP 659 36" Mill Aluminum Offset Threshold is a reliable choice for enhancing the safety and accessibility of any commercial restroom.
36" Mill Aluminum Offset Threshold, 1/2" x 7"
Dimensions: 7" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1 1/2" FH Zinc Wood Screws
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C, ANSI/BHMA A156.21
Subtype: Threshold
Type: Offset-Saddle Threshold
Wall Thickness: Typical Wall Thickness: .125"
Weight: Weight: .89 lbs./ft.
