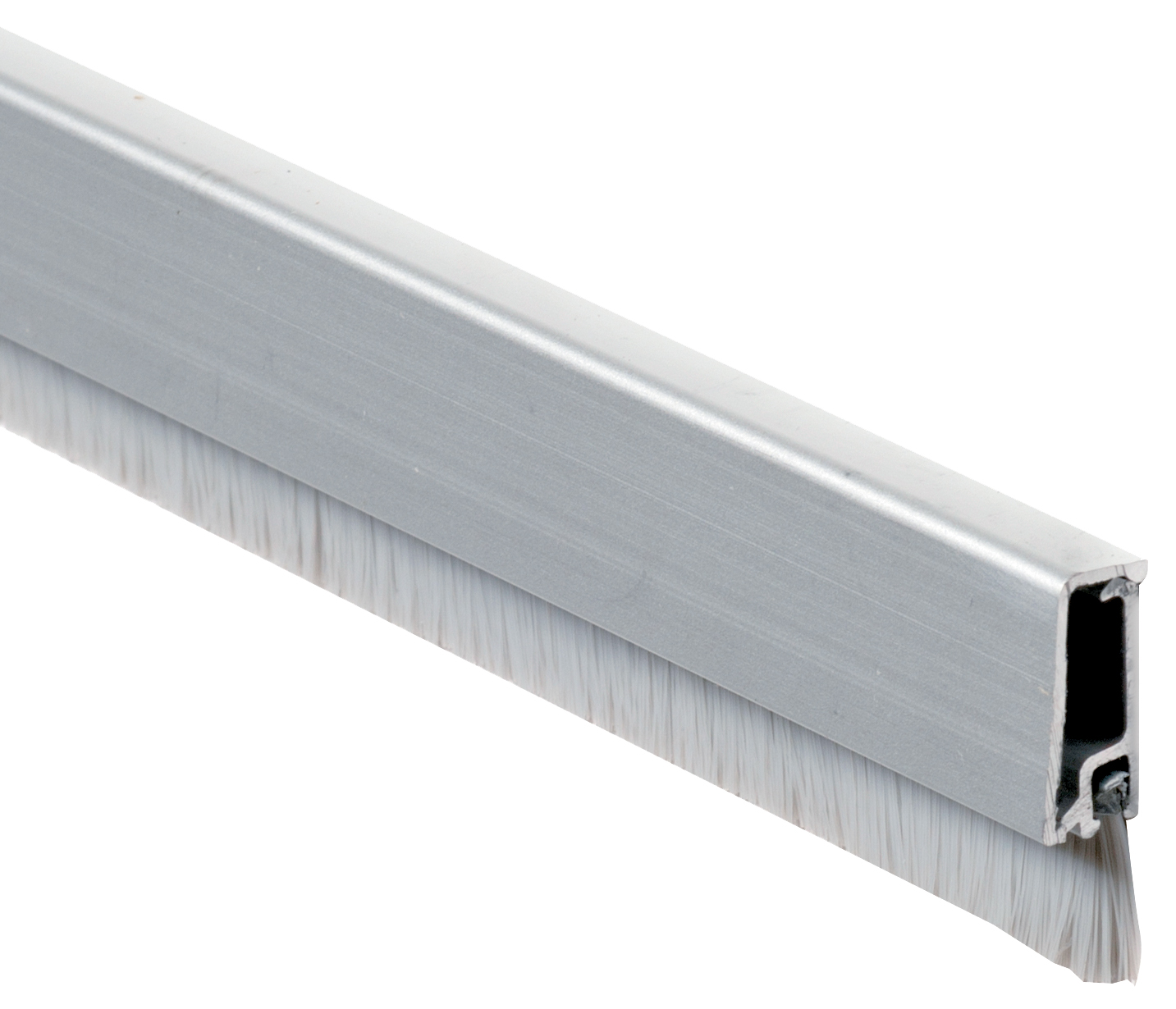

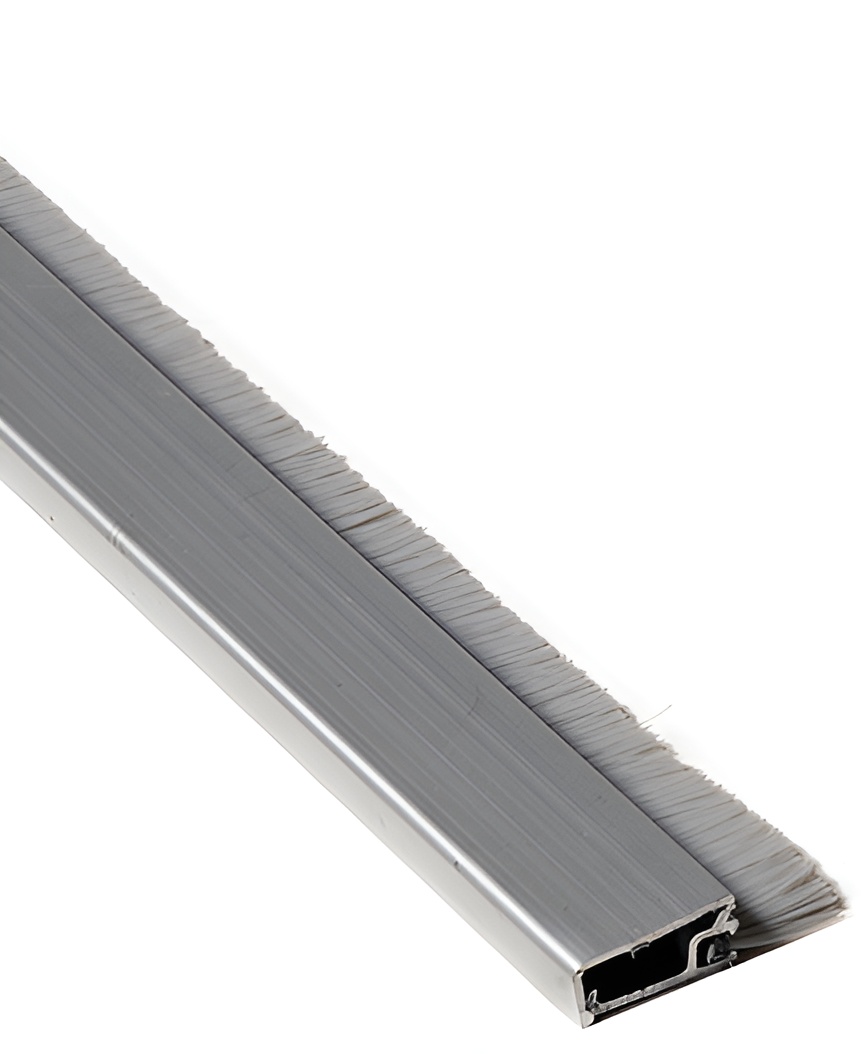

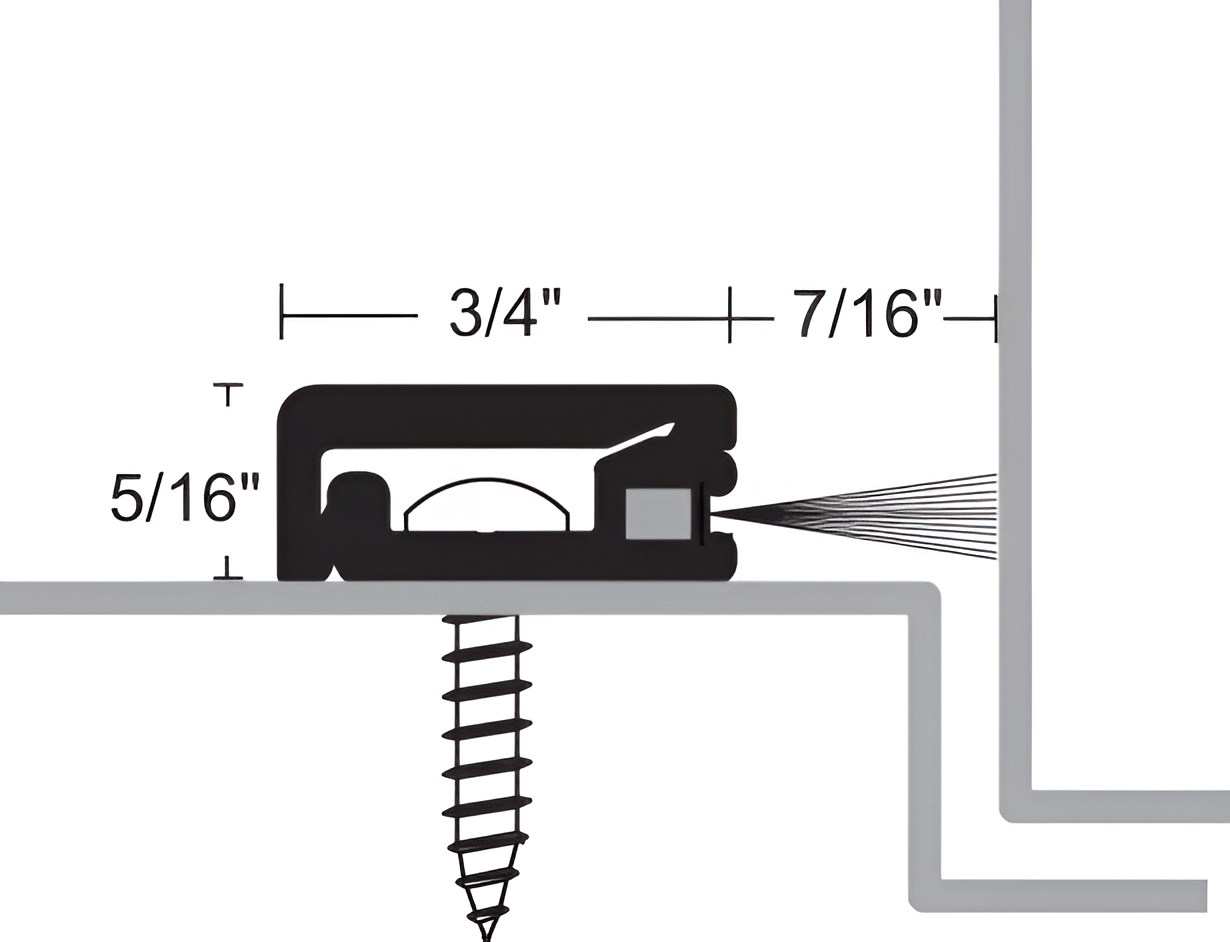

NGP 672A 48" Anodized Aluminum Concealed Fastener with Nylon Brush Sweep is designed to enhance the functionality and aesthetic of restroom partitions. Constructed from durable aluminum alloy 6063 with T5 temper, this fastener ensures exceptional strength and longevity. Its gray nylon brush provides excellent abrasion resistance, flexibility, and memory, effectively maintaining its shape even in demanding environments. This product is moisture-resistant and operates effectively within a wide temperature range of -70°F to 425°F, making it an ideal choice for various climates and conditions. The anodized aluminum finish not only contributes to its durability but also offers a clean appearance, as the snap-on cover conceals screw heads. Installation is straightforward with #6 x 3/4" stainless steel sheet metal screws included, featuring slotted screw holes for easy adjustment. NGP 672A is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring it meets rigorous standards for safety and reliability. Additionally, it is compliant with REACH and RoHS regulations, underlining NGP’s commitment to quality and sustainability. This fastener is a practical solution for professionals seeking reliable hardware for commercial restroom partitions.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Nylon brush is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: 3 Hours
Length: 48.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Restrictions: Fragile
Ro HS: REACH and RoHS compliant
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature range -70°F to 425°F
Type: Hinges and Pivots
