NGP 672A (SET) 60" Anodized Aluminum Surface Mounted Astragal offers a robust solution for enhancing the performance of your commercial restroom partitions. Crafted from durable aluminum alloy 6063 with a T5 temper, this astragal is built to withstand the test of time while providing excellent abrasion resistance, flexibility, and memory. The synthetic polymer material, made from polyamide, is moisture resistant, ensuring longevity even in challenging environments. This product effectively retains insecticides and performs well across a wide temperature range of -70°F to 425°F, making it suitable for various climates. The NGP 672A is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring compliance with industry standards. It comes complete with #6 x 3/4" stainless steel sheet metal screws, which are furnished and feature slotted screw holes for easy adjustment during installation. Available in a sleek anodized aluminum finish, this astragal set includes two pieces and features a gray nylon brush for added functionality. While it effectively addresses air infiltration and is REACH and RoHS compliant, please note that it is not designed for water penetration. Elevate your restroom partition system with the reliability and quality of the NGP 672A astragal.

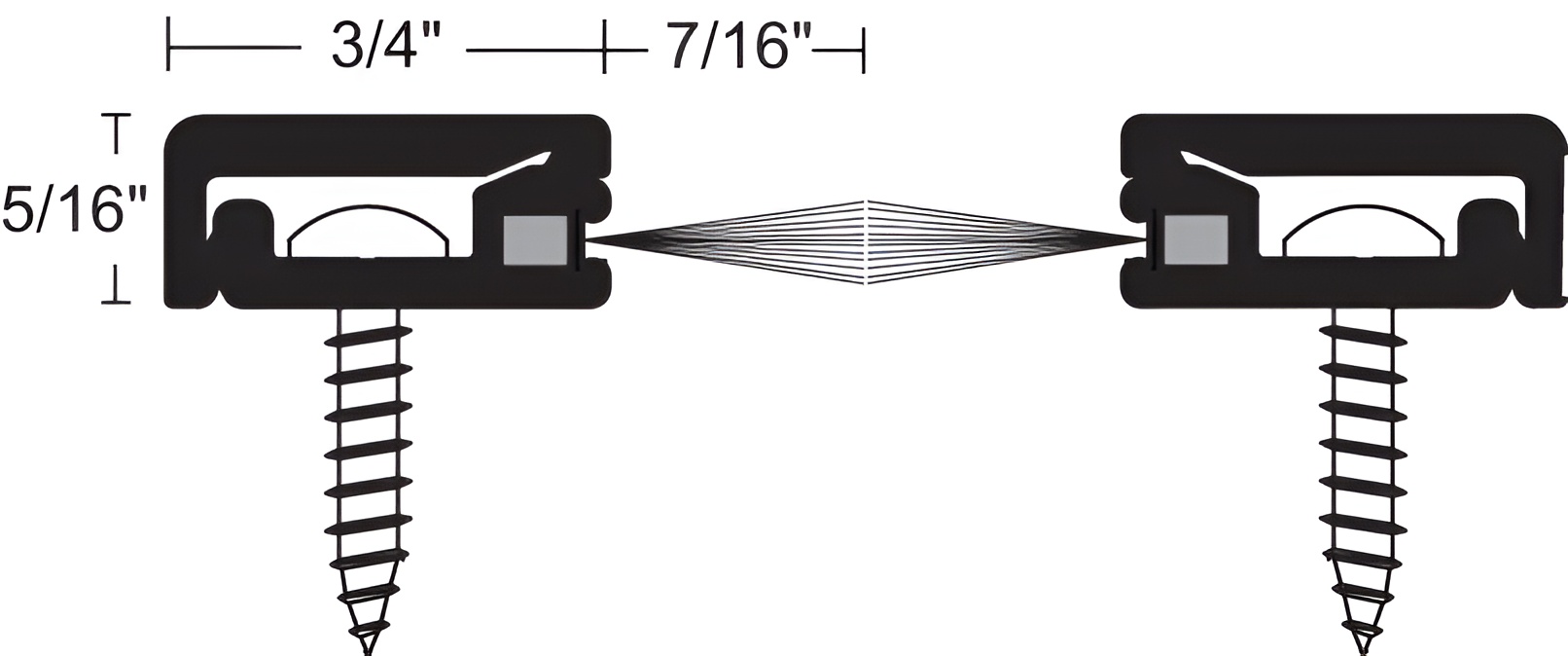

60" Anodized Aluminum Surface Mounted Astragal
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon brush is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Length: 60.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
