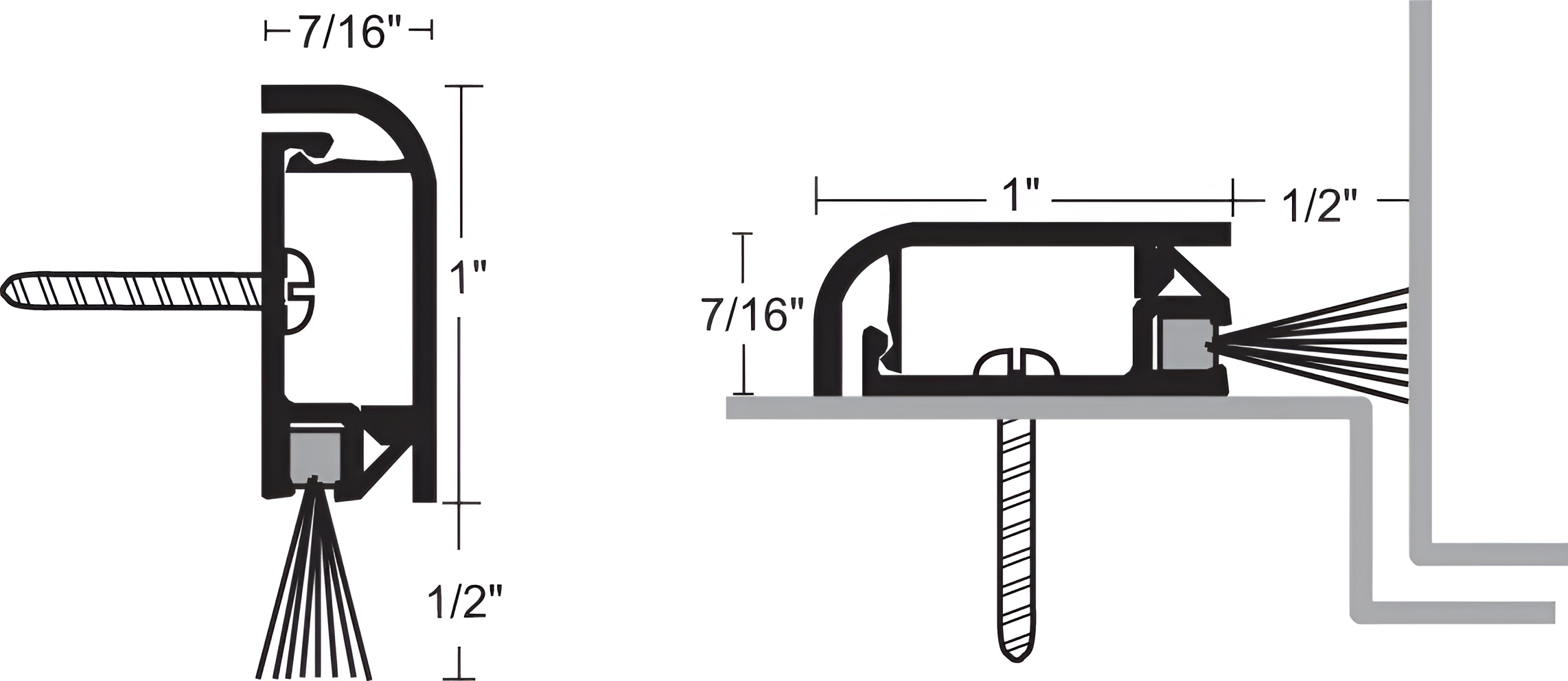

NGP 675A 96" Anodized Aluminum Concealed Fastener with Nylon Brush Sweep or Perimeter Seal delivers a robust solution for commercial restroom partitions. Constructed from durable aluminum alloy 6063 with T5 temper, this fastener ensures long-lasting performance and reliability. The integrated nylon brush sweep, featuring excellent abrasion resistance, flexibility, and memory, effectively enhances the seal while maintaining moisture resistance. With a temperature range of -70°F to 425°F, the NGP 675A is designed to withstand extreme conditions, making it a versatile choice for various environments. This product is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring it meets industry standards for quality and durability. The sleek anodized aluminum finish not only adds to its aesthetic appeal but also conceals screw heads with a snap-on cover, providing a clean appearance. For easy installation, it comes with #6 x 3/4" stainless steel sheet metal screws, and the slotted screw holes allow for adjustment. Additionally, it is REACH and RoHS compliant, showcasing NGP's commitment to environmentally friendly practices. Choose the NGP 675A for a reliable, high-performance solution in your commercial restroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon brush is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Length: 96.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
