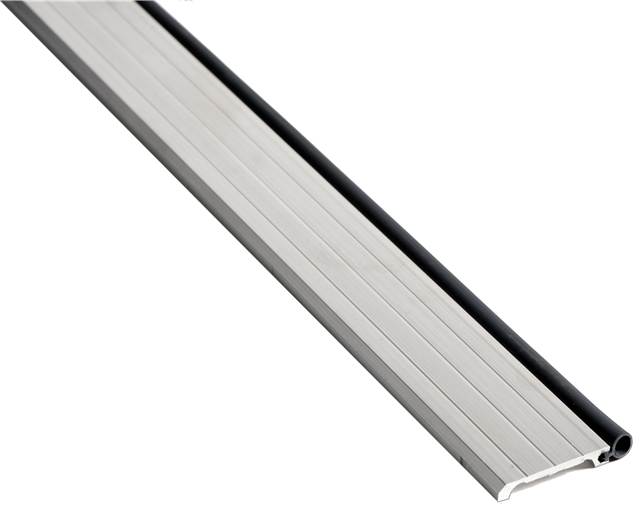

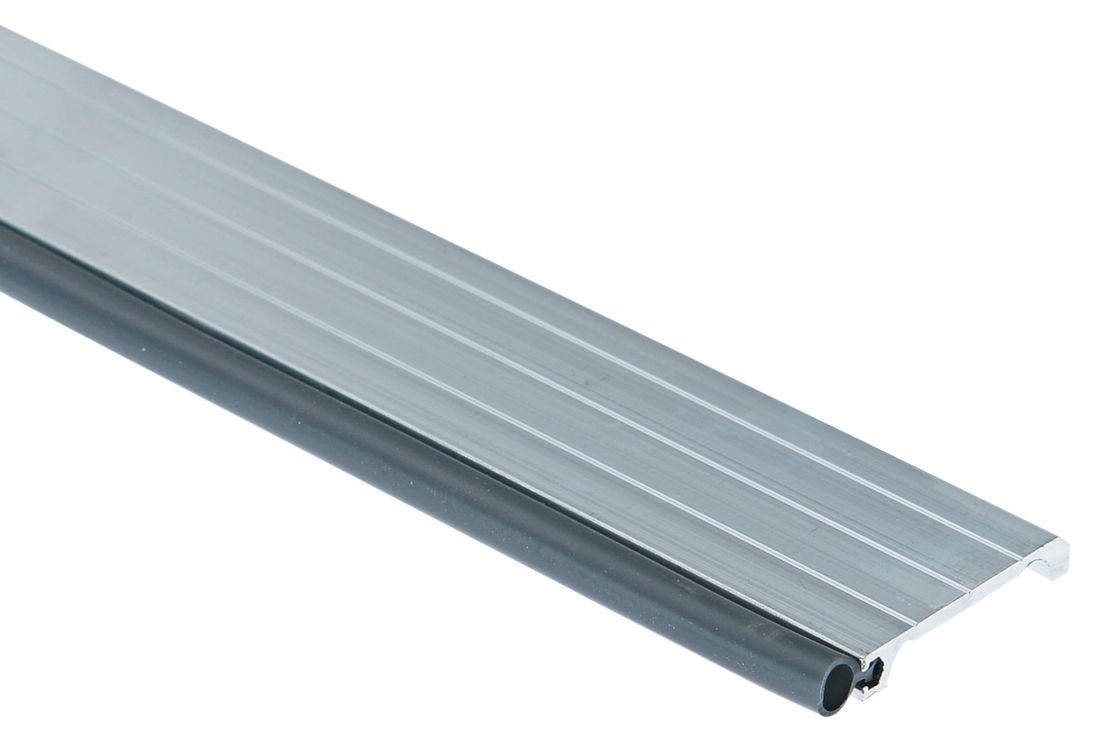

NGP 700ES 48" Mill Aluminum Silicone Perimeter Seal offers exceptional performance and durability for commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this perimeter seal guarantees long-lasting integrity and reliability. The synthetic rubber polymer, Siloxane, provides excellent flexibility and memory, ensuring a secure fit even in extreme temperatures ranging from -100°F to 500°F. Designed for demanding environments, the NGP 700ES is flame and moisture resistant, making it an ideal choice for areas utilizing FM200 or Halon Fire Suppression Systems. It boasts impressive resistance to ozone, UV rays, and aging, ensuring that the seal maintains its effectiveness over time. BHMA certified to ANSI/BHMA A156.22 performance standards, this product excels in heat, cold, air, and smoke infiltration tests. Installation is straightforward, with slotted holes in jamb sections for easy adjustments. The head section is not drilled, allowing for a cleaner installation without compromising the seal. Self-drilling #8 Tek-type screws are included, making setup simple and efficient. The silicone material is black, complementing a variety of restroom designs while enhancing overall functionality. Trust NGP for reliable and high-performance perimeter seals that meet the highest industry standards.
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
Color: Silicone is black
Fasteners: Self drilling #8 (Tek type) screws furnished
Finish: Clear Anodized Aluminum
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 48.0"
Material: Mill aluminum
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Series: Threshold Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
Type: Weatherization
