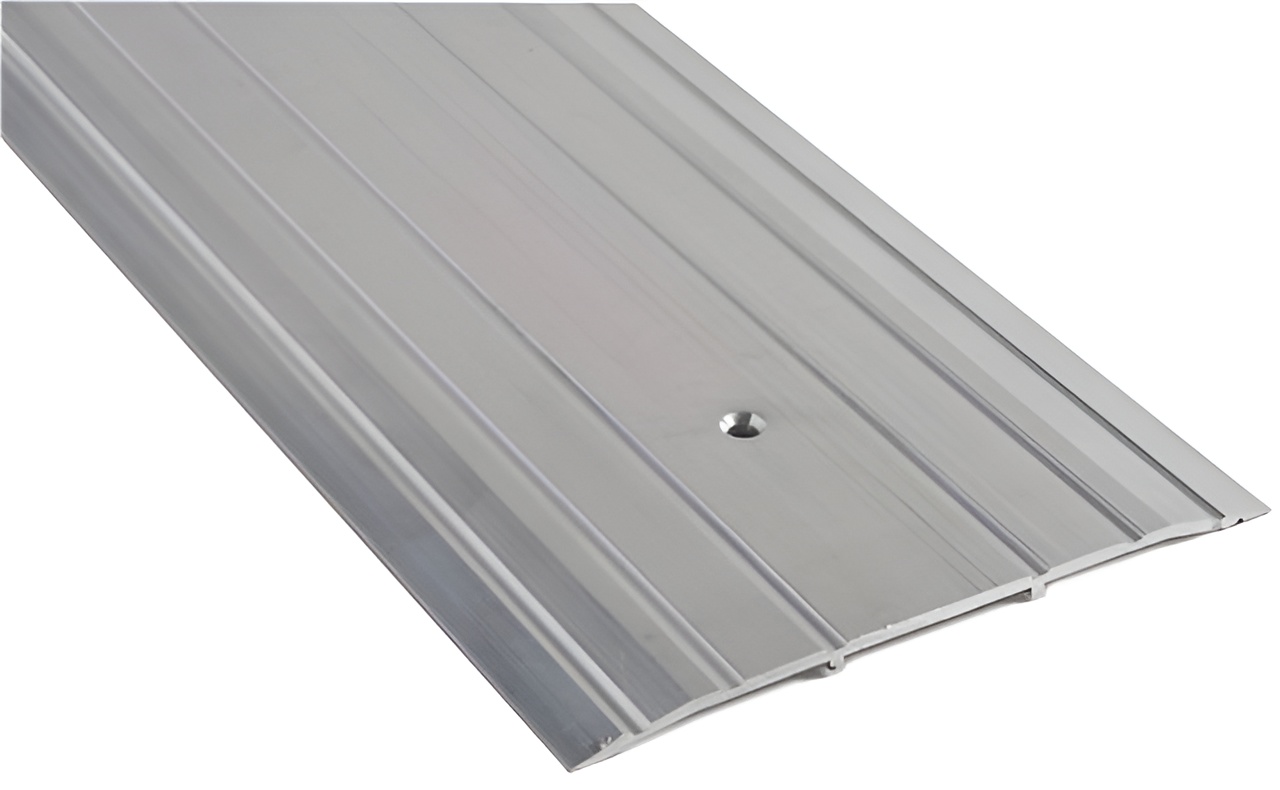

NGP 713 72" Mill Aluminum Saddle Threshold is designed to provide a durable and reliable transition between spaces while ensuring compliance with ADA standards. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 7 inches wide and stands 1/4 inch tall, making it ideal for various commercial applications. The fluted top design not only enhances aesthetic appeal but also aids in providing traction. This threshold is BHMA certified to ANSI/BHMA A156.21, having successfully passed a rigorous 1,000 lb. load test, ensuring its strength and longevity under heavy use. It features a typical wall thickness of .125 inches and weighs just 1.01 lbs. per foot, making it lightweight yet robust. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws for easy installation. The mill finish offers a clean, modern look that can seamlessly blend into any environment. This product is also UL certified for fire doors, complying with NFPA 80 and ANSI/UL10B standards. Whether for new construction or renovations, the NGP 713 threshold is a practical choice for building professionals seeking quality and reliability in restroom partition hardware.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 713 72IN, 71372IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Commercial Residential: Commercial
Dimensions: 7" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Mill Aluminum
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours
Height: 1/4"
Installation: Commercial
Length: 72.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Restrictions: Fragile
Series: 713
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.01 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 7"
