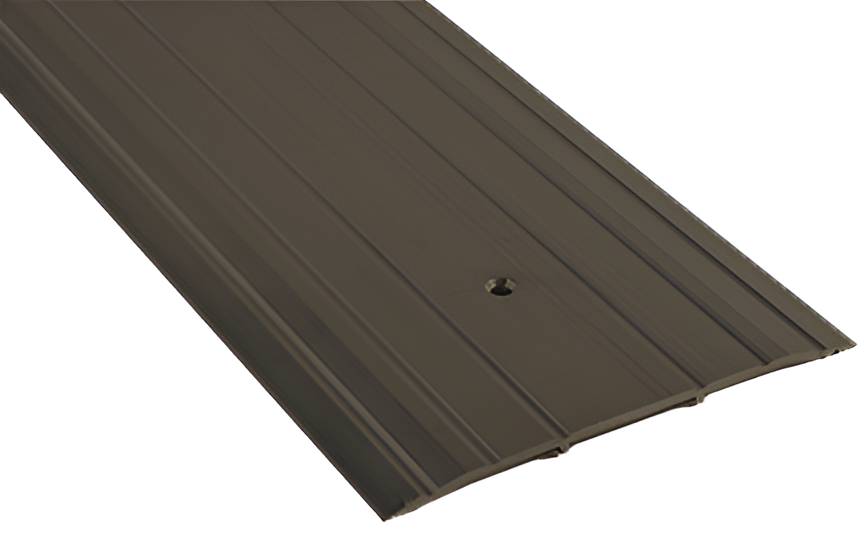

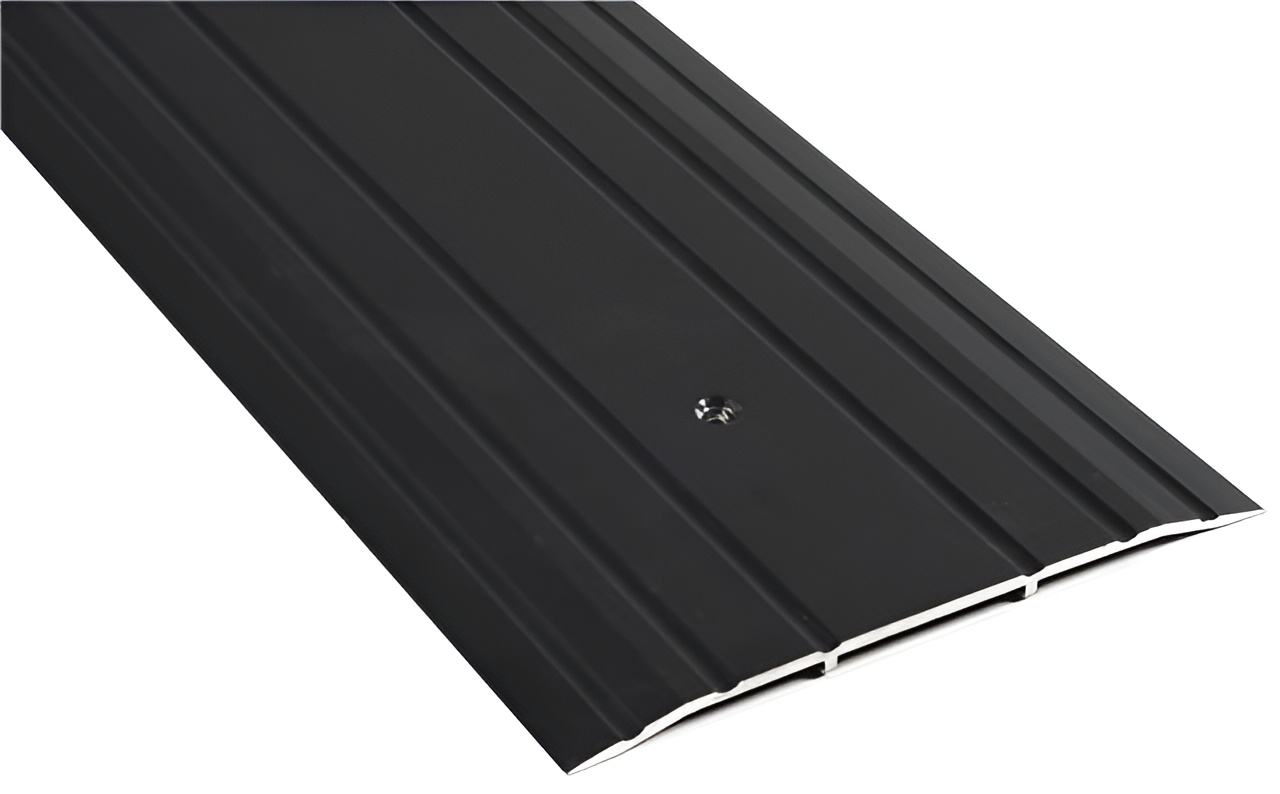

NGP 713DKB 72" DKB-finish Aluminum Saddle Threshold offers an ideal solution for seamless transitions in commercial restroom partitions. Constructed from robust aluminum alloy 6063 with T5 temper, this threshold measures 7" wide and stands 1/4" tall, ensuring durability and a sleek appearance. The fluted top design not only adds aesthetic appeal but also enhances traction, making it ADA compliant and suitable for barrier-free access. Certified by BHMA to ANSI/BHMA A156.21, it withstands a rigorous 1,000 lb. load test, guaranteeing its strength and reliability in high-traffic environments. Weighing just 1.01 lbs./ft., the NGP 713DKB is lightweight yet sturdy, making installation straightforward. The product comes complete with #10 x 1-1/2" FH zinc-plated wood screws for easy securing. With its elegant dark bronze finish, this threshold complements various design styles while providing necessary functionality. Additionally, the typical wall thickness of .125" promotes compatibility with standard installations. NGP's commitment to quality ensures that this threshold meets the highest standards, making it a valuable addition to any restroom setup. Whether you are a building professional or a knowledgeable homeowner, the NGP 713DKB is a reliable choice for your partition hardware needs.
Attributes
Alternate Codes: 713DKB 72IN, 713DKB72IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 7" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 72.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Restrictions: master-note
Series: 713
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.01 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 7"
