NGP 713SS 96" Stainless Steel Saddle Threshold offers a robust solution for your commercial restroom partition needs. Crafted from durable Type #304 stainless steel, this threshold measures 7" wide and stands 1/4" tall, ensuring a smooth transition between spaces while maintaining accessibility standards. The mill finish provides an understated elegance, making it suitable for various environments. Weighing 2.95 lbs. per foot, the NGP 713SS is designed for easy installation with included #10 x 1-1/2" FH stainless steel wood screws. Its typical wall thickness of .120 ensures strength and stability, whether used in new constructions or renovations. Importantly, this threshold meets ADA compliance, adhering to the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1. The NGP 713SS is also certified by UL for fire safety, suitable for application to hollow metal fire doors rated up to three hours and wood fire doors rated up to 90 minutes. With its positive pressure certification, it assures a high level of safety in your facilities. Please note that due to its length, this product requires common carrier shipping, so plan your order accordingly for a seamless procurement experience.

96" Stainless Steel Saddle Threshold, 1/4" x 7"

• Mill finish

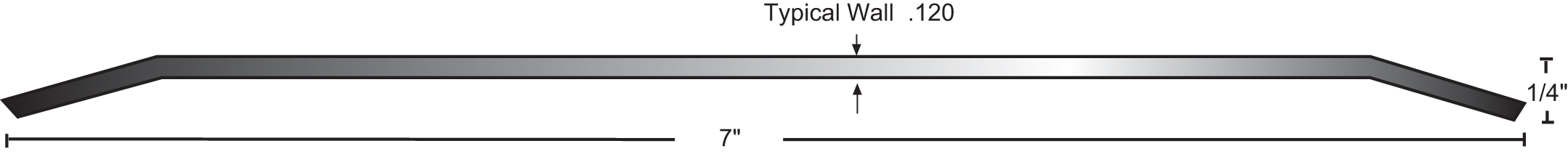

• 7" wide x 1/4" tall
• Type #304
• Smooth top
• Typical wall thickness .120
• #10 x -1-1/2" FH stainless steel wood screws included
• Weight: 2.95 lbs./ft.
