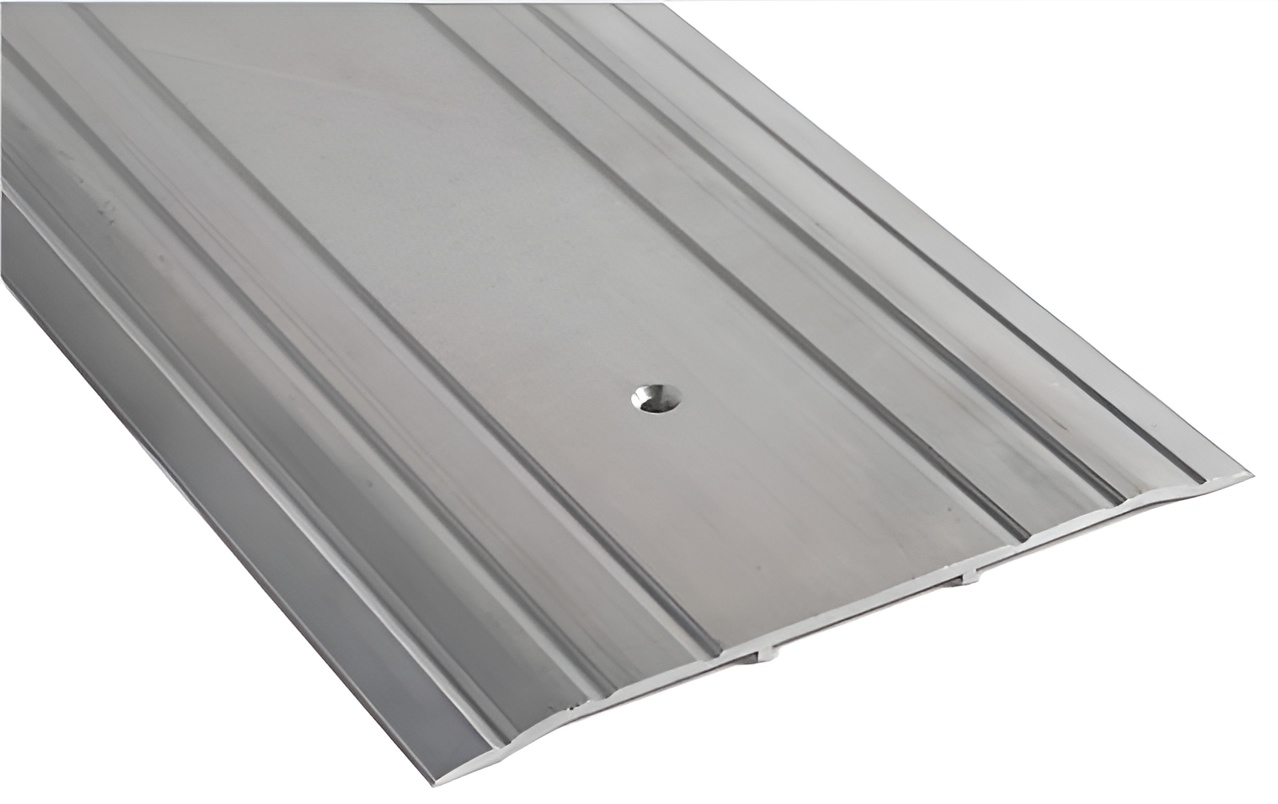

NGP 813 48" Mill Aluminum Saddle Threshold provides a robust solution for enhancing the accessibility and durability of any commercial restroom space. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 8 inches wide and stands 1/4 inch tall, making it an ideal choice for barrier-free designs compliant with ADA standards. The fluted top design not only adds a touch of sophistication but also aids in slip resistance, ensuring safety for all users. With a BHMA certification to ANSI/BHMA A156.21, it has successfully passed a rigorous 1,000 lb. load test, showcasing its strength and reliability. Each threshold is accompanied by #10 x 1-1/2" FH zinc-plated wood screws for easy installation. Weighing just 1.20 lbs./ft., the NGP 813 is lightweight yet sturdy, with a typical wall thickness of .125". It features a mill finish that complements various design aesthetics while ensuring long-lasting performance. Certified by UL for fire door applications, it meets NFPA and IBC standards, offering peace of mind in safety. Upgrade your restroom facilities with the dependable NGP 813 Saddle Threshold, designed for both practicality and elegance.
Attributes
Alternate Codes: 2748A 48, 2748A48, 2748A 48IN, 813 48IN, 81348IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 8" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Mill Aluminum
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Restrictions: master-note
Series: 813
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.20 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 8"
