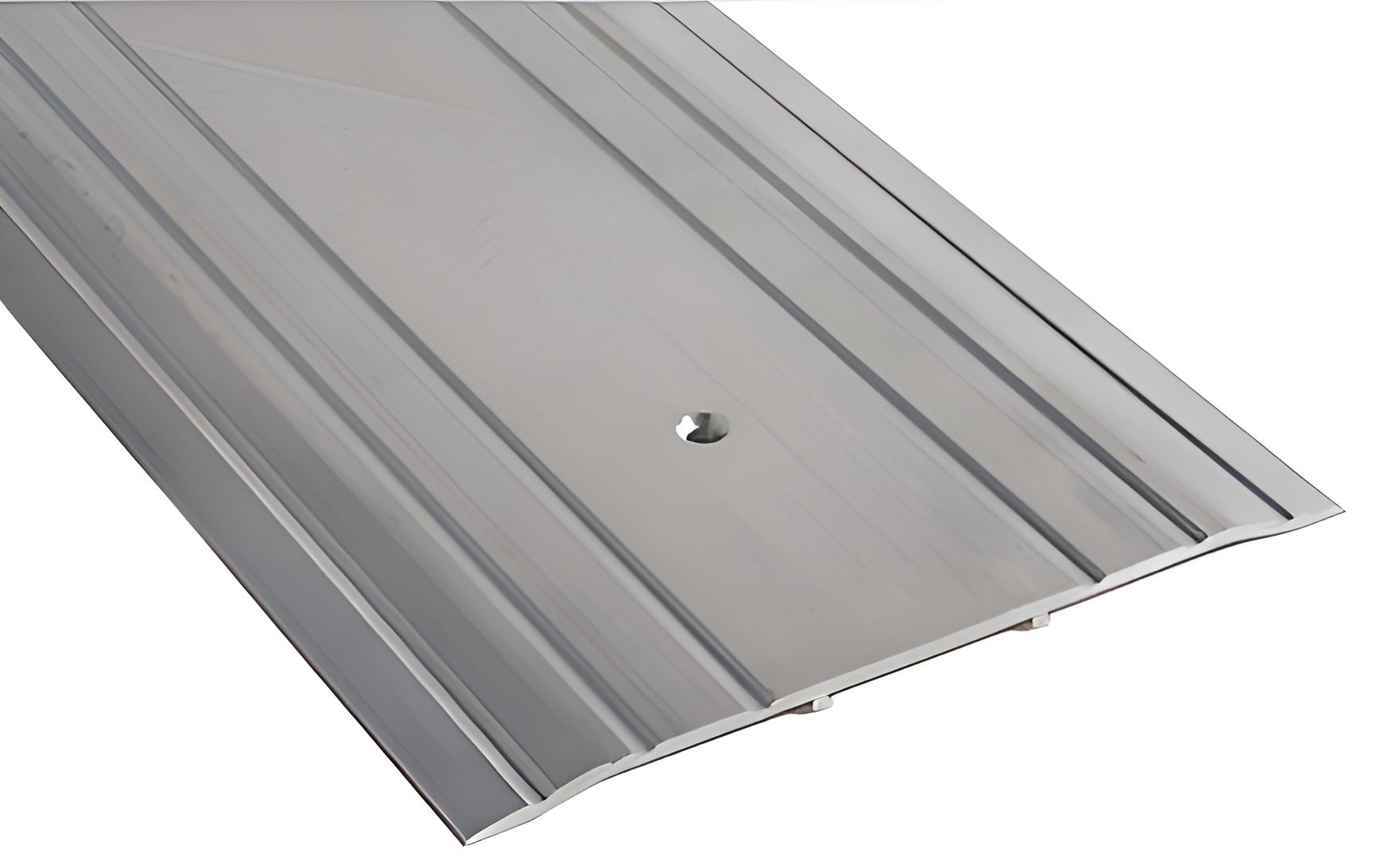

NGP 813 96" Mill Aluminum Saddle Threshold offers a robust solution for enhancing accessibility and durability in commercial spaces. Crafted from high-quality aluminum alloy 6063 with T5 temper, this threshold measures 8" wide and stands 1/4" tall, providing a reliable transition between rooms while meeting the ADA Standard for Accessible Design. The fluted top design not only enhances aesthetics but also improves grip for foot traffic. NGP 813 is BHMA certified to ANSI/BHMA A156.21, successfully passing the rigorous 1,000 lb. load test, ensuring it can withstand significant wear and tear. With a typical wall thickness of .125", this threshold is designed for strength and stability, weighing just 1.20 lbs./ft. for easy installation. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws, ensuring a secure fit. The mill finish provides a sleek, industrial look that complements various design styles. Please note that this product ships via common carrier only, and special shipping considerations may apply for items measuring 96" or more. Choose the NGP 813 Saddle Threshold for a reliable, ADA-compliant addition to your commercial restroom partitions.
Attributes
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 3 Units: $130.00 4 to 6 Units: $260.00 7 to 9 Units: $390.00
Accessible: Yes
Ada Compliance: Yes
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Commercial Residential: Commercial
Dimensions: 8" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: 3 Hours
Fire Rating: 3 Hours
Installation: Commercial
Length: 96.0"
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Restrictions: Largewide
Series: NGP Thresholds
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.20 lbs./ft.
