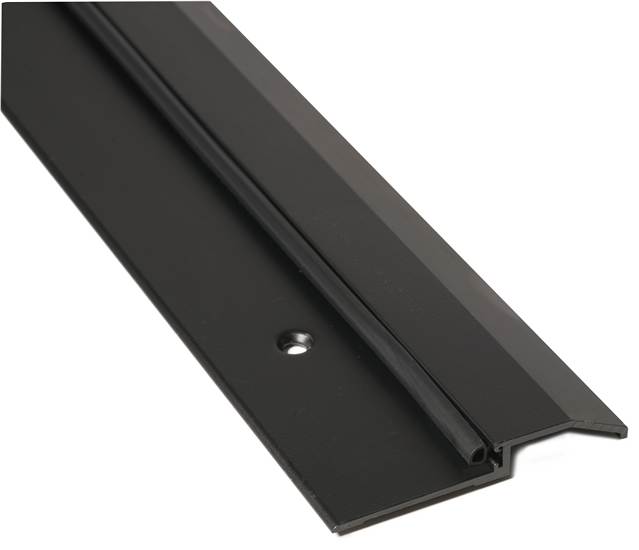

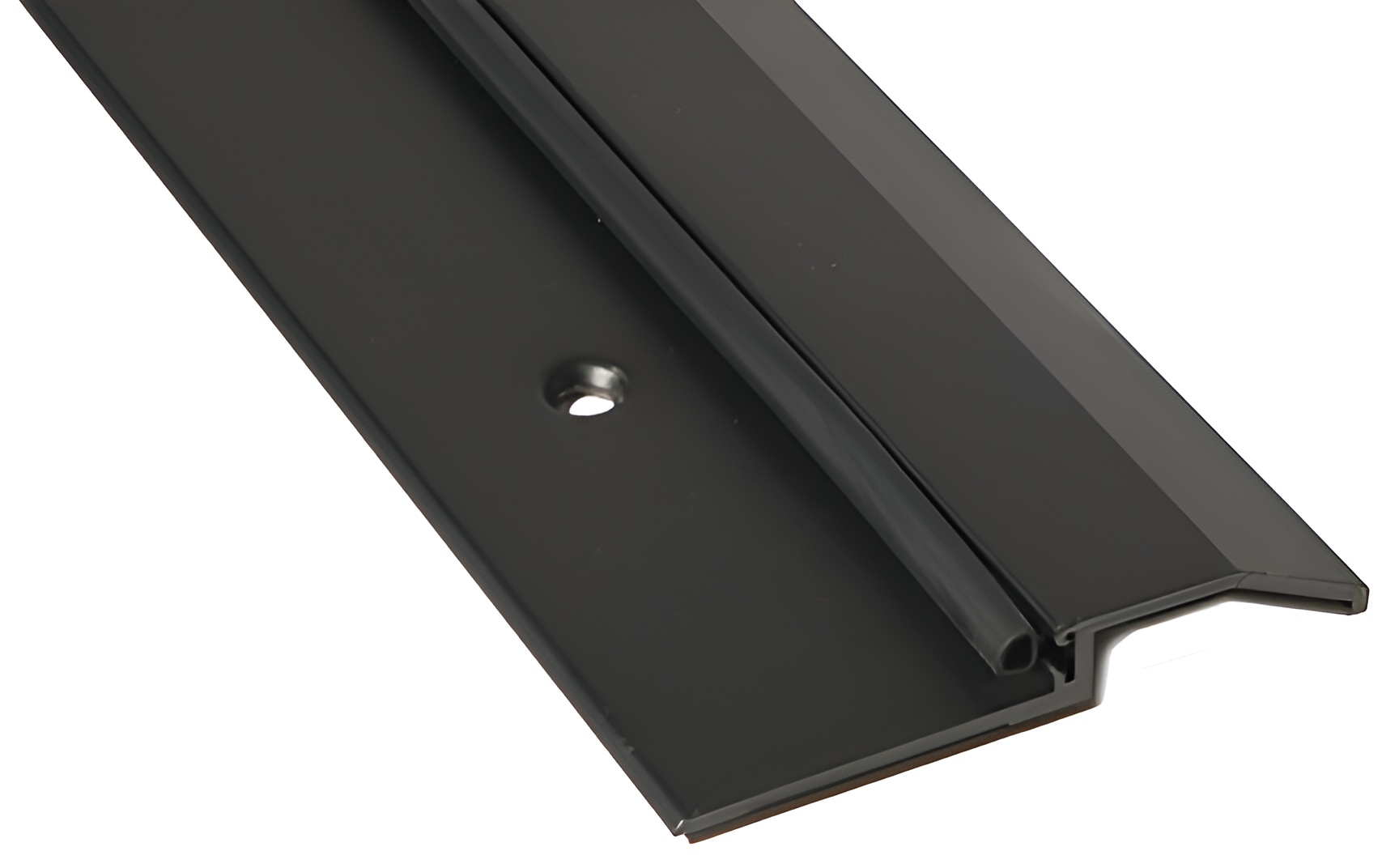

NGP 8135NDKB 36" DKB-finish NGP-TPV Bumper Seal Threshold is an essential addition for any commercial restroom partition project. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold ensures long-lasting performance. Measuring 3-3/4" wide and 1/2" tall, it features a smooth top design that provides a sleek finish while effectively sealing gaps to prevent drafts and moisture ingress. This threshold is equipped with a typical wall thickness of .115", making it sturdy and reliable. Weighing just .60 lbs. per foot, it combines strength with ease of installation. The package includes #10 x 1-1/2" FH zinc-plated wood screws, specifically designed for use with the dark bronze finish thresholds. NGP 8135NDKB meets rigorous safety standards, being certified by UL to CAN/ULC-S104 and ANSI/UL10B, and complies with NFPA 80 and NFPA 252 for application to hollow metal fire doors rated up to 3 hours, as well as wood fire doors rated for 90 minutes. Additionally, it has been air infiltration tested to ASTM E283, ensuring superior performance in controlling airflow. Enhance your project with the quality and reliability of NGP's bumper seal threshold.
36" DKB-finish NGP-TPV Bumper Seal Threshold, 1/2" x 3-3/4"
Color: NGP-TPV is black
Dimensions: 3-3/4" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .115"
Weight: Weight: .60 lbs./ft.
