NGP 8136 36" Mill Aluminum Threshold Assembly Part is a robust and reliable solution designed for commercial restroom applications. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold assembly ensures durability while maintaining a lightweight profile at just 0.30 lbs. per foot. Measuring 1-1/8" wide and 1/4" tall, it fits seamlessly into various installations, providing an effective barrier-free solution. This assembly meets ADA compliance standards, ensuring accessibility for all users. Furthermore, it has been rigorously tested and certified by UL for application to hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, complying with NFPA 80 and NFPA 252 standards. The NGP 8136 also meets ANSI/BHMA certification requirements, having passed a rigorous 1,000 lb. load test, making it a dependable choice for high-traffic areas. Its mill finish not only enhances its aesthetic appeal but also contributes to its longevity in demanding environments. Designed to ship conveniently via UPS, the NGP 8136 threshold assembly is an essential component for any restroom partition project, combining functionality with safety and compliance.
36" Mill Aluminum Threshold Assembly Part

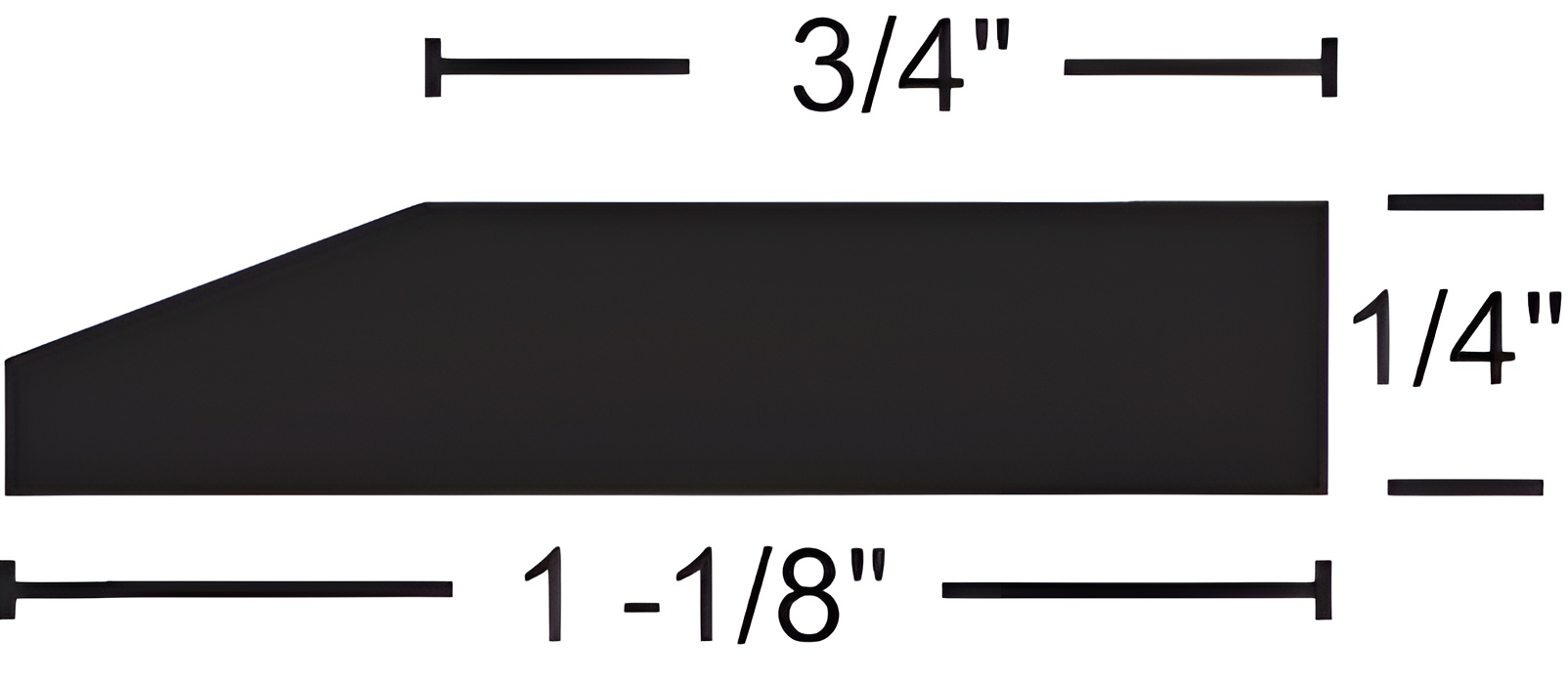

Dimensions: 1-1/8" wide x 1/4" tall
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Weight: Weight: .30 lbs./ft.
