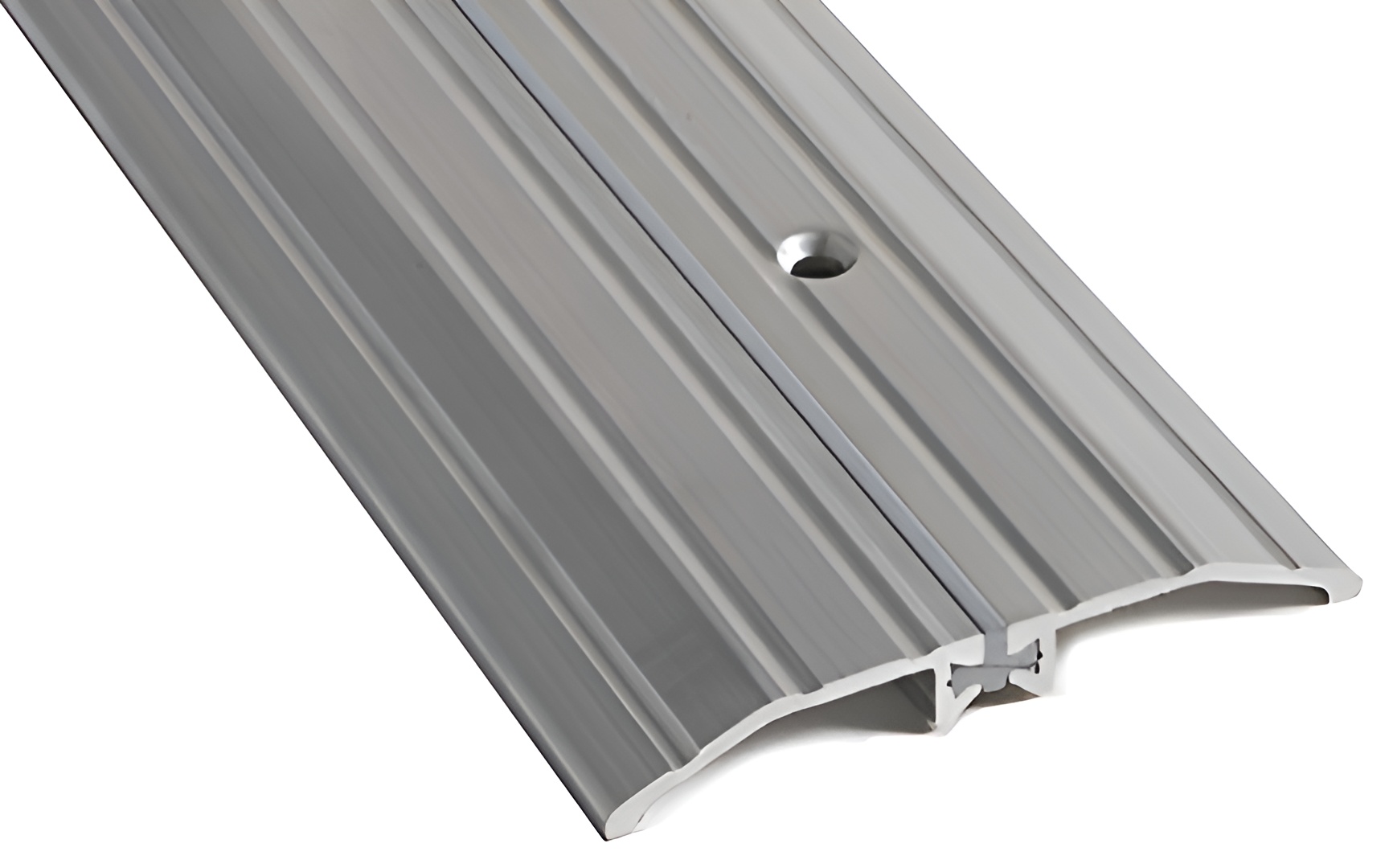

NGP 8424 84" Aluminum Thermal Break Saddle Threshold, 1/2" x 4-1/8" offers exceptional durability and energy efficiency for commercial restroom applications. Constructed from high-quality aluminum alloy 6063 in T5 temper, this threshold measures 4-1/8" wide and 1/2" tall, making it an ideal choice for seamless transitions between spaces. One of its standout features is the rigid thermoplastic spline that effectively separates indoor and outdoor temperatures, preventing frost and outside elements from penetrating through the threshold. With a typical wall thickness of .110", it provides robust performance while maintaining a lightweight design at just .75 lbs./ft. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws, ensuring easy installation. The mill finish gives it a sleek appearance, with dark bronze options available for specific thresholds. Moreover, the NGP 8424 is ADA compliant and meets the requirements of the ADA Standard for Accessible Design, making it suitable for barrier-free environments. It is also ANSI/BHMA certified, having passed rigorous load tests to ensure reliability and safety. Upgrade your restroom facilities with this reliable, efficient, and stylish threshold that combines functionality and compliance with ease.
84" Aluminum Thermal Break Saddle Threshold, 1/2" x 4-1/8"

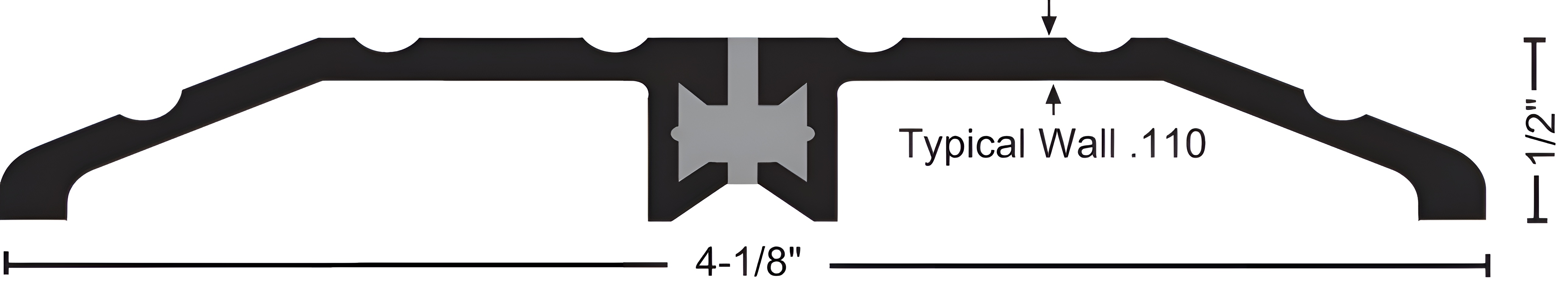

Dimensions: 4-1/8" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 84.0"
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .110"
Weight: Weight: .75 lbs./ft.
