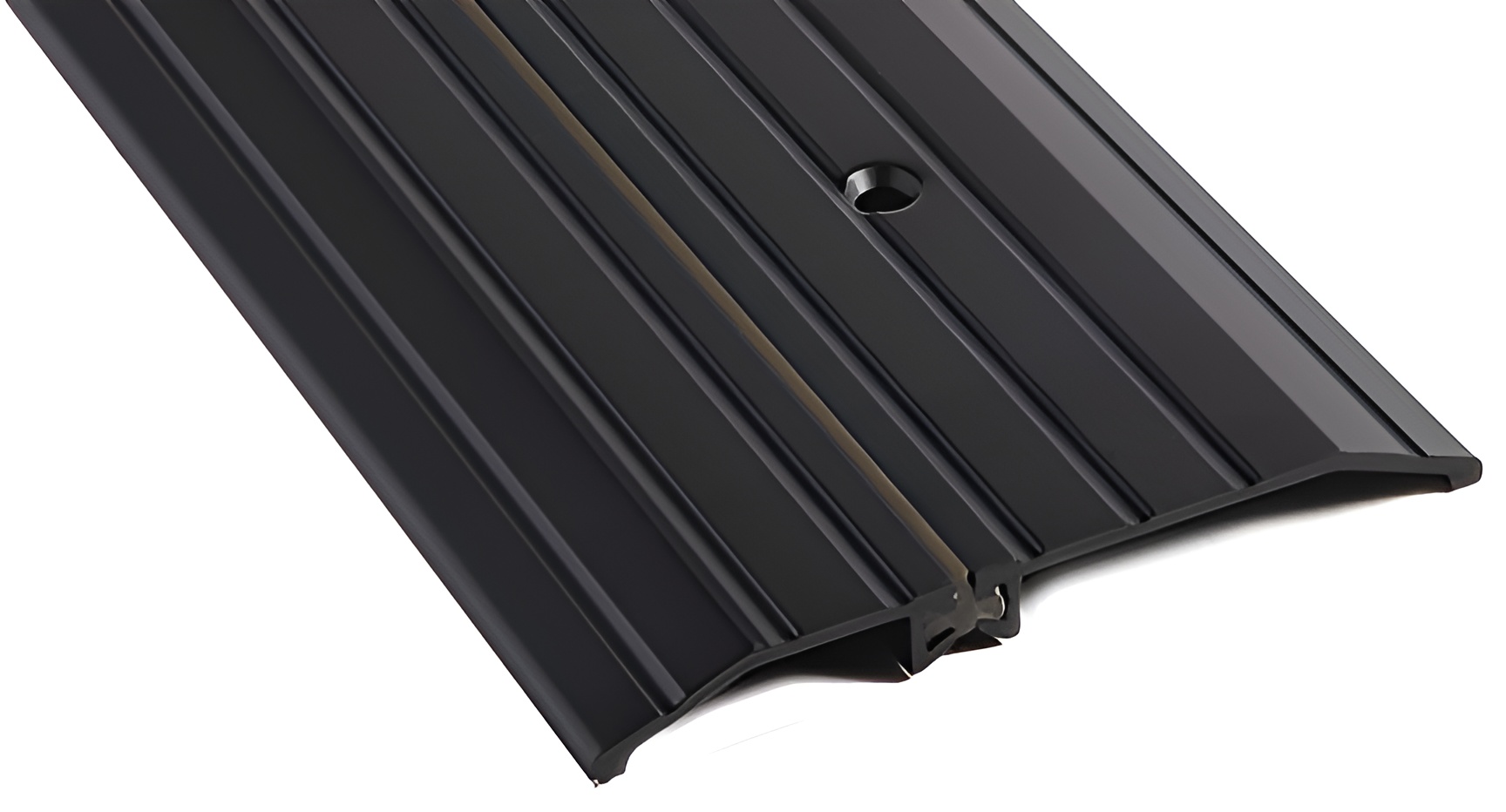

NGP 8425DKB 60" DKB-finish Thermal Break Saddle Threshold is expertly designed to enhance the performance and durability of your commercial restroom partitions. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 5-1/8" wide and stands 1/2" tall, making it an ideal choice for both functionality and aesthetics. The fluted top design not only adds a touch of elegance but also helps in preventing the transfer of outside temperature and frost, thanks to a rigid thermoplastic spline that creates a thermal break. Weighing just 0.90 lbs./ft., this threshold is lightweight yet robust, ensuring long-lasting performance. Included with the purchase are #10 x 1-1/2" FH zinc-plated wood screws, perfectly matched to the dark bronze finish of the threshold. The NGP 8425DKB is also ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, ensuring that your facilities are accessible to everyone. Additionally, it is ANSI/BHMA certified, demonstrating compliance with rigorous load testing standards. Upgrade your space with the NGP 8425DKB Thermal Break Saddle Threshold, where quality meets accessibility and style.
60" DKB-finish Thermal Break Saddle Threshold, 1/2" x 5-1/8"
Dimensions: 5-1/8" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .110"
Weight: Weight: .90 lbs./ft.
