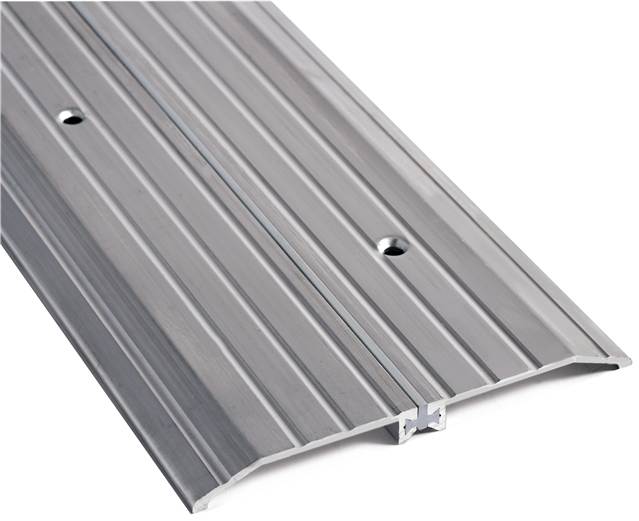

NGP 8426 36" Aluminum Thermal Break Saddle Threshold, 1/2" x 6-1/8"

NGP 8426 36" Aluminum Thermal Break Saddle Threshold, 1/2" x 6-1/8" offers a durable and efficient solution for creating a seamless transition between different flooring surfaces. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 6-1/8" wide and stands 1/2" tall, making it an ideal choice for both commercial and residential applications. One of the standout features of the NGP 8426 is its rigid thermoplastic spline, which effectively prevents the transfer of outside temperatures and frost through the threshold, ensuring a comfortable indoor environment. This threshold is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, making it suitable for barrier-free accessibility. Weighing just 1.00 lbs./ft., the NGP 8426 is lightweight yet robust enough to handle a 1,000 lb. load, certified by ANSI/BHMA standards. Included with the product are #10 x 1-1/2" FH zinc plated wood screws, with dark bronze options available for DKB thresholds. Its mill finish adds a sleek appearance, enhancing the aesthetic of any entrance. Whether you're upgrading a commercial restroom or enhancing a home entryway, the NGP 8426 Thermal Break Saddle Threshold delivers practicality and style in one reliable package.

36" Aluminum Thermal Break Saddle Threshold, 1/2" x 6-1/8"

• Typical wall thickness .110"
• #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
• Mill finish
• Fluted top
• Weight: 1.00 lbs./ft.
• Features a rigid thermoplastic spline creating a separation to prevent the transfer of outside temperature and frost through the threshold
• Aluminum alloy 6063, T5 temper
• 6-1/8" wide x 1/2" tall
