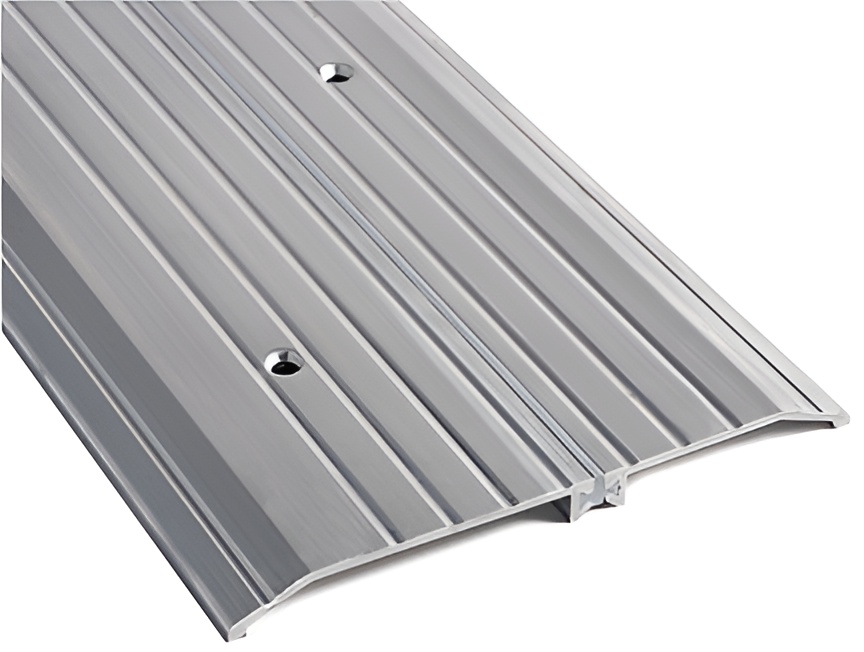

NGP 8427 36" Aluminum Thermal Break Saddle Threshold, 1/2" x 7-1/8" offers an exceptional solution for temperature control and accessibility in commercial restroom environments. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold is engineered to withstand the rigors of high-traffic areas while maintaining a sleek appearance with its mill finish. Measuring 7-1/8" wide and 1/2" tall, the NGP 8427 features a unique fluted top that enhances both aesthetics and functionality. The integrated rigid thermoplastic spline effectively prevents the transfer of outside temperature and frost, ensuring a comfortable indoor climate. This threshold is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1, making it an ideal choice for barrier-free facilities. With a typical wall thickness of .110" and a lightweight design of 1.20 lbs./ft., installation is straightforward, thanks to the included #10 x 1-1/2" FH zinc plated wood screws. Whether you’re renovating a restroom or constructing a new facility, the NGP 8427 threshold combines practicality with a professional finish, delivering a reliable and long-lasting performance.
36" Aluminum Thermal Break Saddle Threshold, 1/2" x 7-1/8"
Accessible: Yes
Ada Compliance: Yes
Commercial Residential: Commercial
Dimensions: 7-1/8" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Installation: Commercial
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Subtype: Thresholds
Type: Weatherization
Unit of Measure: Each
Wall Thickness: Typical wall thickness .110"
Weight: Weight: 1.20 lbs./ft.
