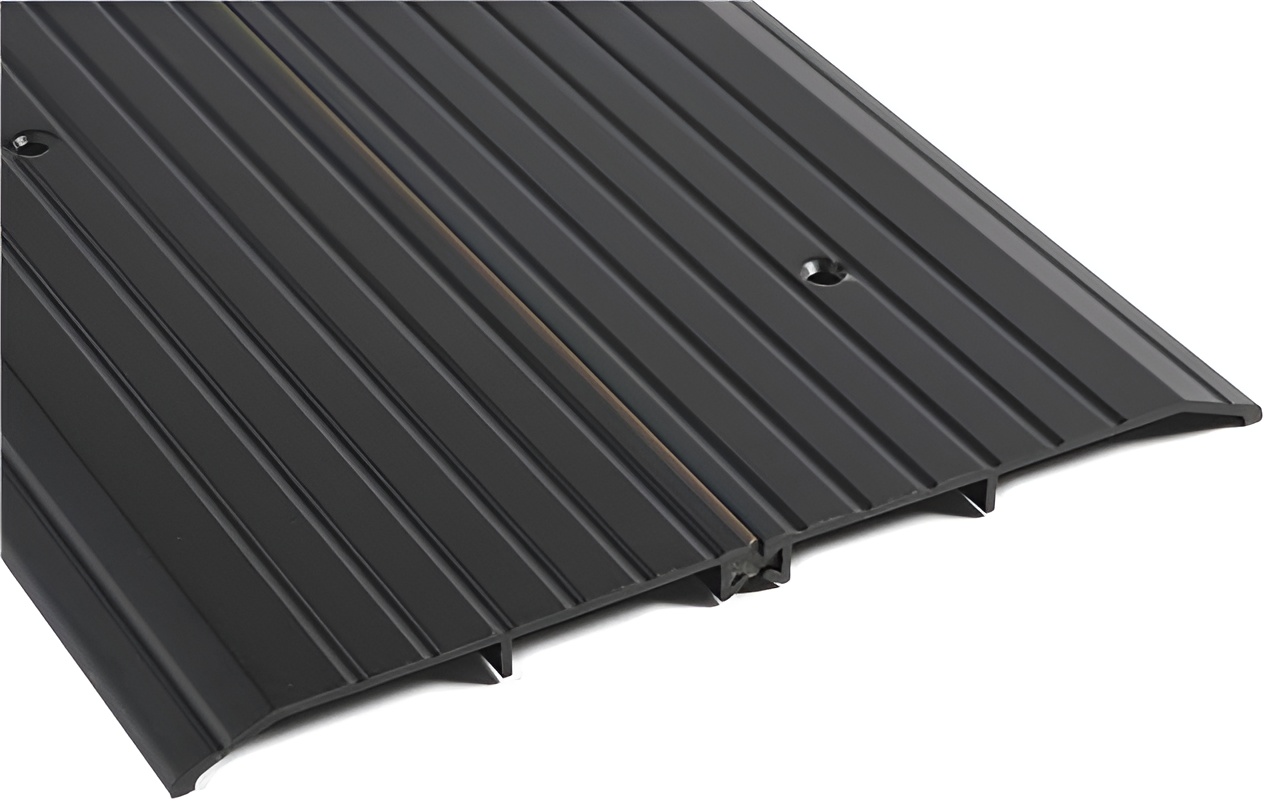

NGP 8430DKB 72" DKB-finish Thermal Break Saddle Threshold offers both functionality and durability for commercial restroom applications. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 10-1/8" in width and stands 1/2" tall. The innovative fluted top design not only enhances aesthetics but also ensures effective performance. A standout feature of the 8430DKB is its rigid thermoplastic spline, which provides a thermal break to prevent the transfer of outside temperatures and frost, ensuring a comfortable environment. With a typical wall thickness of .110" and a weight of 1.70 lbs./ft., this threshold is both sturdy and lightweight. Installation is made easy, as the product includes #10 x 1-1/2" FH zinc-plated wood screws, specially designed for dark bronze finishes. The threshold is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, and is ANSI/BHMA certified, ensuring it withstands a 1,000 lb. load test. Perfect for various applications, the NGP 8430DKB enhances accessibility while maintaining a sleek, professional appearance. Whether you're upgrading existing restroom facilities or designing new spaces, this threshold is an excellent choice for reliable performance and style.
72" DKB-finish Thermal Break Saddle Threshold, 1/2" x 10-1/8"
Dimensions: 10-1/8" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .110"
Weight: Weight: 1.70 lbs./ft.
