NGP 8475 96" Aluminum Saddle Threshold offers a robust and reliable solution for seamless transitions in commercial restroom environments. Constructed from high-quality Aluminum alloy 6063 with a T5 temper, this threshold measures 7-1/2" wide and stands 1/2" tall, making it an ideal choice for barrier-free accessibility in compliance with ADA standards. The fluted top design not only enhances aesthetics but also provides added traction, ensuring safety for users. With a typical wall thickness of .250", this threshold is both sturdy and lightweight, weighing in at just 1.90 lbs./ft. Installation is straightforward, thanks to the included #10 x 1-1/2" FH zinc plated wood screws, which ensure a secure fit. Available in a mill finish, the NGP 8475 is designed for durability and long-lasting performance, making it suitable for various commercial applications. This product also meets rigorous fire safety standards, being certified by UL for application with both hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. Please note that shipping may require a common carrier due to the 96" length, so plan your order accordingly. Choose the NGP 8475 Aluminum Saddle Threshold for a dependable and compliant solution in your restroom projects.
96" Aluminum Saddle Threshold, 1/2" x 7-1/2"
Ship via: No UPS - Common Carrier Only
Dimensions: 7-1/2" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Length: 96.0"
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

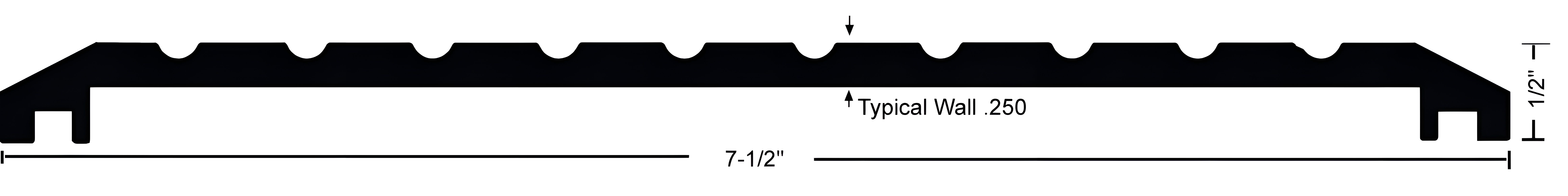

Wall Thickness: Typical wall thickness .250"
Weight: Weight: 1.90 lbs./ft.
