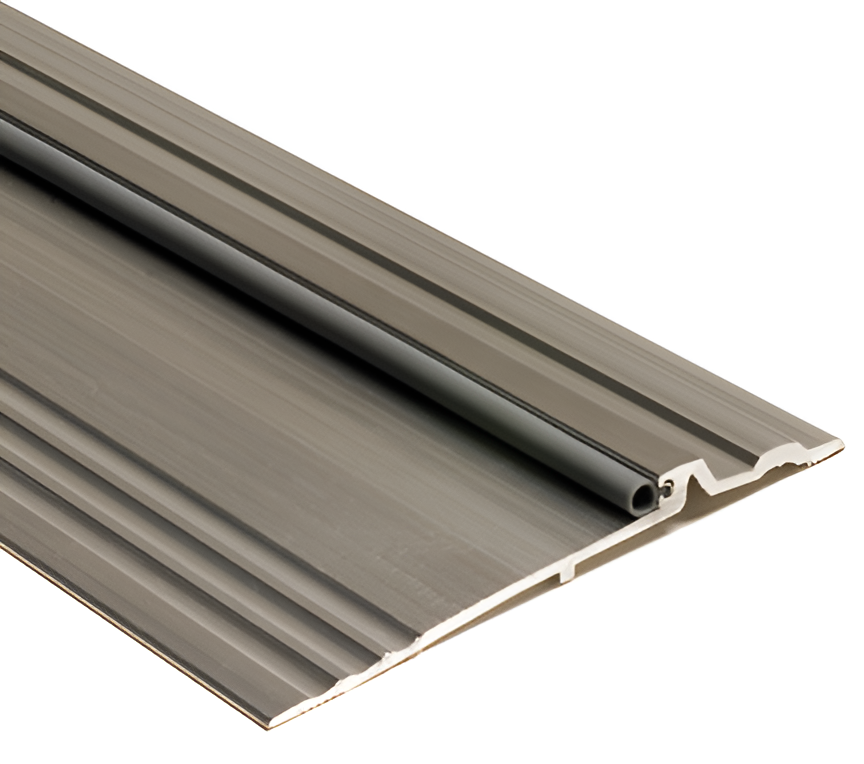

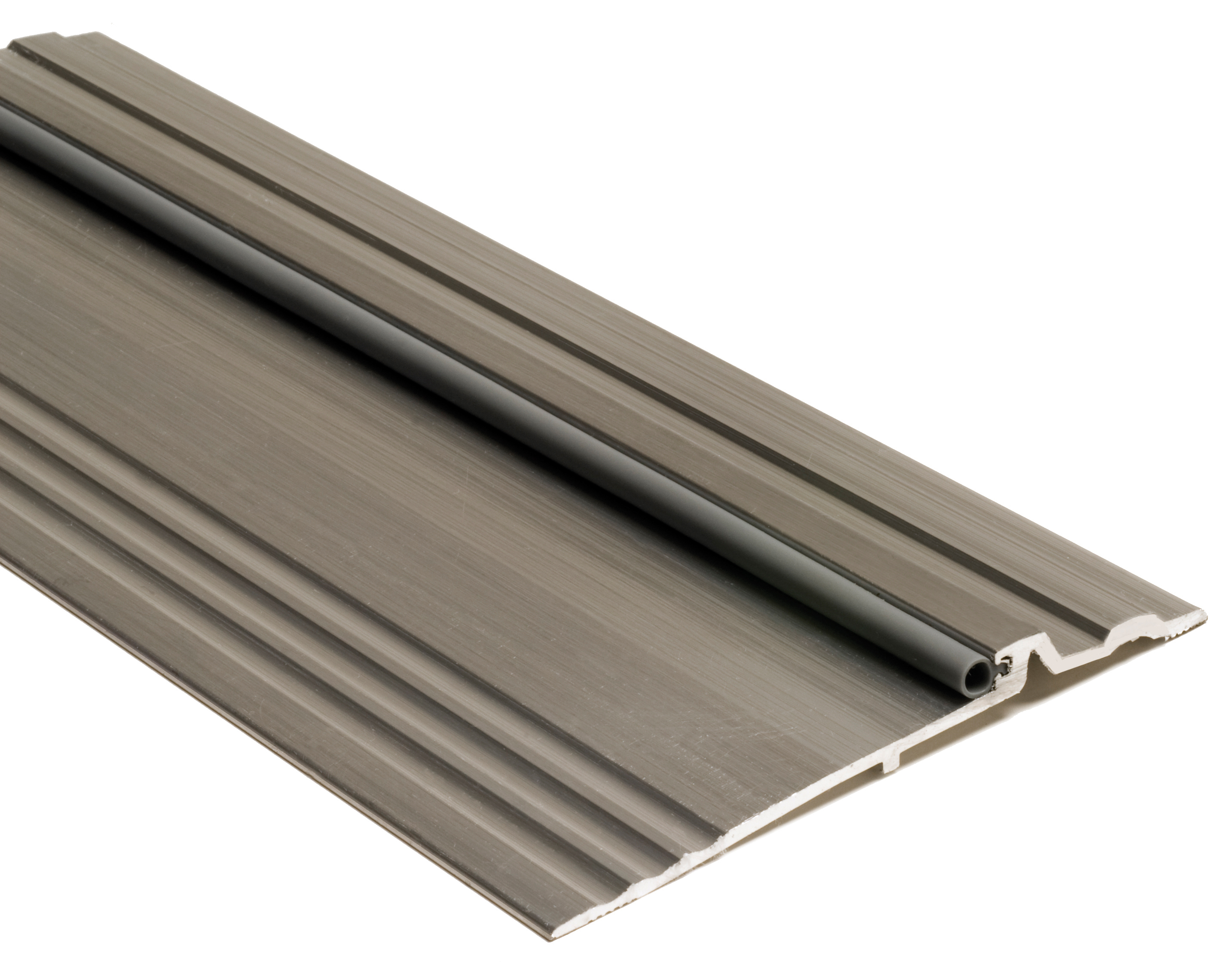

NGP 896V 48" ADA Compliant Aluminum Bumper Threshold is a robust solution designed for both functionality and accessibility in commercial restroom environments. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold measures 5" wide and stands 1/2" tall, making it an ideal choice for barrier-free applications. The fluted top not only enhances aesthetic appeal but also aids in traction, ensuring safety for all users. Weighing just .85 lbs./ft., the NGP 896V is lightweight yet sturdy, featuring a typical wall thickness of .125". Installation is straightforward, as it comes with #10 x 1-1/2" FH zinc plated wood screws. Additionally, the black vinyl bumper seal provides effective sealing against dust and moisture, enhancing the longevity of the threshold. This product proudly meets ADA compliance standards and has been certified by UL for fire door applications, ensuring safety and reliability. It also undergoes rigorous air infiltration testing to comply with ASTM E283, making it a top choice for energy efficiency. With a mill finish that complements any design and dark bronze options available, the NGP 896V is perfect for both new constructions and renovations, ensuring a seamless blend of safety, style, and accessibility.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 896V 48IN, 896V48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, ASTM E283, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Color: Vinyl bumper seal is black
Commercial Residential: Commercial
Dimensions: 5" wide x 1/2" tall
Discontinued: Yes
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Color: Mill Aluminum
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Height: 1/2"
Insert Color: Gray
Insert Material: Vinyl
Installation: Commercial
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Restrictions: Fragile
Series: 896V
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standard-4: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Bumper Seal Threshold
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical Wall Thickness: .125"
Weight: Weight: .85 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 5"
