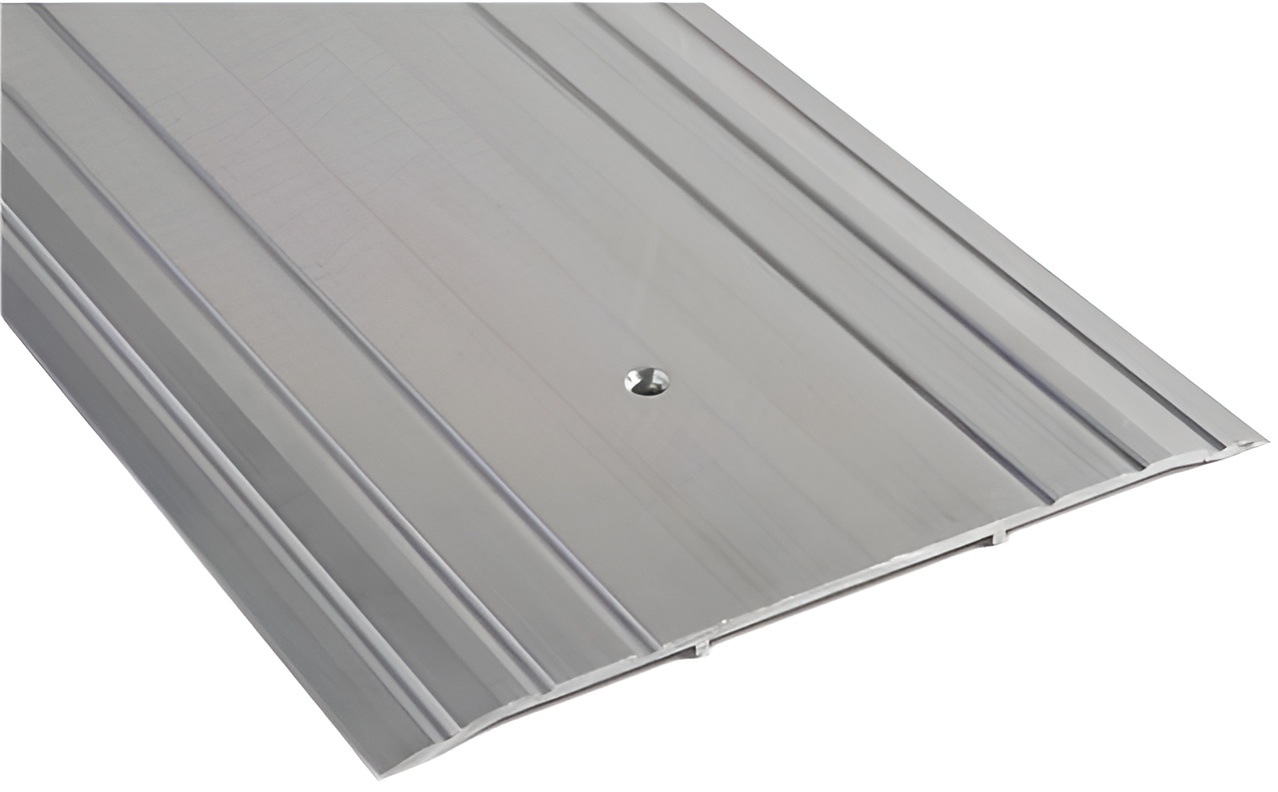

NGP 913 48" Mill Aluminum Saddle Threshold is a robust solution designed for commercial restroom environments. Constructed from premium aluminum alloy 6063 with T5 temper, this threshold measures 9 inches wide and stands at a height of 1/4 inch, ensuring durability and stability for high-traffic areas. The fluted top design not only enhances aesthetics but also provides slip resistance, making it safer for users. This threshold is BHMA certified to ANSI/BHMA A156.21, capable of withstanding a 1,000 lb. load test, ensuring it meets rigorous performance standards. Weighing just 1.41 lbs. per foot, it is lightweight yet exceptionally strong, making installation straightforward. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws for easy mounting. The NGP 913 is ADA compliant, meeting the requirements for accessible design, making it an ideal choice for facilities prioritizing inclusivity. It also complies with stringent fire safety standards, certified by UL for use with both Hollow Metal and Wood fire doors, rated up to 3 hours and 90 minutes, respectively. With its mill finish and exceptional specifications, this threshold is a reliable choice for enhancing both functionality and safety in commercial settings.
Attributes
Alternate Codes: 913 48IN, 91348IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 9" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Mill Aluminum
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 913
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.41 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 9"
