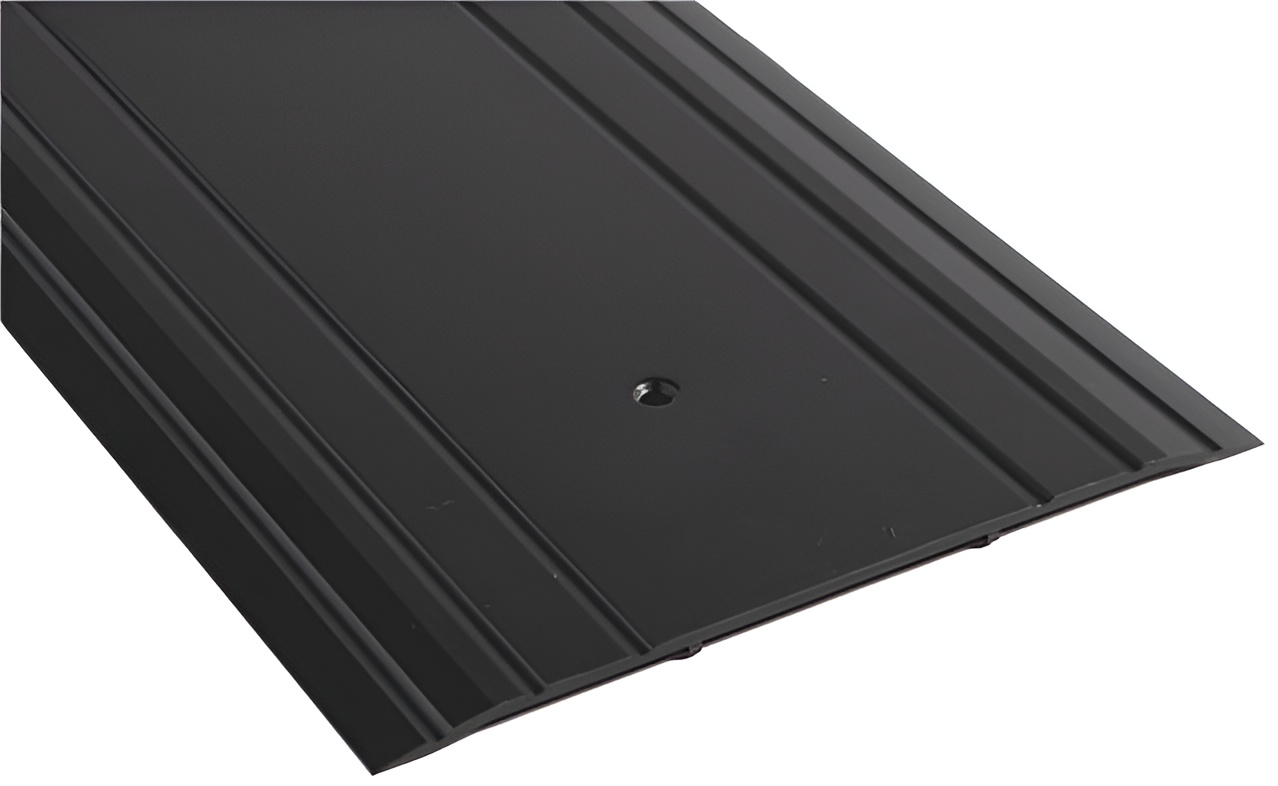

NGP 913DKB 72" DKB-finish Aluminum Saddle Threshold is designed to provide durability and accessibility for commercial restroom applications. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold ensures strength and longevity. Measuring 9 inches wide and 1/4 inch tall, it features a fluted top that not only enhances its aesthetic appeal but also provides a non-slip surface for safety. This threshold is BHMA certified to ANSI/BHMA A156.21, having successfully passed the rigorous 1,000 lb. load test, making it a reliable choice for high-traffic areas. Weighing just 1.41 lbs./ft., it is lightweight yet sturdy enough for practical use. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws for easy installation. The dark bronze finish adds a sleek touch to any restroom decor, while its ADA compliance ensures barrier-free accessibility. This product meets the standards set by the ICC/ANSI A117.1, making it suitable for a variety of building requirements. Whether you're a contractor or a knowledgeable homeowner, the NGP 913DKB is an essential addition to your commercial restroom partition hardware selection, combining functionality and style seamlessly.
Attributes
Alternate Codes: 913DKB 72IN, 913DKB72IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 9" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 72.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 913
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.41 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 9"
