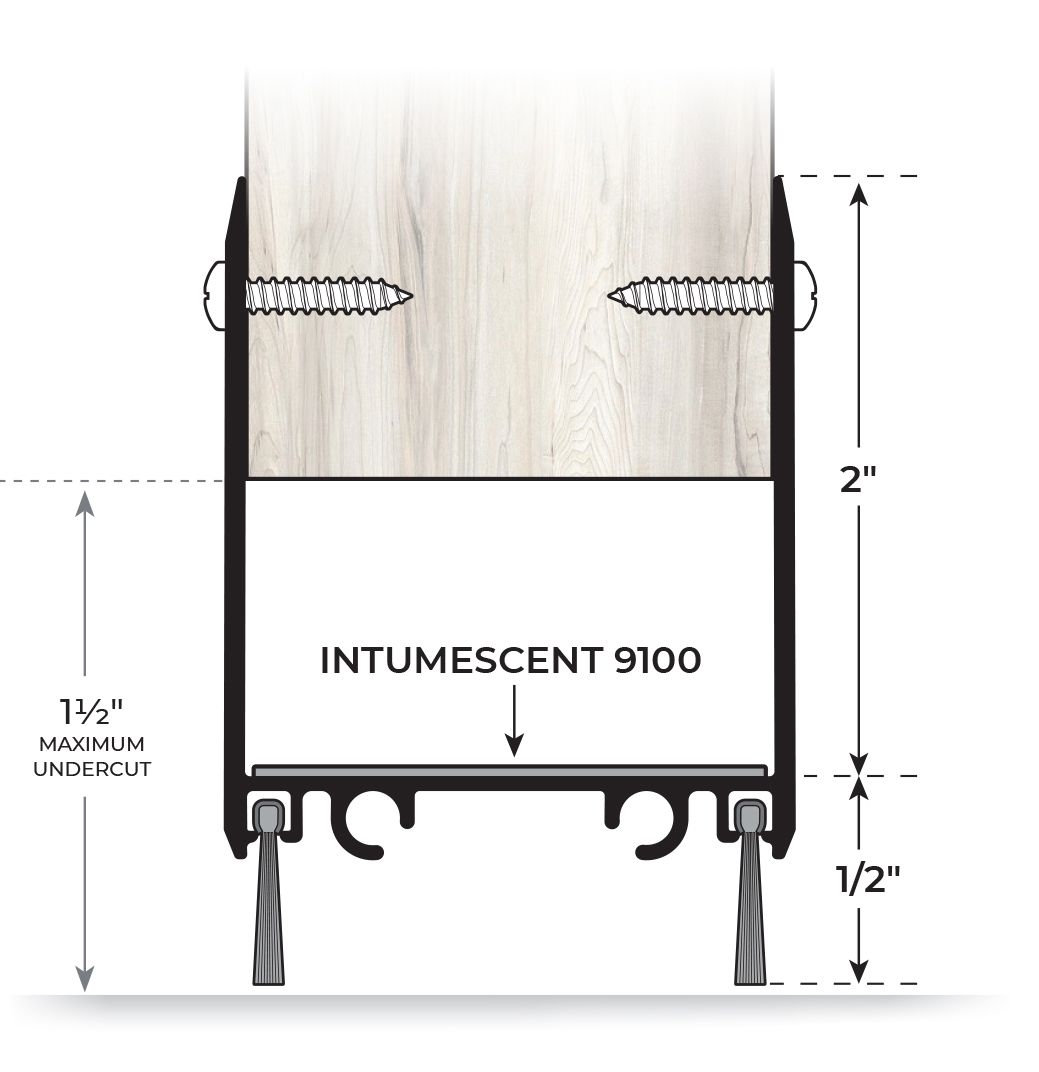

NGP 9245WHDKB 48" Intumescent Door Shoe with Nylon Brush offers a reliable solution for excessive fire door bottom undercuts, accommodating gaps up to 1-1/2" while ensuring a fire rating of up to 45 minutes. Crafted from durable Aluminum Alloy 6063 with T5 temper and enhanced with nylon brush bristles, this door shoe effectively restricts the passage of smoke and provides exceptional abrasion resistance, flexibility, and memory. Designed to withstand extreme conditions, it operates efficiently within a temperature range of -70°F to 425°F, making it suitable for various environments. The dark bronze/black anodized finish not only adds a touch of elegance but also enhances its moisture-resistant capabilities. This non-handed door shoe includes slotted screw holes for easy adjustment and comes with #6 x 3/4" stainless steel fasteners for secure installation. NGP 9245WHDKB is UL certified for use on both wood and hollow metal fire doors, ensuring compliance with NFPA 80, NFPA 252, and IBC standards in both the U.S. and Canada. Available in both 36" and 48" lengths, it can be easily cut down in the field to meet specific needs.
48" Intumescent Door Shoe with Nylon Brush
Color: Nylon Brush is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Fire Rated: Flame Resistant
Handing: Non-Handed
Length: 48.0"
Material: Synthetic Polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent Abrasion Resistance, Flexibility and Memory
Standard-0: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/clearances measuring up to 1-1/2".
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/ clearances measuring up to 1-1/2".
Temperature Range: Temperature Range -70°F to 425°F
UL Certified: UL Certified for Door Bottom Gaps — Measuring up to 1-1/2"
