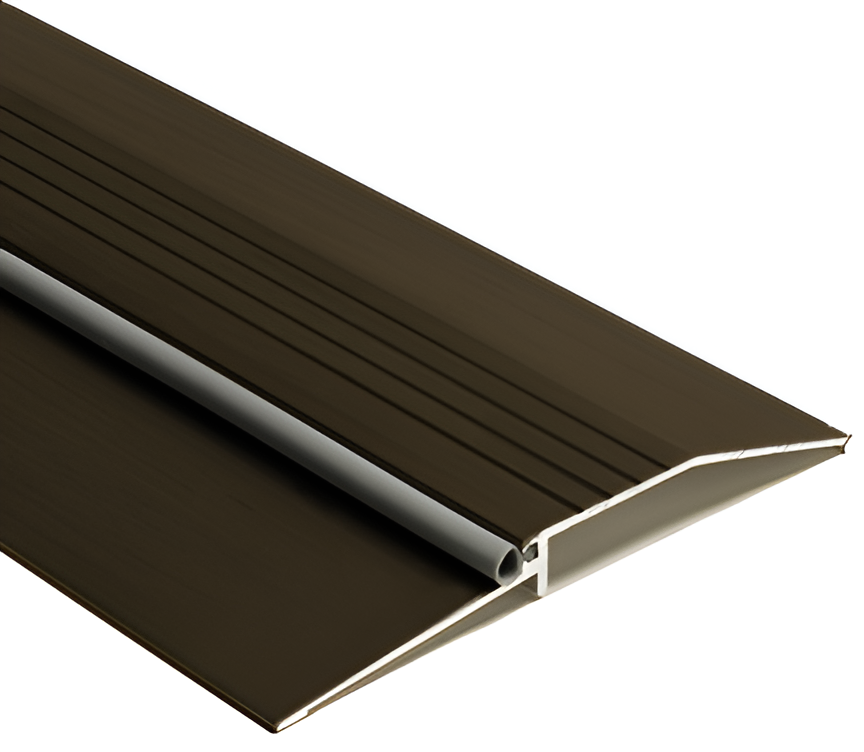

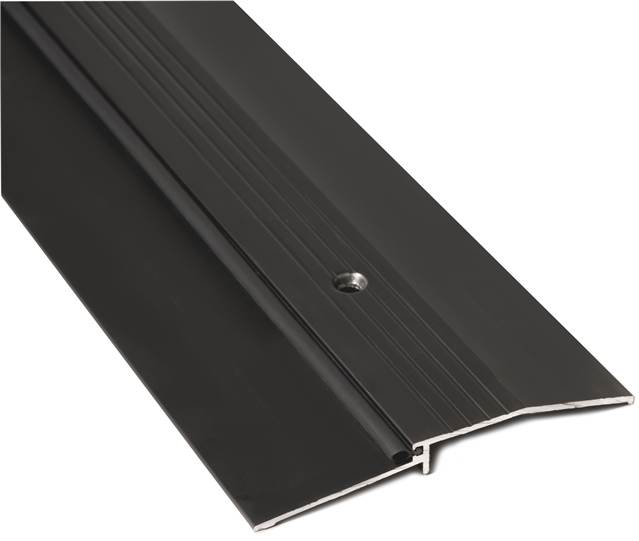

NGP 950NDKB 36" ADA Compliant DKB-finish Bumper Threshold offers a perfect blend of functionality and compliance. Constructed from durable aluminum alloy 6063 with T5 temper, this threshold measures 5" wide and stands 1/2" tall, making it an excellent choice for accessibility in commercial spaces. Its smooth top design is specifically engineered for compatibility with automatic door bottoms, ensuring seamless operation. The dark bronze finish not only enhances aesthetic appeal but also adds a layer of protection against the elements. Weighing just 0.50 lbs./ft., this threshold is lightweight yet robust. Assembly is straightforward with the included #10 x 1-1/2" FH zinc-plated wood screws, ensuring a secure installation. This product is ADA compliant, meeting the rigorous standards of the ADA Standard for Accessible Design and ICC/ANSI A117.1, making it ideal for barrier-free access. Additionally, it is certified by UL for both fire door applications and positive pressure standards, complying with NFPA guidelines. With air infiltration tested to ASTM E283, the NGP 950NDKB ensures energy efficiency and reliability. Upgrade your restroom partitions with this essential hardware that prioritizes safety and accessibility.
Attributes
Alternate Codes: 950NDKB 36IN, 950NDKB36IN
Application: Excellent for use with automatic door bottoms
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, ADA, ANSI, ASTM E283, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 5" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 36.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 950N
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical Wall Thickness: .078"
Weight: Weight: .50 lbs./ft.
Width: 5"
