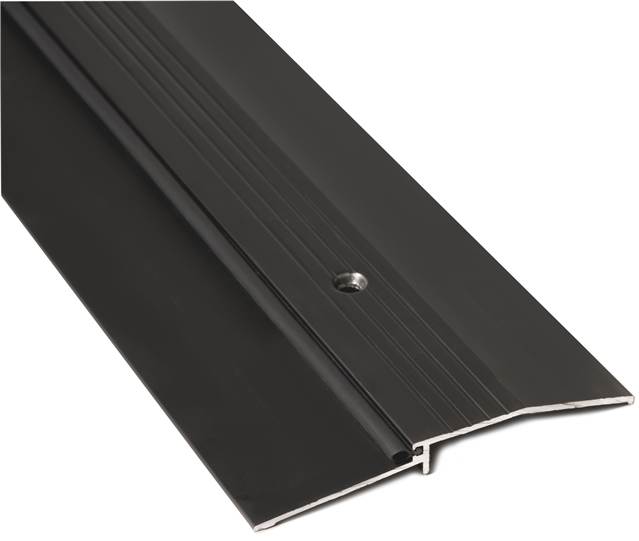

NGP 950NDKB 48" ADA Compliant DKB-finish Bumper Threshold provides a robust and efficient solution for ensuring accessibility and safety in commercial spaces. Crafted from durable aluminum alloy 6063 with T5 temper, this threshold measures 5" wide and 1/2" tall, featuring a smooth top that is ideal for seamless integration with automatic door bottoms. Weighing just 0.50 lbs. per foot, the NGP 950NDKB is both lightweight and sturdy, making installation straightforward. It comes furnished with #10 x 1-1/2" FH zinc plated wood screws, ensuring a secure fit. The elegant dark bronze finish not only enhances aesthetics but also provides durability against wear and tear. Designed to meet ADA compliance standards, this barrier-free threshold adheres to the requirements set forth by the ADA Standard for Accessible Design as well as ICC/ANSI A117.1. Additionally, it is certified by UL for use with fire-rated doors, ensuring safety in emergency situations. This threshold has been rigorously tested for air infiltration, further solidifying its effectiveness in maintaining energy efficiency. Choose the NGP 950NDKB for a reliable, compliant, and stylish entry solution that enhances accessibility in any commercial restroom environment.
Attributes
Alternate Codes: 950NDKB 48IN, 950NDKB48IN
Application: Excellent for use with automatic door bottoms
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, ADA, ANSI, ASTM E283, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 5" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 950N
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical Wall Thickness: .078"
Weight: Weight: .50 lbs./ft.
Width: 5"
