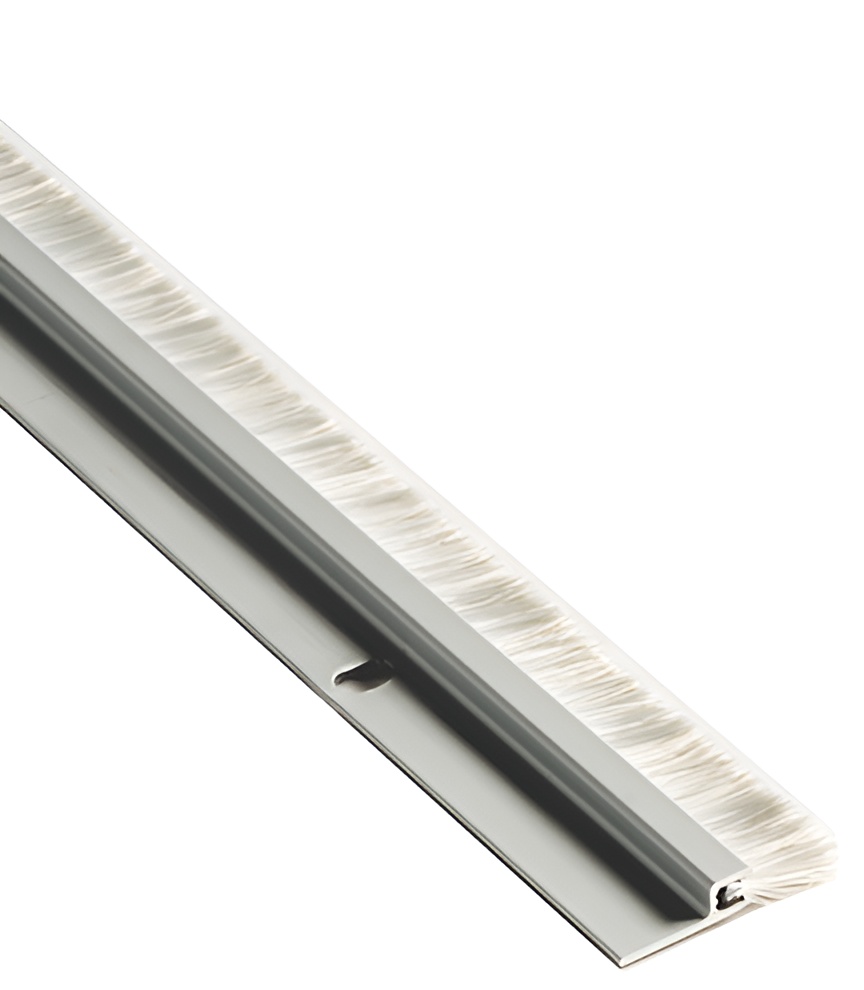

NGP 9605A (SET) 60" Anodized Aluminum Astragal with High Temperature Nylon Brush Plus Seal is engineered for durability and superior performance in commercial restroom applications. Constructed from high-quality aluminum alloy 6063 with T5 temper, this astragal is designed to withstand temperature extremes ranging from -70°F to 425°F, making it ideal for various environments. The premium-grade nylon brush seal provides excellent abrasion resistance and flexibility, ensuring a reliable barrier against air infiltration while maintaining its shape over time. This product is moisture resistant and effectively retains insecticides, enhancing the hygiene of your restroom spaces. Certified by BHMA to meet ANSI/BHMA A156.22 performance tests for heat and cold, the NGP 9605A meets vital safety standards including IBC, NFPA 80, and NFPA 105, making it a trusted choice for fire-rated doors. It's important to note that while this astragal enhances fire door functionality, it should not replace any fire label requirements set by door manufacturers. Each set includes two pieces, complete with #6 x 3/4" stainless steel sheet metal screws for easy installation, and the slotted screw holes allow for adjustment. Experience unmatched quality and protection with the NGP 9605A astragal, ensuring your restroom partitions remain efficient and secure.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon brush plus is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Fire Rated: IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"
Length: 60.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
