NGP 99NWHDKB 60" DKB-finish Aluminum Extended Door Shoe with Nylon Brush and Neoprene Inserts offers exceptional durability and functionality for your commercial restroom partitions. Constructed from high-quality Aluminum Alloy 6063 with a T5 temper, this extended door shoe is designed to withstand the rigors of daily use. Its synthetic EPDM rubber, integrated into a polypropylene thermoplastic matrix, ensures remarkable abrasion resistance and tensile strength while maintaining memory for reliable performance. This product excels in various environmental conditions, boasting flame resistance and moisture resistance. With a temperature range from -70°F to 275°F, it adapts seamlessly to fluctuating climates. Certified by BHMA to ANSI/BHMA A156.22 performance tests, it meets stringent requirements for both heat and cold, making it a dependable choice for any facility. The sleek dark bronze finish, combined with a black nylon brush, not only enhances aesthetic appeal but also promotes effective sealing against drafts and moisture. The door shoe is furnished with #6 x 3/4" stainless steel SMS fasteners, ensuring a secure installation. End caps are available separately for a complete solution. Elevate your restroom partition systems with the reliability and quality of NGP’s 99NWHDKB door shoe.

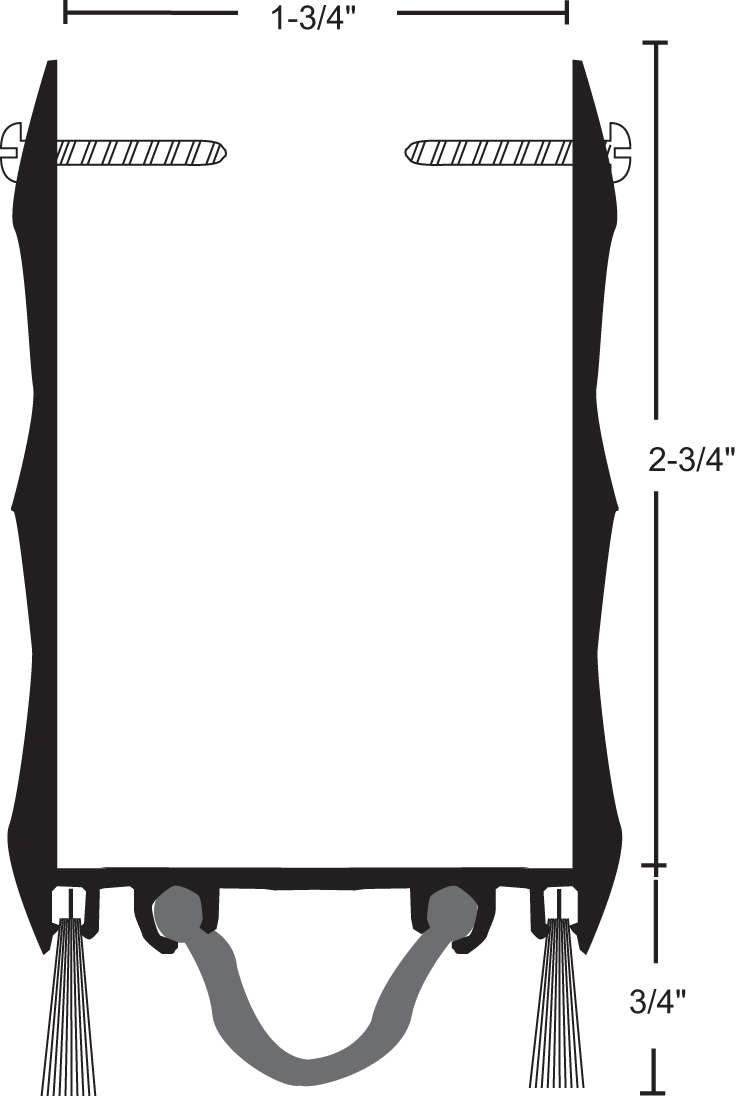

60" DKB-finish Aluminum Extended Door Shoe with Nylon Brush and Neoprene Inserts
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black, Nylon Brush is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 60.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -70°F to 275°F
