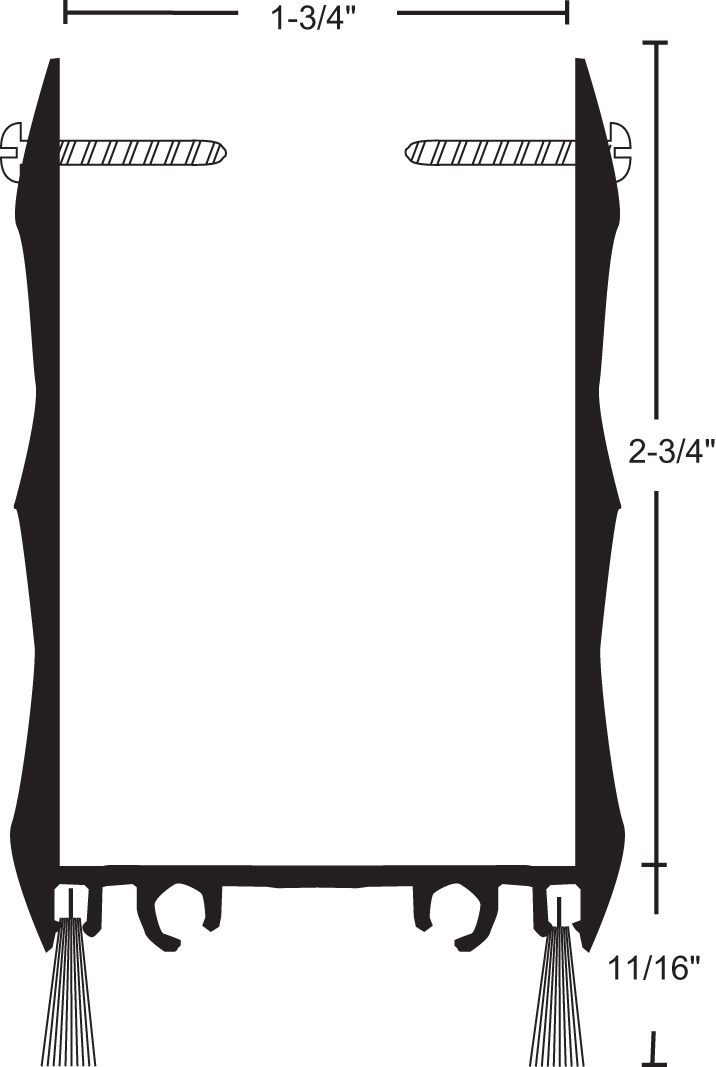

NGP 99WHDKB 84" DKB-finish Aluminum Extended Door Shoe with Nylon Brush Insert is designed for superior performance in commercial restroom environments. Constructed from durable aluminum alloy 6063 with a T5 temper, this door shoe provides excellent resistance to abrasion and ensures flexibility and memory retention, making it a reliable choice for high-traffic areas. The nylon brush insert, featuring a sleek black color, offers effective sealing, while the dark bronze finish enhances aesthetic appeal. With a temperature range of -70°F to 425°F, it can withstand extreme conditions. This door shoe is moisture resistant, making it ideal for restroom applications, although it is not effective against water penetration. NGP’s commitment to quality is evident as this product is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold. Fasteners are included, with #6 x 3/4" stainless steel SMS provided for easy installation. End caps are available separately for a complete setup. Whether you’re outfitting a new facility or upgrading existing restroom partitions, the NGP 99WHDKB extended door shoe combines durability with functionality, ensuring long-lasting performance in any commercial setting.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Nylon brush is black
Fasteners: #6 x 3/4" stainless steel SMS furnished
Finish: Dark bronze finish
Length: 84.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
