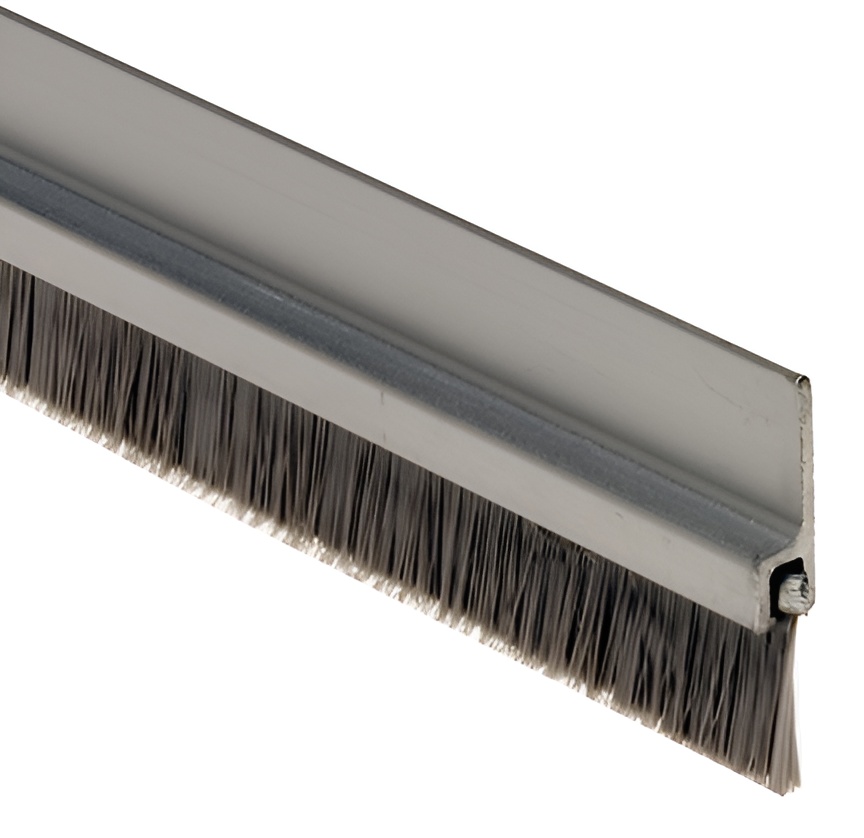

NGP A605A 84" Anodized Aluminum Nylon Brush Seal or Sweep is engineered for exceptional performance in commercial restroom applications. Constructed from durable aluminum alloy 6063 with a T5 temper, this brush seal combines strength and flexibility, ensuring long-lasting use. The synthetic polymer, polyamide, offers excellent abrasion resistance and memory, making it perfect for high-traffic environments. This product is moisture resistant and maintains its integrity across a broad temperature range from -70°F to 425°F, providing reliable functionality in varying conditions. The nylon brush, presented in a sleek gray color, effectively retains insecticides, contributing to a cleaner restroom environment. Installation is straightforward, thanks to the included #6 x 3/4" stainless steel sheet metal screws, which are furnished for convenience. The slotted screw holes allow for easy adjustments, ensuring a perfect fit every time. NGP A605A is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring compliance with high industry standards. With its anodized aluminum finish, this brush seal not only performs efficiently but also adds a polished look to your restroom partitions. For building professionals and discerning homeowners, the NGP A605A is a smart choice for effective sealing and enhanced durability.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Alternate Codes: A605A 84IN, A605A84IN
BHMA: BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A156.22, ANSI, ASTM E283, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, NFPA 105, NFPA 252, NFPA 80, UL 10b, UL 10C, UL 1784
Color: Nylon brush is gray
Commercial Residential: Commercial
Door Application: Thresholds & Seals
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Color: Anodized Aluminum, Clear
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Height: 1-1/16"
Insert Color: Gray
Insert Material: Nylon Brush
Installation: Commercial
Length: 84.0"
Manufacturer: National Guard Products
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Operating Temperatures: -70 to 425F (-56.66 to 218.33C)
Pack Qty: 1
Resistance: Excellent abrasion resistance, flexibility and memory
Restrictions: Fragile
Ro HS: REACH and RoHS compliant
Series: A605
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C (Catgory H), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.22
Subtype: Weatherstrip
Temperature Range: Temperature range -70°F to 425°F
Type: Nylon Brush Seal
Ul Listing: UL10C
Unit of Measure: Each
Weather Rating: Moisture Resistant
