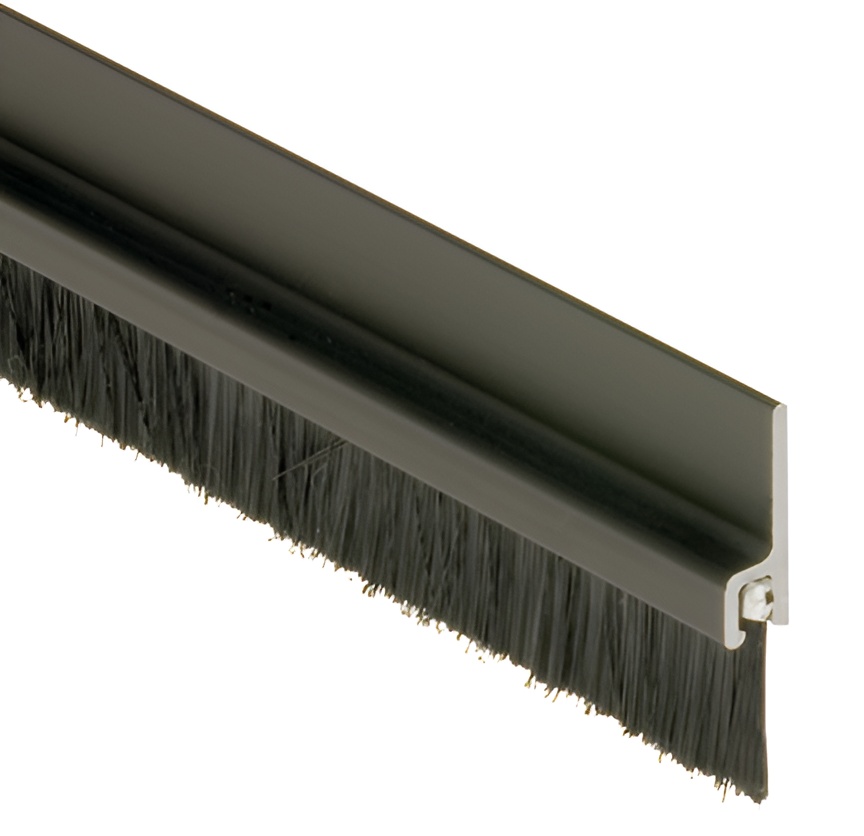

NGP A605DKB 36" DKB-finish Aluminum Nylon Brush Seal or Sweep is an essential solution for enhancing the performance of your commercial restroom partitions. Constructed from durable aluminum alloy 6063 with a T5 temper, this product offers exceptional strength and longevity. The black nylon brush, made from polyamide, provides excellent abrasion resistance, flexibility, and memory, ensuring it retains its shape even with frequent use. With a temperature range of -70°F to 425°F, this brush seal is engineered to withstand extreme conditions, making it ideal for various environments. Its moisture-resistant properties help in maintaining hygiene, while the ability to retain insecticides adds an extra layer of protection. The NGP A605DKB is BHMA certified to ANSI/BHMA A156.22 performance tests, ensuring compliance with rigorous industry standards. The product comes with #6 x 3/4" stainless steel sheet metal screws, and slotted screw holes allow for easy adjustment during installation. Finished in a dark bronze hue, this brush seal not only performs well but also complements the aesthetic of your restroom partitions. Whether you're a building professional or a knowledgeable homeowner, the NGP A605DKB enhances both functionality and appearance in any restroom setting.
Attributes
Alternate Codes: A605DKB 36IN, A605DKB36IN
BHMA: BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A156.22, ANSI, ASTM E283, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, NFPA 105, NFPA 252, NFPA 80, UL 10b, UL 10C, UL 1784
Color: Nylon brush is black
Door Application: Thresholds & Seals
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Dark bronze finish
Finish Color: Dark Bronze Anodized
Fire Rated: Yes
Fire Rating: 180 min, 90 min

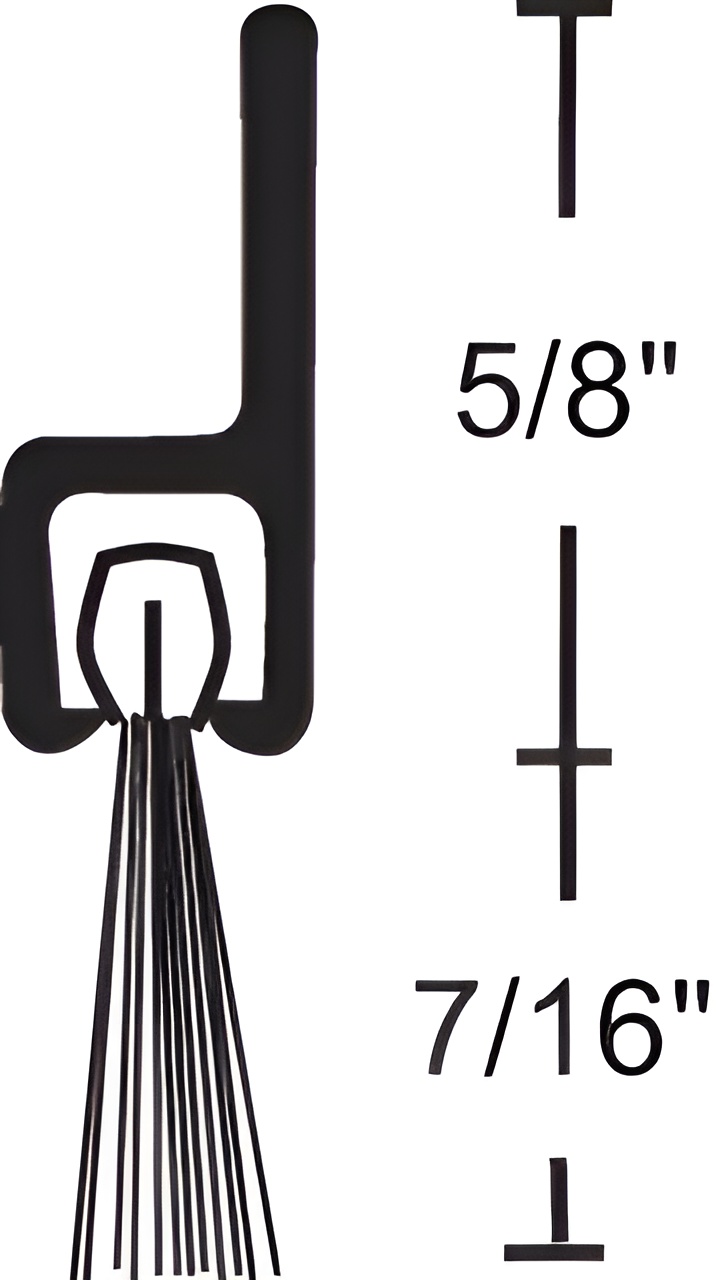

Height: 1-1/16"
Length: 36.0"
Manufacturer: National Guard Products
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Operating Temperatures: -70 to 425F (-56.66 to 218.33C)
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Series: A605
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
Weather Rating: Moisture Resistant
