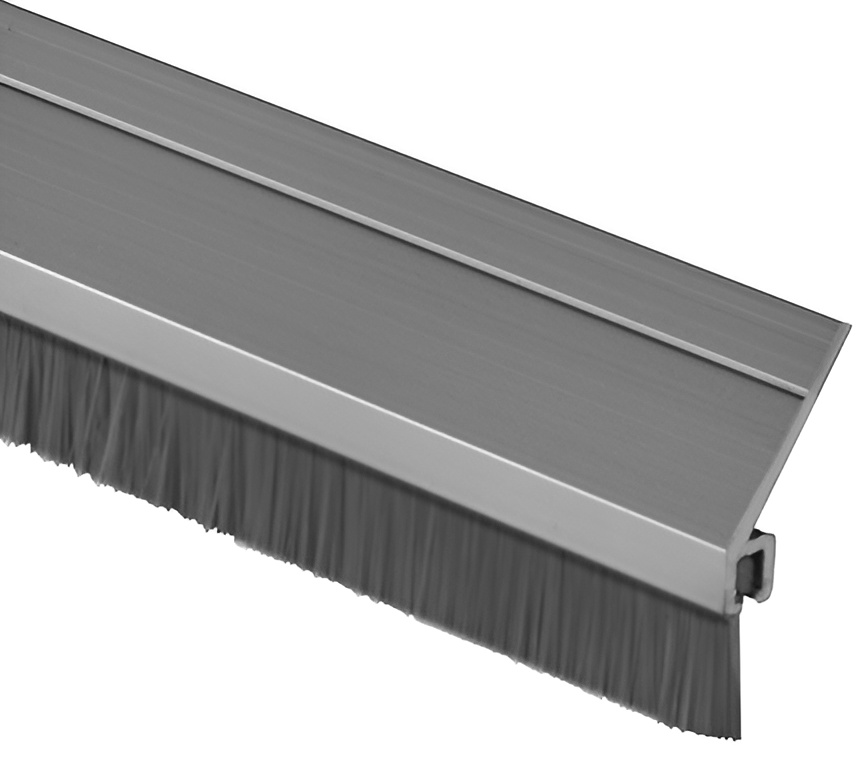

NGP A626A 36" Anodized Aluminum Nylon Brush Seal is engineered for optimal performance in commercial restroom partitions. Constructed from durable aluminum alloy 6063 with a T5 temper, this brush seal offers exceptional strength and reliability. The gray nylon brush, made from synthetic polymer polyamide, provides excellent abrasion resistance, flexibility, and memory, ensuring longevity even in high-traffic environments. Designed to withstand harsh conditions, the NGP A626A operates effectively within a temperature range of -70°F to 425°F and is moisture resistant, making it suitable for various applications. It also retains insecticides well, adding an extra layer of protection. Installation is straightforward, with #6 x 3/4" stainless steel sheet metal screws included and slotted screw holes for easy adjustments. This product is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring compliance with industry standards. Additionally, it meets REACH and RoHS requirements, making it a responsible choice for environmentally conscious projects. The NGP A626A brush seal is a reliable component that enhances the functionality and durability of restroom partitions, making it an excellent choice for building professionals and knowledgeable homeowners alike.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon brush is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: 3 Hours
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Gray
Insert Material: Nylon Brush
Length: 36.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: UL Classified UL10C Category H, ANSI/BHMA Certified A156.22
Subtype: Weatherstrip
Temperature Range: Temperature range -70°F to 425°F
Type: Nylon Brush Seal
