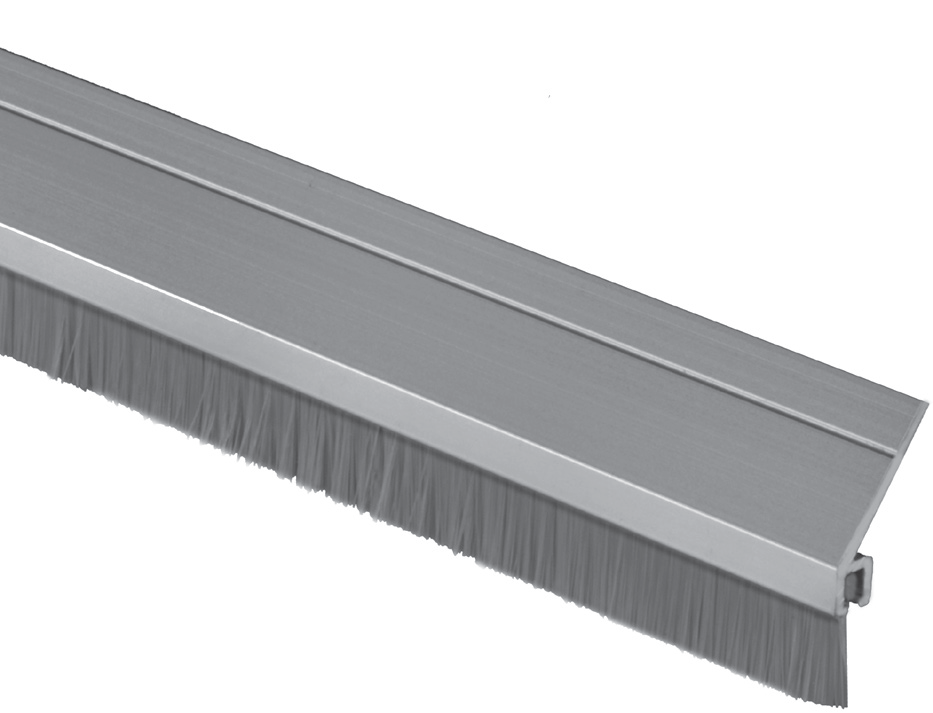

NGP A626A 36IN X 84IN Anodized Aluminum Brush Seal 17ft
Images may not represent actual product and finish

NGP A626A 36IN X 84IN Anodized Aluminum Brush Seal 17ft

Your Price: $93.35
Retail Price:$121.55
Your Savings:$28.20(23%)
NGP A626A 36"x84" anodized aluminum brush seal offers superior moisture resistance and durability for effective door sealing.
Part Number : NGP_A626A36INX84
Availability: 299 In Stock
NGP A626A 36IN X 84IN Anodized Aluminum Brush Seal 17ft

National Guard Products Inc A626A 36IN X 84IN Anodized Aluminum Brush Seal 17ft provides an excellent solution for enhancing door efficiency and security. Constructed from durable aluminum alloy 6063 with a T5 temper, this brush seal is designed to withstand a wide range of temperatures from -70°F to 425°F, making it suitable for various environments. The synthetic polymer nylon brush is gray and offers exceptional abrasion resistance, flexibility, and memory. Certified by BHMA to meet ANSI/BHMA A156.22 performance tests, this seal ensures reliable protection against heat, cold, and air infiltration, while also effectively retaining insecticides. It features moisture resistance and is compliant with REACH and RoHS regulations, enhancing its appeal for eco-conscious consumers. Please note, however, that it is not designed to prevent water penetration. Installation is straightforward, with #6 x 3/4" stainless steel sheet metal screws included, and slotted screw holes allow for easy adjustments. The anodized aluminum finish not only adds a sleek appearance but also contributes to durability. Optional features such as fast attach tape (FATT) and a black brush variant (-BB) provide further customization to meet specific needs. Choose the A626A brush seal for a robust and effective solution to your door sealing needs.

Anodized Aluminum Brush Seal 17ft

Notice: The info below is not item specific.
  • Aluminum alloy 6063, T5 temper
  • Synthetic polymer: Polyamide
  • Excellent abrasion resistance, flexibility and memory
  • Moisture resistant
  • Retains insecticides well
  • Temperature range -70°F to 425°F
  • BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration in most common profiles as indicated by BHMA certified symbol
  • REACH and RoHS compliant
  • Not effective against water penetration
  • #6 x 3/4" stainless steel sheet metal screws furnished
  • Screw holes slotted for adjustment
  • Nylon brush is gray
  • Anodized aluminum
  • Options: FATT - fast attach tape
  • Options: -BB = black brush

Features

  • #6 x 3/4" stainless steel sheet metal screws furnished
  • BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration in most common profiles as indicated by BHMA certified symbol
  • Options: FATT - fast attach tape
  • Temperature range -70°F to 425°F
  • REACH and RoHS compliant
  • Not effective against water penetration
  • Anodized aluminum
  • Nylon brush is gray
  • Retains insecticides well
  • Screw holes slotted for adjustment
  • Options: -BB = black brush
  • Moisture resistant
  • Aluminum alloy 6063, T5 temper
  • Synthetic polymer: Polyamide
  • Excellent abrasion resistance, flexibility and memory

Attributes

Alternate Codes: A626A 17", A626A-17", A626A17", A626A 17FT, A626A-17FT, A626A17FT, A626A 204", A626A-204", A626A204", A626A 204IN, A626A-204IN, A626A204IN, A626A 36IN X 84IN, A626A36INX84IN, NGPA626A 17FT

Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals

Certifications: A156.22, ANSI, ASTM E283, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, NFPA 105, NFPA 252, NFPA 80, UL 10b, UL 10C, UL 1784

Door Application: Thresholds & Seals

Door Height: 84"

Door Width: 36"

Fasteners: #6 x 3/4" SMS

Finish Color: Anodized Aluminum, Clear

Fire Rated: Yes

Fire Rating: 180 min, 90 min

Manufacturer: National Guard Products

Material: Aluminum Alloy, Synthetic Polymer

Operating Temperatures: -70 to 425F (-56.66 to 218.33C)

Series: A626

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Weather Rating: Moisture Resistant

Width: 1-3/16"
