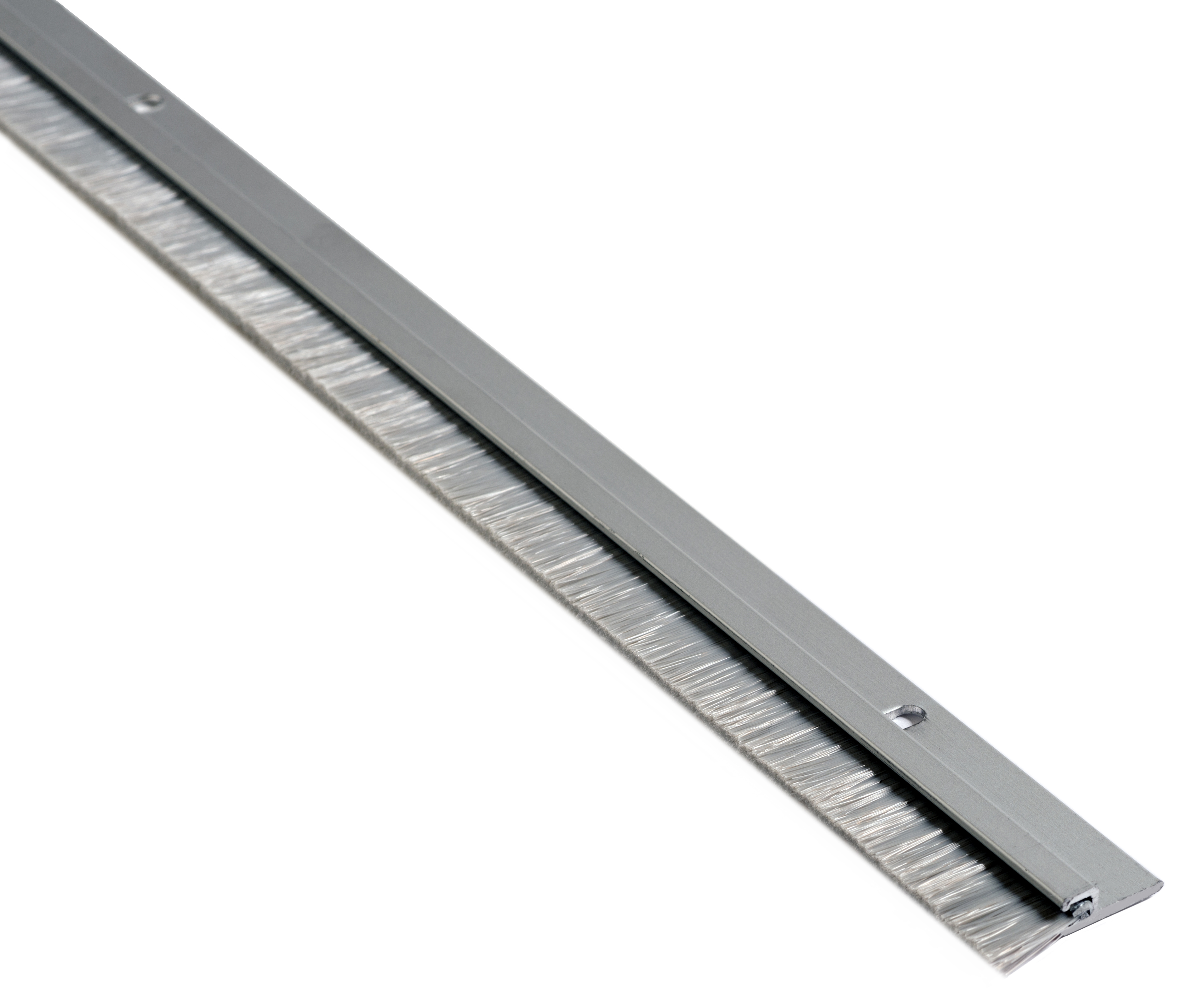

NGP B606A 48" Anodized Aluminum Nylon Brush Seal or Sweep is an essential solution for enhancing the efficiency of your commercial restroom partitions. Constructed from durable aluminum alloy 6063 with a T5 temper, this brush seal combines strength and flexibility, ensuring long-lasting performance. The synthetic polymer material, polyamide, offers excellent abrasion resistance and memory, making it ideal for high-traffic areas. Designed for moisture resistance, the NGP B606A effectively retains insecticides, providing added protection in commercial settings. With a wide temperature range of -70°F to 425°F, it stands up to extreme conditions without compromising quality. Additionally, it is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring reliability and compliance with industry standards. The 48-inch length allows for easy installation, with #6 x 3/4" stainless steel sheet metal screws included for mounting. Slotted screw holes facilitate adjustment for a perfect fit. The stylish gray nylon brush complements the anodized aluminum finish, offering a modern look while effectively sealing gaps. Upgrade your restroom partitions with the NGP B606A, where quality meets functionality.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Alternate Codes: B606A 48IN, B606A48IN
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Color: Nylon brush is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: 3 Hours
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Gray
Insert Material: nylon brush
Length: 48.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Restrictions: Fragile
Ro HS: REACH and RoHS compliant
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C (Catgory H), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.22
Subtype: Weatherstripping
Temperature Range: Temperature range -70°F to 425°F
Type: Door Bottom Sweep
