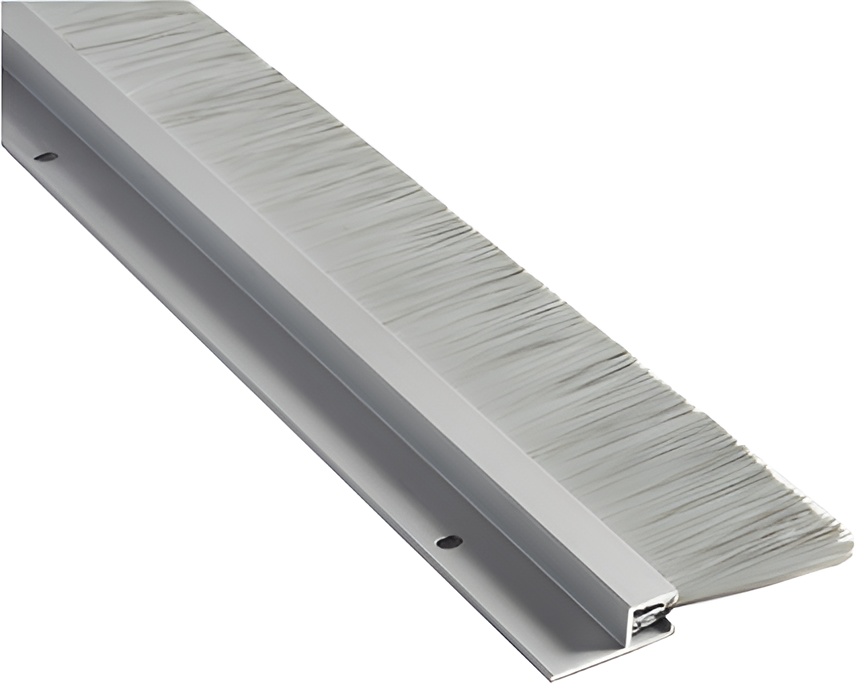

NGP G610A 48" Anodized Aluminum Nylon Brush Seal or Sweep delivers superior performance for smoke and draft control applications. Constructed from durable aluminum alloy 6063 with a T5 temper, this product combines strength and flexibility, ensuring it can withstand rigorous use. The gray nylon brush, made from synthetic polymer polyamide, offers excellent abrasion resistance, memory, and moisture resistance, making it an ideal choice for commercial settings. Designed for a temperature range of -70°F to 425°F, the G610A is certified by UL for use on hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, adhering to rigorous safety standards outlined by NFPA 80 and NFPA 252. It features slotted screw holes for easy installation and adjustment, with #6 x 3/4" stainless steel sheet metal screws included for added convenience. While the G610A excels in smoke and draft control, it is important to note that it is not effective against water penetration. With its robust construction and compliance with REACH and RoHS standards, this door sweep is an excellent choice for building professionals looking to enhance the functionality and safety of restroom partitions.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Application: Door Sweep application is Category H Smoke & Draft Control
Color: Nylon brush is gray
Commercial Residential: Commercial
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: 3 Hours
Fire Rating: 3 Hours
Installation: Commercial
Length: 48.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Pack Qty: 1
Resistance: Excellent abrasion resistance, flexibility and memory
Restrictions: Fragile
Ro HS: REACH and RoHS compliant
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: SMOKE & DRAFT CONTROL GASKETING. Door Sweep Application only. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Subtype: Weatherstripping
Temperature Range: Temperature range -70°F to 425°F
Type: Weatherization
Ul Listing: UL10C
Unit of Measure: Each
