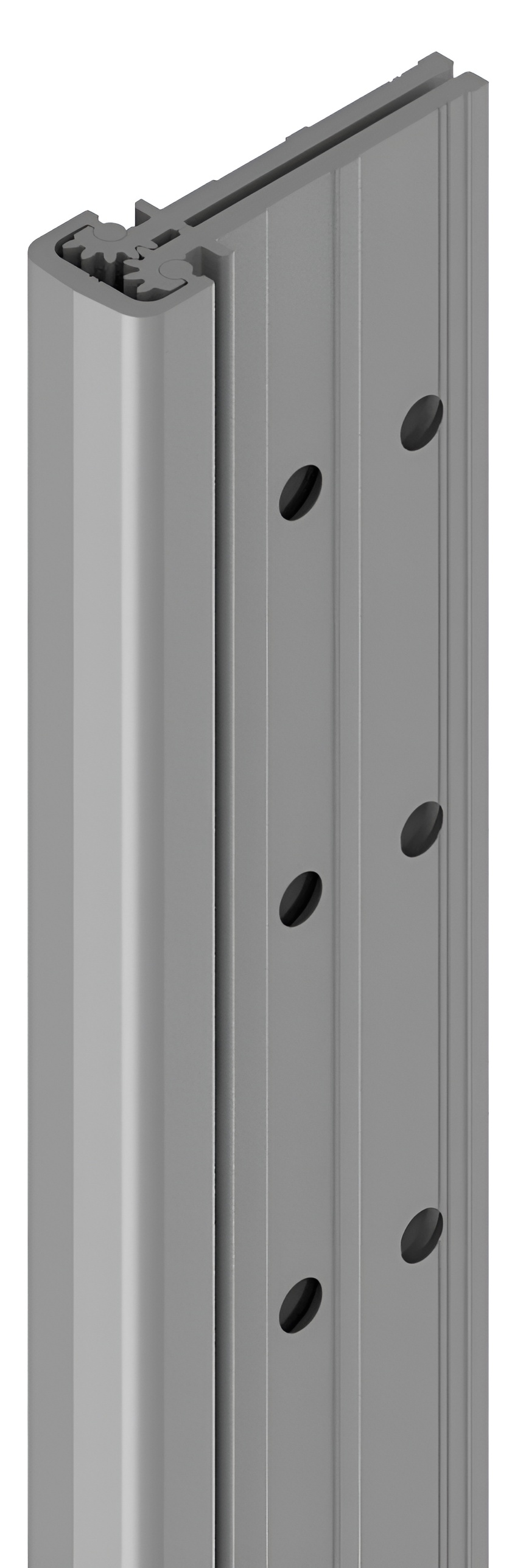

NGP HD1100A 83" Concealed Continuous Geared Hinge is engineered for optimal performance and durability, making it an excellent choice for commercial restroom partitions. Crafted from aluminum alloy 6063-T6 and anodized after machining, this hinge boasts a robust anodized aluminum finish that resists wear and corrosion, ensuring longevity in high-traffic environments. Designed with specially intermeshing gears, the HD1100A features proprietary Teflon-infused, self-lubricating, wear-resistant bearings, which enhance its functionality while minimizing maintenance needs. This hinge requires no reinforcement, except for extremely heavy, high-frequency, or extra-wide doors, simplifying installation and application. With a standard length of 83 inches, the hinge is ANSI/BHMA certified to A156.26, supporting doors up to 600 lbs. and offering a fire rating of up to 90 minutes on hollow metal or wood door leaves. Additionally, the hinge comes with a lifetime warranty of the door opening, providing peace of mind for building professionals and homeowners alike. Please note that while it ships UPS, items measuring 96 inches or more may require additional shipping considerations. For installation, refer to the provided instructions to ensure proper door sizing. The NGP HD1100A is a reliable choice for enhancing the functionality and appearance of any restroom partition.
Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 1-3/4" Doors
Alt Part No: 257160
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Category: Hinges
Fasteners: #12-24 TEK MS
Finish: Anodized aluminum finish
Length: 83"
Material: Aluminum alloy 6063-T6; Anodized after machining
Quickship: Yes
Resistance: Proprietary teflon infused self-lubricating wear resistant bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0
Warranty: Lifetime of the door opening warranty
