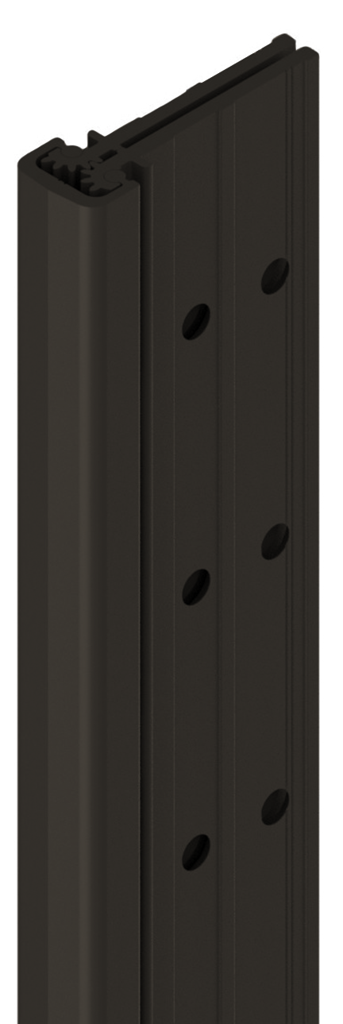

NGP HD1100DKB 95" Concealed Continuous Geared Hinge is the ideal solution for ensuring durability and reliability in high-traffic environments. Crafted from aluminum alloy 6063-T6 and anodized after machining, this hinge showcases a dark bronze anodized finish that enhances its aesthetic appeal while providing superior protection against wear. Designed with specially engineered involute intermeshing gears, this hinge promotes smooth operation, making it perfect for doors up to 1,000 lbs. Thanks to proprietary Teflon-infused, self-lubricating wear-resistant bearings, maintenance is minimal, allowing for seamless functionality over time. Remarkably, no hinge reinforcement is necessary, except for extremely heavy or extra wide doors, streamlining installation and reducing additional costs. The NGP HD1100DKB hinge meets ANSI/BHMA Grade 1 standards and is fire-rated for 90 minutes on hollow metal or wood door leafs up to 4’0". With a lifetime warranty on the door opening, you can trust in its long-lasting performance. Available in standard lengths of 83", 85", 95", and 119", this hinge is versatile enough to fit various applications effectively. Please note that shipping may require common carrier services for this item due to its size.
Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 1-3/4" Doors
Ship via: No UPS - Common Carrier Only
Alt Part No: 257167
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Category: Hinges
Fasteners: #12-24 TEK MS
Finish: Dark bronze anodized finish
Length: 95"
Material: Aluminum alloy 6063-T6; Anodized after machining
Resistance: Proprietary teflon infused self-lubricating wear resistant bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0
Warranty: Lifetime of the door opening warranty
