NGP HD1400A 95" Concealed Continuous Geared Hinge is engineered for durability and performance, making it ideal for commercial restroom applications. Constructed from aluminum alloy 6063-T6 and finished with anodized aluminum, this hinge combines strength with a sleek appearance. The specially designed involute intermeshing gears and proprietary Teflon-infused self-lubricating wear-resistant bearings ensure smooth operation and longevity, eliminating the need for hinge reinforcement in most installations. With a generous length of 95 inches, this hinge supports doors up to 1,000 lbs, making it suitable for various types of heavy doors while maintaining compliance with ANSI/BHMA certification A156.26 Grade 1 standards for continuous hinges. It also features a lifetime warranty for the door opening, ensuring peace of mind for building professionals and homeowners alike. Installation is straightforward, requiring #12-24 TEK MS fasteners, and it accommodates standard door sizes without complication. Keep in mind that shipping may require a common carrier for longer items, and additional charges may apply for oversized products. The NGP HD1400A hinge is a reliable choice for those seeking quality and efficiency in restroom partition hardware.

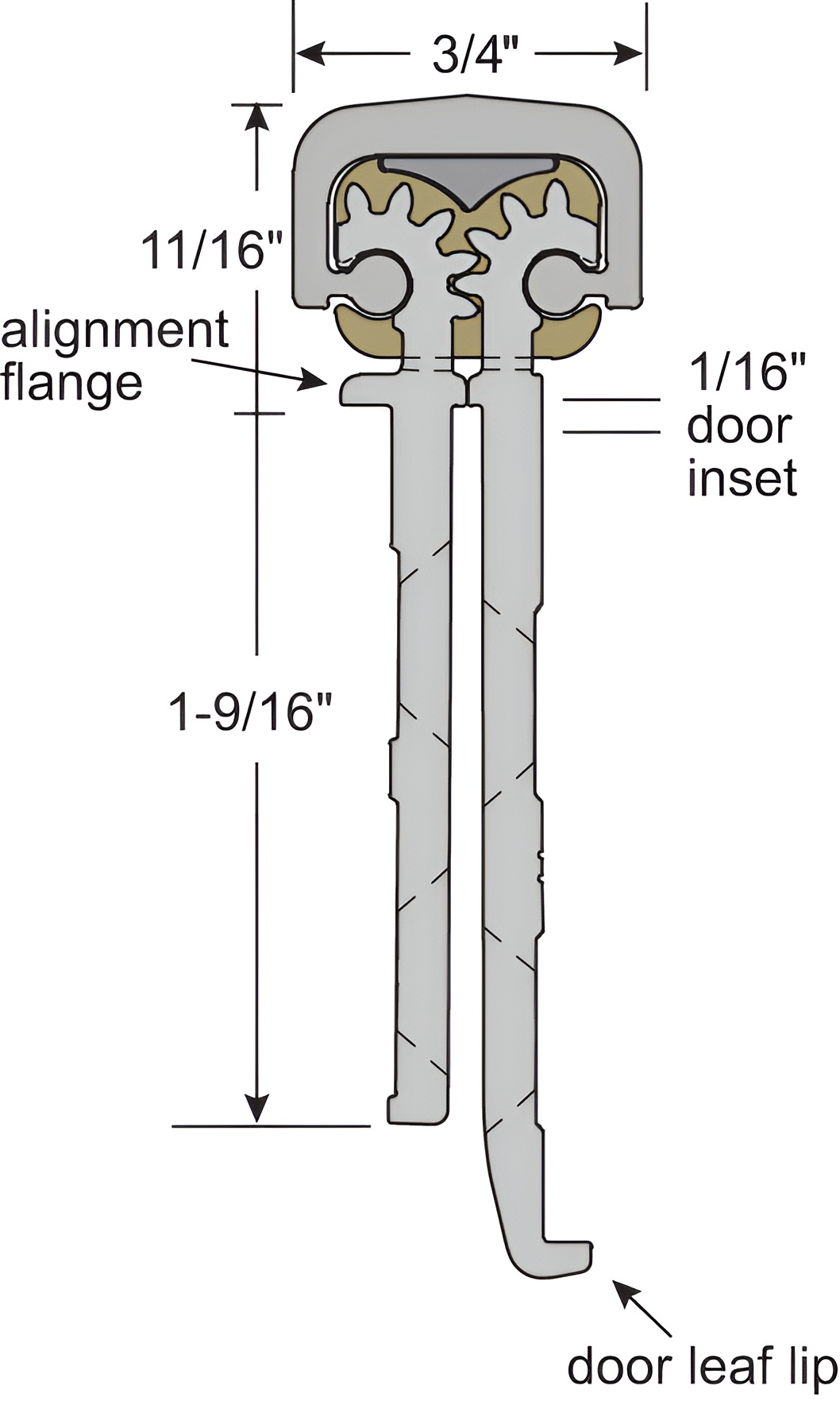

Concealed Continuous Geared Hinge 1/16" Door Inset, for 1-3/4" Doors
Ship via: No UPS - Common Carrier Only
Alt Part No: 257173
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Category: Hinges
Fasteners: #12-24 TEK MS
Finish: Anodized aluminum finish
Length: 95"
Material: Aluminum alloy 6063-T6; Anodized after machining
Resistance: Specially designed involute intermeshing gearsProprietary teflon infused self-lubricating wear resistant bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0
Warranty: Lifetime of the door opening warranty
