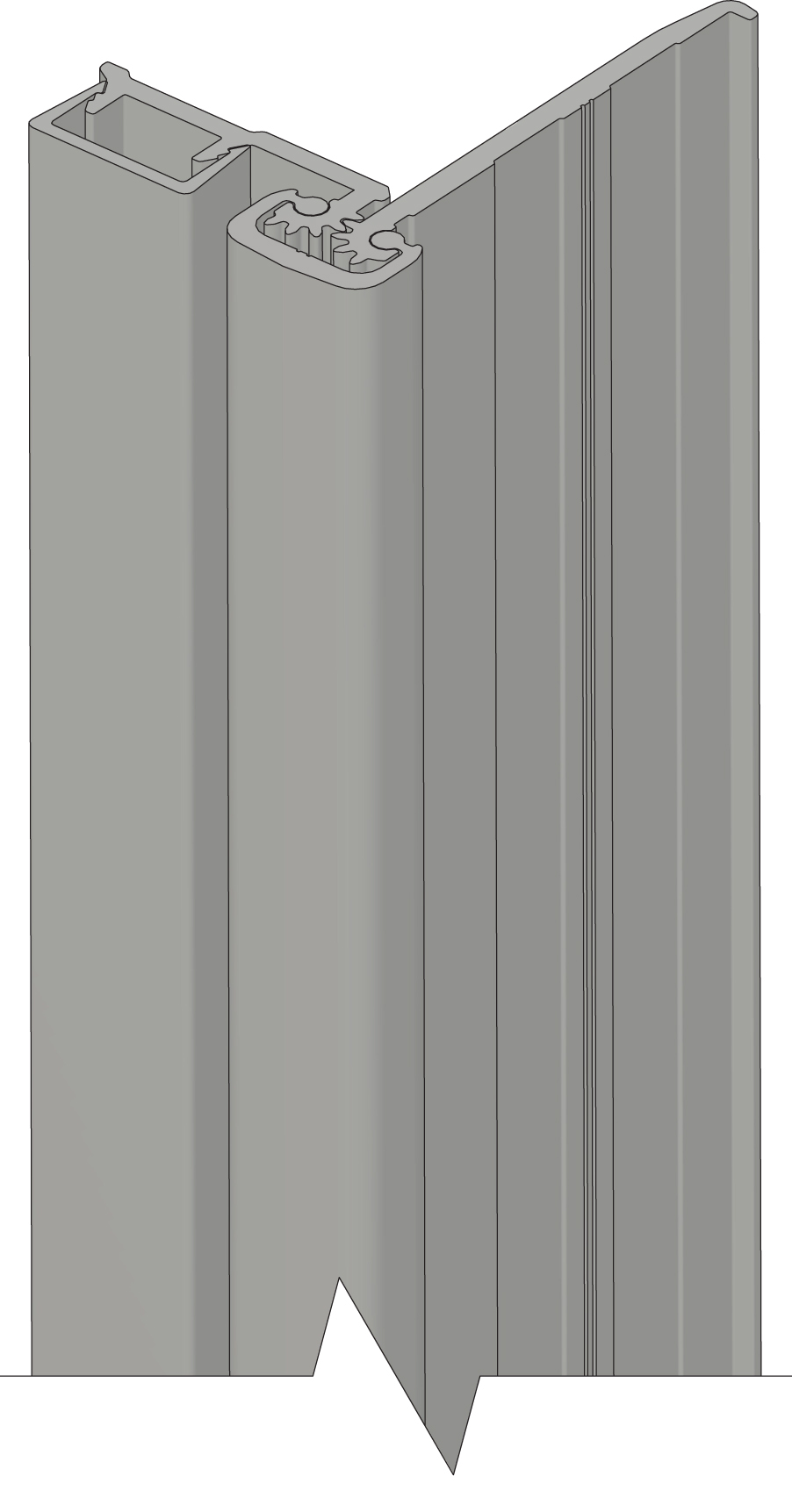

NGP HD5200DKB 83" Half Mortise No Door Inset, Flush Mount For 1-3/4" Doors offers a robust solution for your commercial restroom partition needs. Crafted from high-quality Aluminum Alloy 6063-T6 and anodized after machining, this durable hinge features a striking dark bronze anodized finish that enhances its aesthetic appeal while ensuring long-lasting performance. Designed with specially engineered involute intermeshing gears, the HD5200DKB guarantees smooth operation. Its proprietary Teflon-infused self-lubricating wear-resistant bearings provide exceptional resistance to wear, eliminating the need for hinge reinforcement in most applications. Only extremely heavy, high-frequency, or extra-wide doors may require additional support. This hinge is ANSI/BHMA certified to A156.26 Grade 1, capable of supporting doors weighing up to 600 lbs, and is fire-rated for 90 minutes on hollow metal or wood door leaves up to 4'0" x 7'2". With a lifetime warranty covering the door opening, the NGP HD5200DKB is a reliable choice for high-traffic environments. It's available in standard lengths of 83", 85", 95", and 119", making it versatile for various applications. Make your restroom partitions functional and stylish with this exceptional hardware solution.

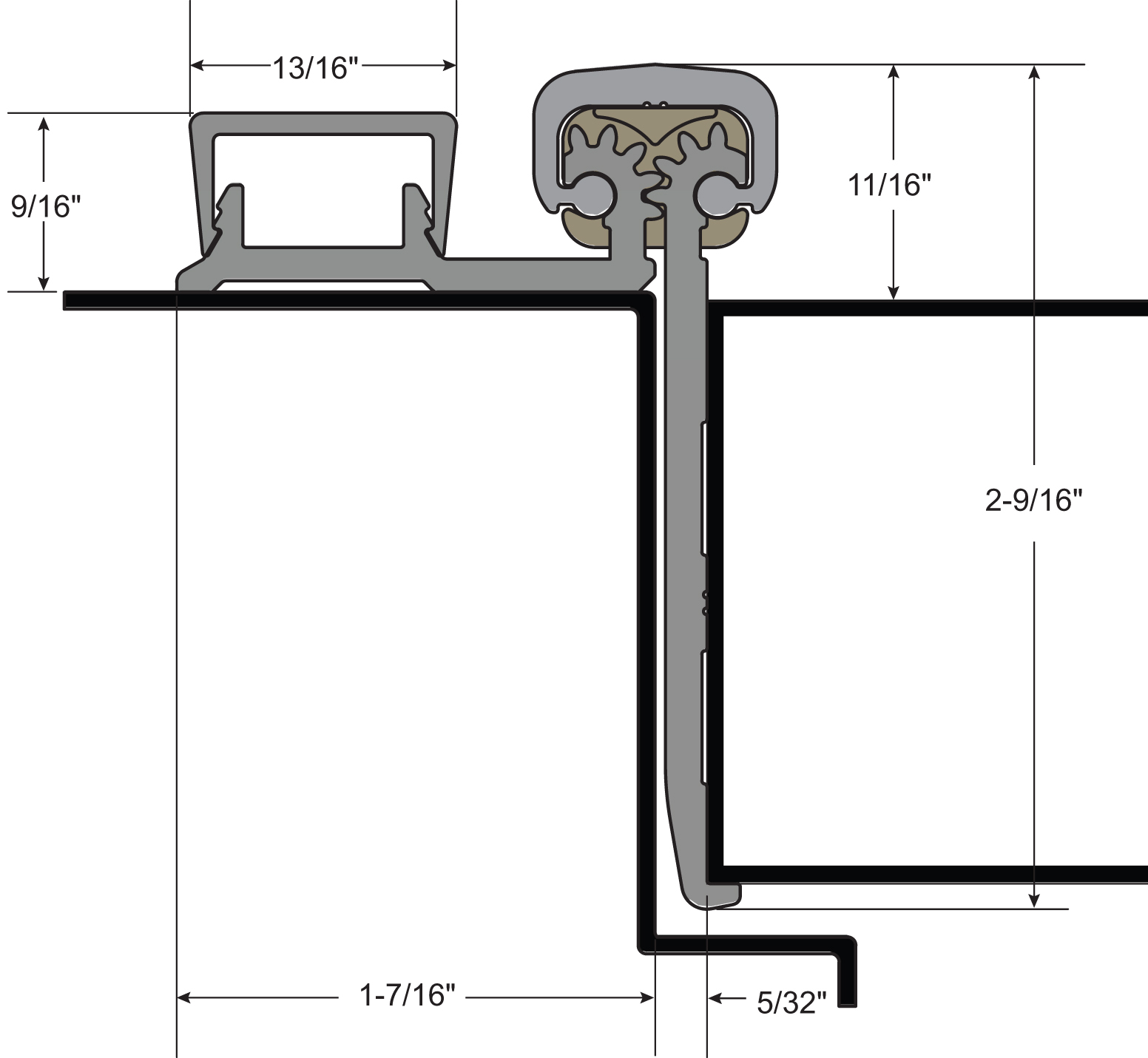

Half Mortise No Door Inset, Flush Mount For 1-3/4" Doors
Application: No hinge reinforcement necessary except on extremely heavy, extremely high-frequency or extra-wide doors
Fasteners: #12-24 TEK MS
Finish: Dark bronze anodized finish
Length: 83"
Material: Aluminum Alloy 6063-T6; Anodized after machining
Resistance: Proprietary Teflon infused self-lubricating wear resistant bearings
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".
Warranty: Lifetime of the door opening warranty
