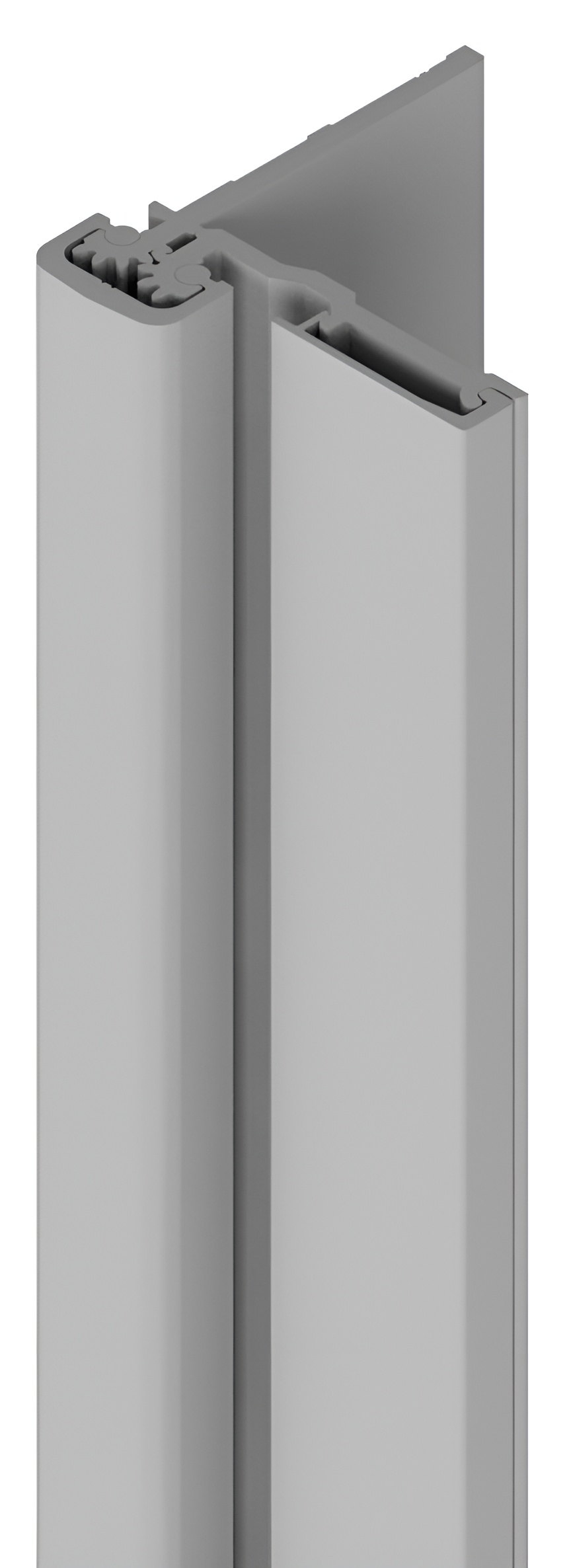

NGP HD5300A 83" Half Surface Continuous Geared Hinge is engineered for durability and efficiency, making it an ideal choice for commercial restroom applications. Constructed from high-quality aluminum alloy 6063-T6 and anodized after machining, this hinge boasts a sleek anodized aluminum finish that not only enhances its appearance but also provides resistance against wear and corrosion. Featuring specially designed involute intermeshing gears, the NGP HD5300A ensures smooth operation with proprietary Teflon-infused self-lubricating, wear-resistant bearings, reducing maintenance needs. This hinge requires no reinforcement except for extremely heavy, high-frequency, or extra-wide doors, simplifying installation and application across various door sizes. With a standard length of 83 inches, it accommodates doors ranging from 1-3/4" to 2-1/4" thick. It meets ANSI/BHMA Grade 1 standards, supporting doors weighing up to 600 lbs, and is fire-rated for 90 minutes on specific door types. The hinge comes with a lifetime warranty for the door opening, ensuring long-lasting performance and peace of mind. Whether for new installations or upgrades, the NGP HD5300A is a reliable solution for achieving seamless door functionality in any commercial restroom environment.
Half Surface Continuous Geared Hinge 3/32" Door Inset for 1-3/4" to 2-1/4" Doors
Alt Part No: 257249
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Category: Hinges
Finish: Anodized aluminum finish
Length: 83"
Material: Aluminum alloy 6063-T6; Anodized after machining
Resistance: Proprietary teflon infused self-lubricating wear resistant bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".
Warranty: Lifetime of the door opening warranty
