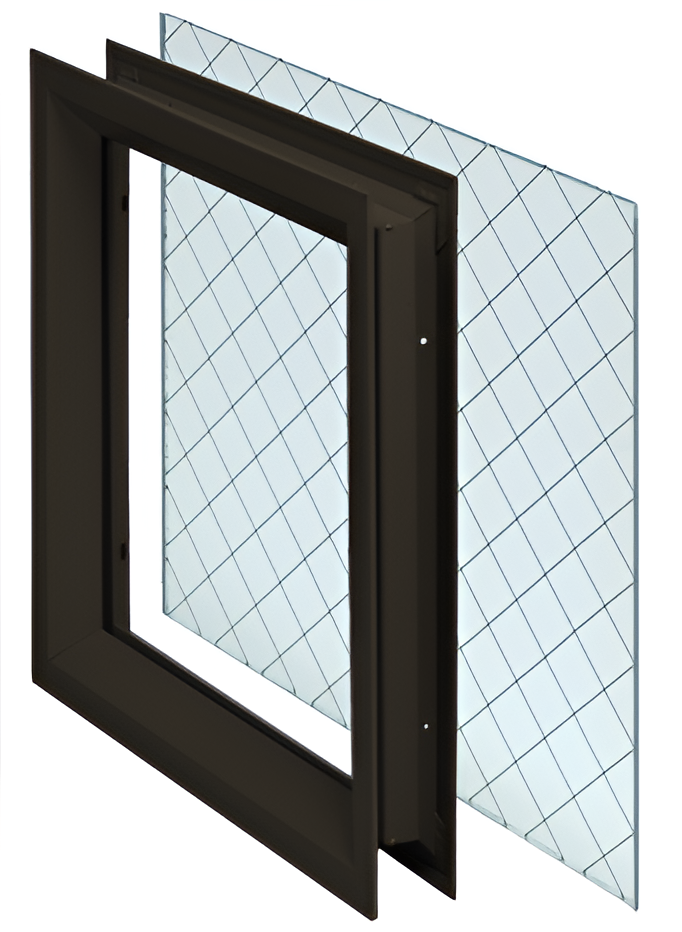

NGP L-FRA100-PRO3-DKB-GT118 5X35 Lite Kit with Fire Rated Glass Glazing Tape, 90 Min, DKB Dark Bronze

National Guard Products Inc L-FRA100-PRO3-DKB-GT118 5X35 Lite Kit is engineered for safety and durability, featuring fire protective safety wired glass and glazing tape. This robust kit is ideal for 1-3/4" thick doors and accommodates glass thicknesses of 3/16", 1/4", or 5/16". Constructed from 18 gauge cold rolled steel, it boasts mitered and welded corners, reinforced with welded clips to enhance structural integrity. The 1/4" (6mm) thick Protect3™ glass, featuring a diamond pattern of electrically welded steel wire mesh, ensures superior impact resistance, maintaining its integrity when fractured or subjected to a hose stream. Certified with a 90-minute fire rating by UL under various standards, this product meets stringent safety and performance requirements. The kit includes closed cell L-GT-118 PVC foam glazing tape for a secure seal, while counter-sunk mounting screw holes and #8 x 1-5/8" Phillips head screws facilitate easy installation. With a weight of 3.6 lbs/sq. ft and an STC 28 rating, this lite kit offers both sound insulation and fire protection. Available in a sleek dark bronze finish, the L-FRA100-PRO3-DKB-GT118 is a reliable choice for enhancing safety in commercial and residential applications.

Lite Kit with Fire Protective Safety Wired Glass and Glazing Tape, Fire Rating 90 Minute, DKB Dark Bronze

Features:

• For 1-3/4" thick doors and 3/16", 1/4" or 5/16" glass
• 18 Gauge cold rolled steel
• Mitered and welded corners
• Welded reinforcing clips at corners
• Counter-sunk mounting screw-holes
• 8 x 1-5/8" Phillips head SMS
• Available in uneven and fractional sizes
• Dark bronze
• Designed for use on 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16"
• 1/4" (6mm) Thick Protect Glass Featuring: 3/4" X 3/4" Diamond pattern electrically welded steel wire mesh
• Heavy duty 7 mil durable safety film applied
• Maintains integrity when fractured or subjected to a hose stream
• Etched with UL classification on each piece
• Weight: 3.6 lbs./sq. ft.
• STC 28 rating
• Fire-Rating Information: Certified by UL to ANSI/UL10B, ANSI/UL10C, CAN/ULC-S104, ULC CAN4-S106
• Impact Safety Rating Information: Meets ANSI Z97.1, class A
• Meets CPSC 16CFR 1201 (category I and II)
• Complies with IBC requirements for use in doors
• Closed cell L-GT-118 PVC foam glazing tape with adhesive both sides
• 3/8" wide x 1/8" thick

Options:

• Torx security screws
• Galvanneal - A40 steel
• Zinc electroplating
• Lead lining - 1/16" thick
• Silicone acoustical seal applied to reduce sound transmission - suffix "STC"
